LCR Register Mounting
The LCR register is usually mounted on the liquid flow
meter, though for fixed installations it can be mounted
up to 1000 wire feet (304.0 meters) away from the meter
if the meter is equipped with an external pulser. The
actual distance depends on the pulser specifications and
the type of wire used to install it. Contact the factory if
your installation requires pulser or RTD cable lengths
greater than 1000 feet.
LCR Mounting Bolt Pattern
The LCR base casting contains eight mounting holes in
an industry standard bolt pattern that allows it to be easily
attached to a number of common meters. All of the holes
are 1/2” deep and will require 1/4 - 20” screws.

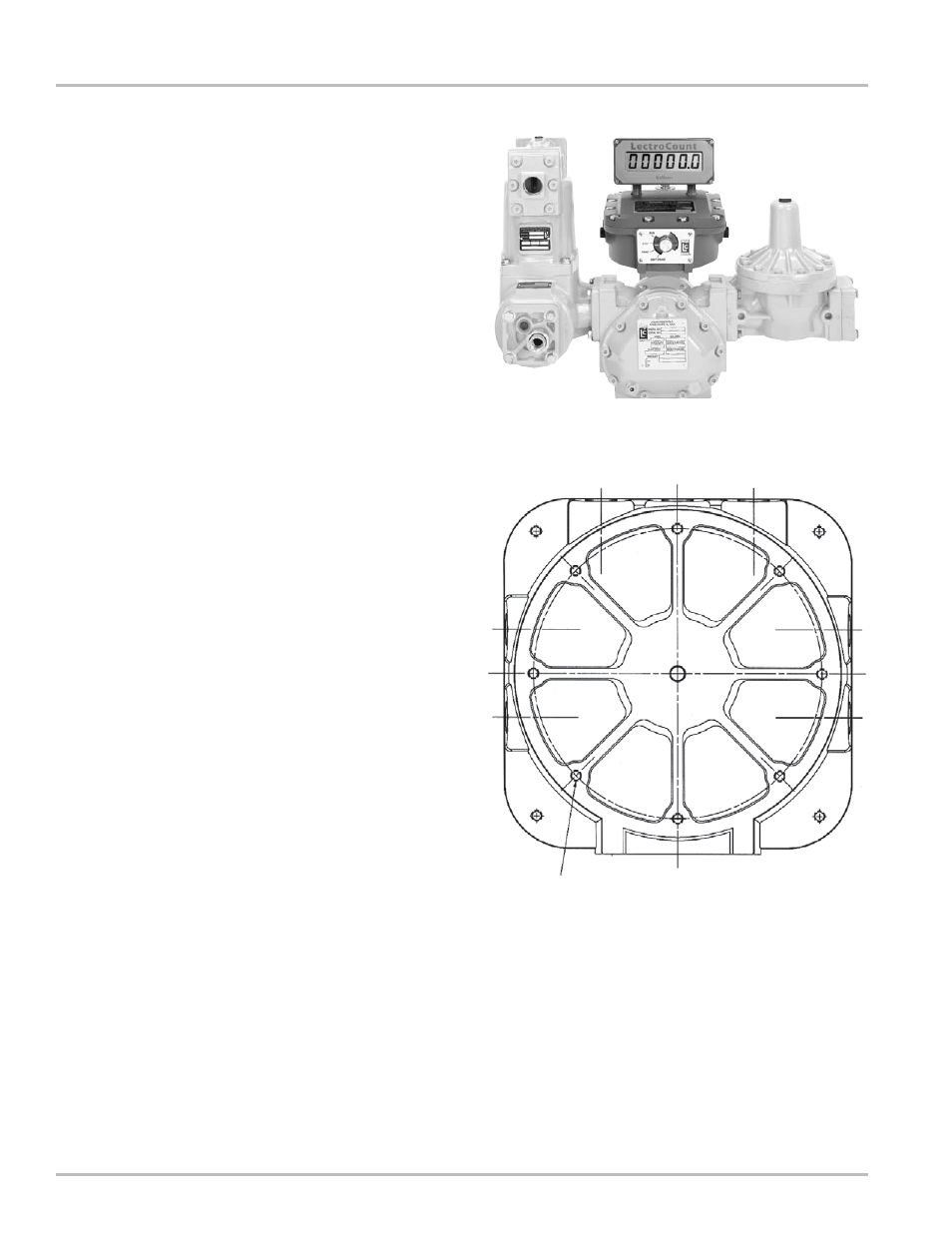

Refer to the drawing below if you will need to fabricate a
mounting bracket for the LCR. Brackets and adapters
are available from Liquid Controls for many common
meters. Installation instructions are packed with the
mounting or adapter kit. When mounting the LCR, leave
the cover assembly fastened to the base to protect the
internal components. As the LCR is placed on top of the
meter, make sure the vertical drive shaft from the meter
is attached to the pulser drive shaft using the kit provided.
Before securely fastening the LCR to the meter or
bracket, make sure that the counter is visible and that
the selector switch can be easily operated.
NOTE : If the LCR will be exposed to the elements before
the installation is complete, make sure that the cover
gasket is in place and that all (12) M8 mounting bolts
and washers are snugly installed. Also, remove all of
the pipe plugs from the LCR’s seven 1/2” NPT conduit
hubs, apply pipe sealant or Teflon tape to the threads,
then re-install the plugs in the ports.
NOTE : When removing/installing cover screws, switch
plate screws, or display cover screws, apply antiseize
compound to the screws upon reassembly to ensure easy
removal at later date.
Mounting Holes:
.250-20 UNC -2B .50 Deep
8 Holes Equally Spaced on a 6.65 Dia. Circle.
