Assembly/Installation

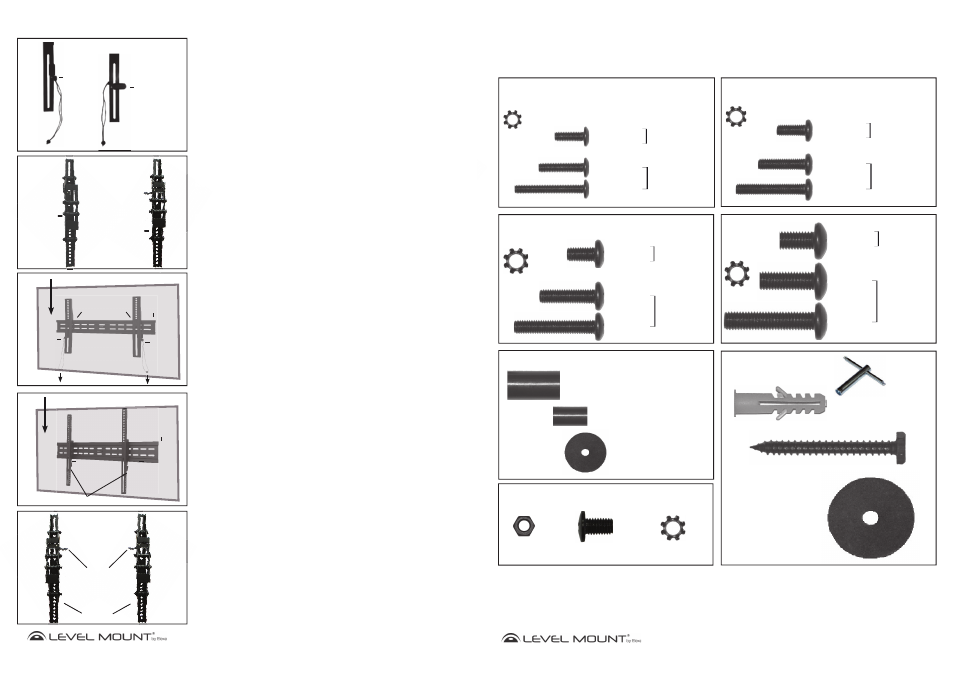

Figure 17A
Fixed Arm
Locked Fixed Arm
Unlocked
Figure 17B
Tilt Arm
Unlocked
Tilt Arm
Locked
Figure 18B
Figure 18A
Wall Plate
Upper Lip
Fixed Arms Hook
Locking Tab
and Cord
Locking Tab
and Cord
Flat Panel TV
Step 5 – Mounting the Flat Panel TV to the Wall Plate
Before mounting the Flat Panel TV to the Wall Plate (which has been secured to
the wall as specified above), first you must unlock the Fixed or Tilt Arms (which
are now attached to the Flat Panel TV). To unlock the Fixed Arms pull the cord up
as shown in Figure 17A. To unlock the Tilt or Cantilever Arms push the Locking
Tab down so the Locking Lever comes up as shown in Figure 17B.
To mount the Flat Panel TV to the Wall Plate, have 2 people lift the Flat Panel TV
with the attached Fixed or Tilt Arms and Extension Arms if needed. Slide the
hooks of the Fixed or Tilt Arms over the top of the upper lip on the Wall Plate
and slide down until the Fixed or Tilt Arms rest firmly on both sides of the Wall
Plate Lip as shown in Figure 18A or 18B. The Fixed or Tilt Arms should be flush
against the Wall Plate.
Lock the Fixed Arms under the bottom lip of the Wall Plate by pulling down on
the cord as shown in Figure 17A and 18A. This should be completed on both
Fixed Arms.
Lock the Tilt Arms under the bottom lip of the Wall Plate by pushing the Locking
Tab up so that the Locking Lever comes down, as shown in Figure 17B and 18B,
over the Wall Plate lip.
Step 6 - Using the Tilt Function
To use the Tilt function of the Arm, gently grasp the Flat Panel TV and pull
forward. When in the desired position use the Locking Lever to secure the
Flat Panel TV in place.
Figure 19
Locking Lever
Tilt Arms
Wall Plate Wall Plate
Upper Lip
Upper Lip
Tilt Arms Tilt Arms
Flat Panel TV Flat Panel TV
Locking Locking
Latch
Latch
Locking Locking
Latch
Latch
F
Tilt Arm
Locked
Tilt Arm
Unlocked
Loc
the co
Fixed
Lo
Til
U
9
ng Lever Locki kin
33
www.levelmount.com
1-888-229-1459
EU: +0044 844 567 2657
UK: 0844 567 2657
©2011 Level Mount - Patents Pending
Bolsa 6
(6) Tornillo hexagonal 75 mm
para madera
(6) Tacos para hormigón
(6) Arandelas
28 mm x Ø7 mm x 1,5 mm
¿Qué hay en la caja?
Bolsa 1
(4) Arandelas de presión M4
(4) Tornillos
Phillips
M4 x 20 mm
(4) Tornillos
Phillips
M4 x 30 mm
Soporte TV con
respaldo hueco
(4) Tornillos
Phillips
M4 x 12 mm
Soporte TV con
respaldo plano
Bolsa 2
(4) Tornillos
Phillips
M5x20 mm
(4) Tornillos
Phillips
M5x30 mm
Soporte TV con
respaldo hueco
(4) Arandelas de presión M5
(4) Tornillos
Phillips
M5x12 mm
Soporte TV con
respaldo plano
Bolsa 3
(4) Tornillos
Phillips
M6x35 mm
(4) Tornillos
Phillips
M6x24 mm
Soporte TV con
respaldo hueco
(4) Tornillos
Phillips
M6x12 mm
Soporte TV con
respaldo plano
Bolsa 7
Tornillos Phillips
para brazos fijos y giratorios
Bolsa 4
(4) Tornillos
Phillips
M8x40 mm
(4) Tornillos
Phillips
M8x25 mm
Soporte TV con
respaldo hueco
Bolsa 5
(4) Separadores
Ø17,5 x Ø8,3 x 22,5 mm
(4) Arandelas
Ø20 x Ø5,5 1,0 mm
(4) Separadores
Ø12,5 x Ø5,5 x 16,5 mm
(1) Llave hexagonal
(4) Arandelas de
presión M6
(4) Tornillos
Phillips
M8x16 mm
Soporte TV con
respaldo plano
(4) Arandelas de
presión M8
* – Para los brazos de extensión disponibles para los Modelos 600 o 900
(8) M8 Arandelas
de presión
(8) M8 Tuercas
(8) M8x15mm
