Digital i/o interface – Impulse PIO-48.PC104 (3701) User Manual
Page 10
© Sealevel Systems, Inc.
- 8 -
PIO-48.PC104 User Manual
Digital I/O Interface
The PIO-48.PC104’s 48 digital I/O channels are accessed via two industry-standard
50-pin header connectors. Each header provides 24 bits of digital I/O divided into
two eight-bit ports and two four bit ports for upper and lower nibble. Each port may
be individually configured via software command as input or output.

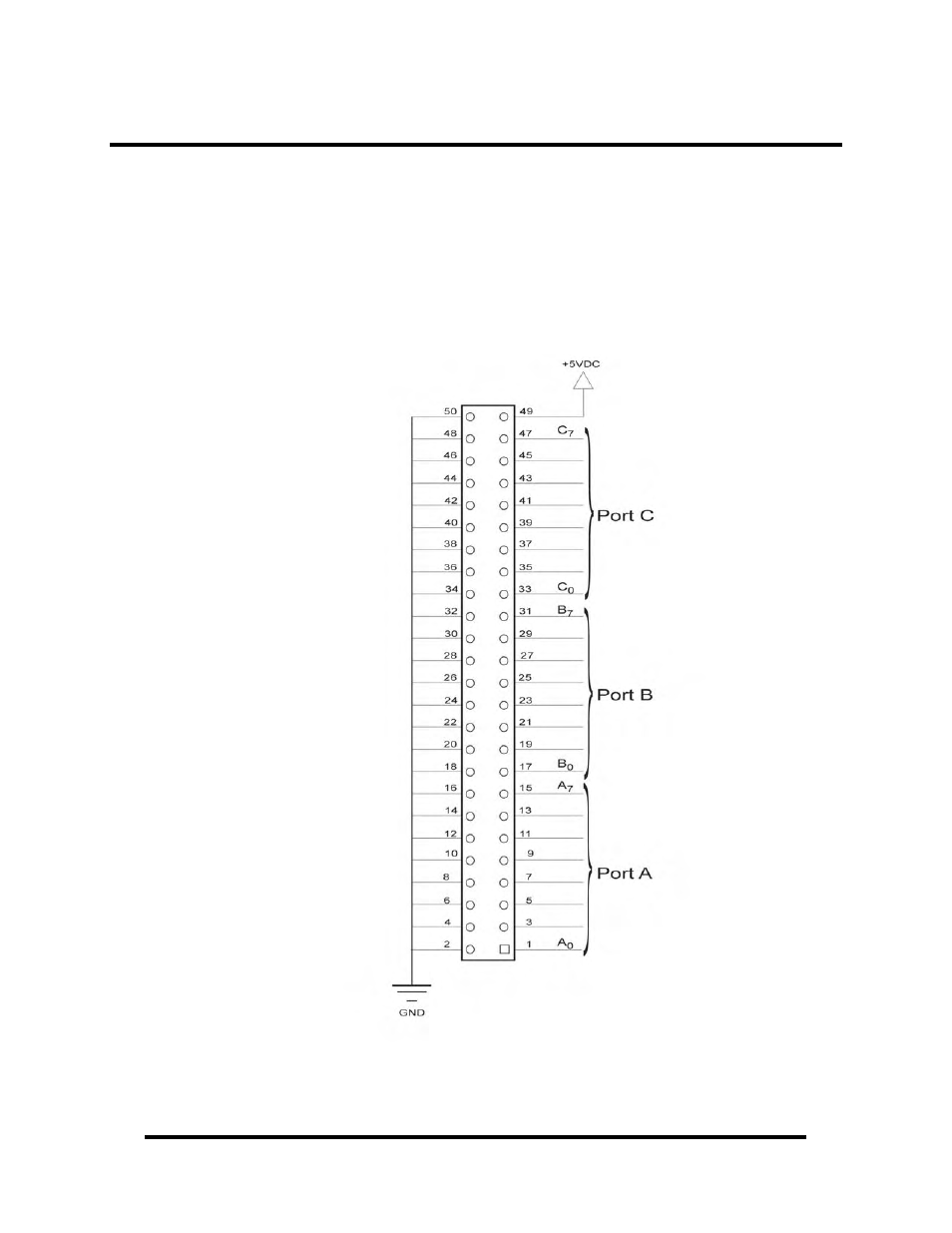

50-pin Header Connectors
Each of the 50-pin connectors has the following pin out which is compatible with a
wide variety of solid state relay racks:
