Controlled Products Systems Group SLIDESMART DCS 10F - Manual (Page 41)

Wiring AC Power
Revision B Power 2-3
W
IRING
AC P
OWER
DANGER
!
CAUTION !

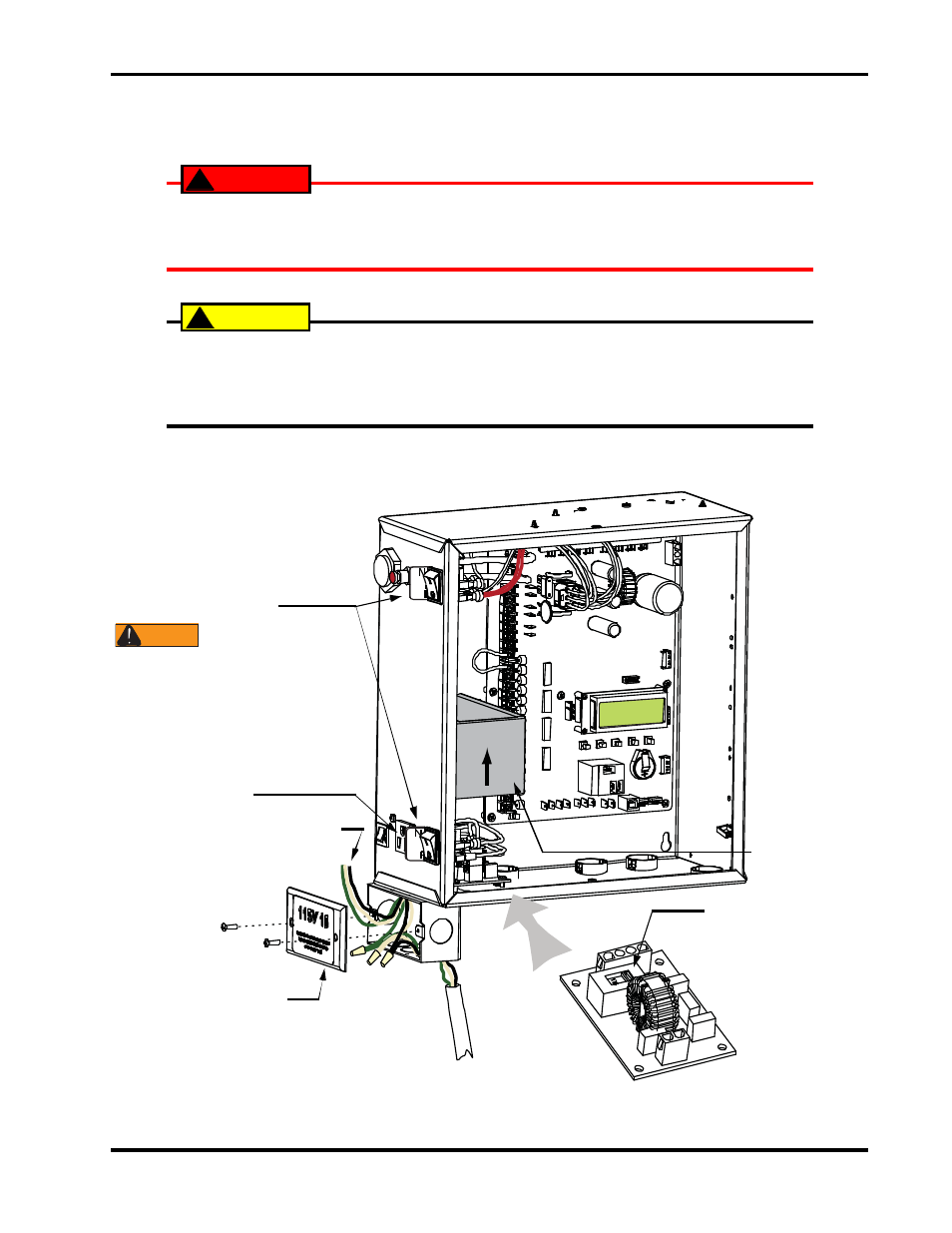

Figure 2-2.
Place the power switches in the
OFF position.
Service outlet
115 VAC wires for the service outlet.
Junction box cover and label
Voltage selector switch is
factory set to 115V.
If power input is 230V, move the
switch so 230V appears and
change the label on the
junction box.
DO NOT connect the 115VAC service
outlet to 230VAC power supply wires!
To use the 115VAC service outlet on a
230VAC installation, the electrician
needs to run an extra neutral wire to
the operator from the power source
and wire the service outlet per code.
High voltage
protection cover.
