Revision B 1-1
Installation
Chapter 1
S
ITE
O
VERVIEW
& P
LANNING

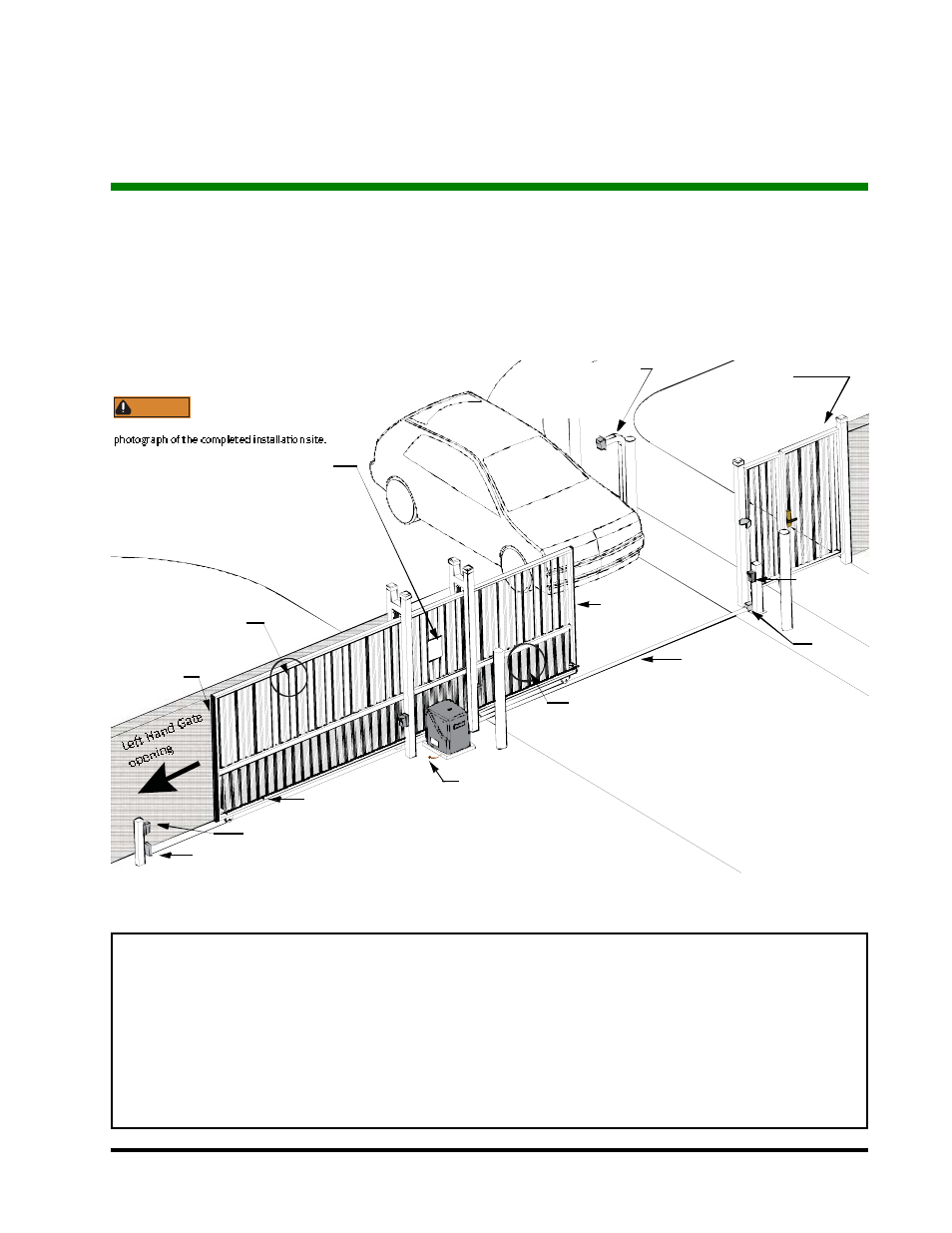

Figure 1-1.
SlideSmart DC 15 SlideSmart DC 10F
Duty cycle: continuous Duty cycle: continuous
Power, single phase: Switch selectable Power, single phase: Switch selectable
115 volts, 3 amps, 50/60 Hertz 115 volts, 3 amps, 50/60 Hertz
230 volts, 1.5 amps, 50/60 Hertz 230 volts, 1.5 amps, 50/60 Hertz
Motor: ½ hp Motor: ½ hp
Gate speed: 1ft/s Gate speed: 2ft/s
Gate weight: Maximum 1500lbs (675kg) Gate weight: Maximum 1000lbs (450kg)
Pedestrian gate
x 2 screen (minimum height = 48 )
Maximum 3 (7.6cm) width
between vertical bars
Target magnet on chain
Photo eye (entrapment protection shown in four locations)
Physical stop - weld stops at both ends of V track
Earth ground
Edge sensor
Edge sensor on
V track
Photo eye
Physical
stop
Make sure a separate walk-
through entrance is avail-
able and its pedestrian
path is clearly
designated.
Mount access control
beyond gate.
devices at least 6ft
Keypad or Card Reader
on trailing
edge
leading edge
