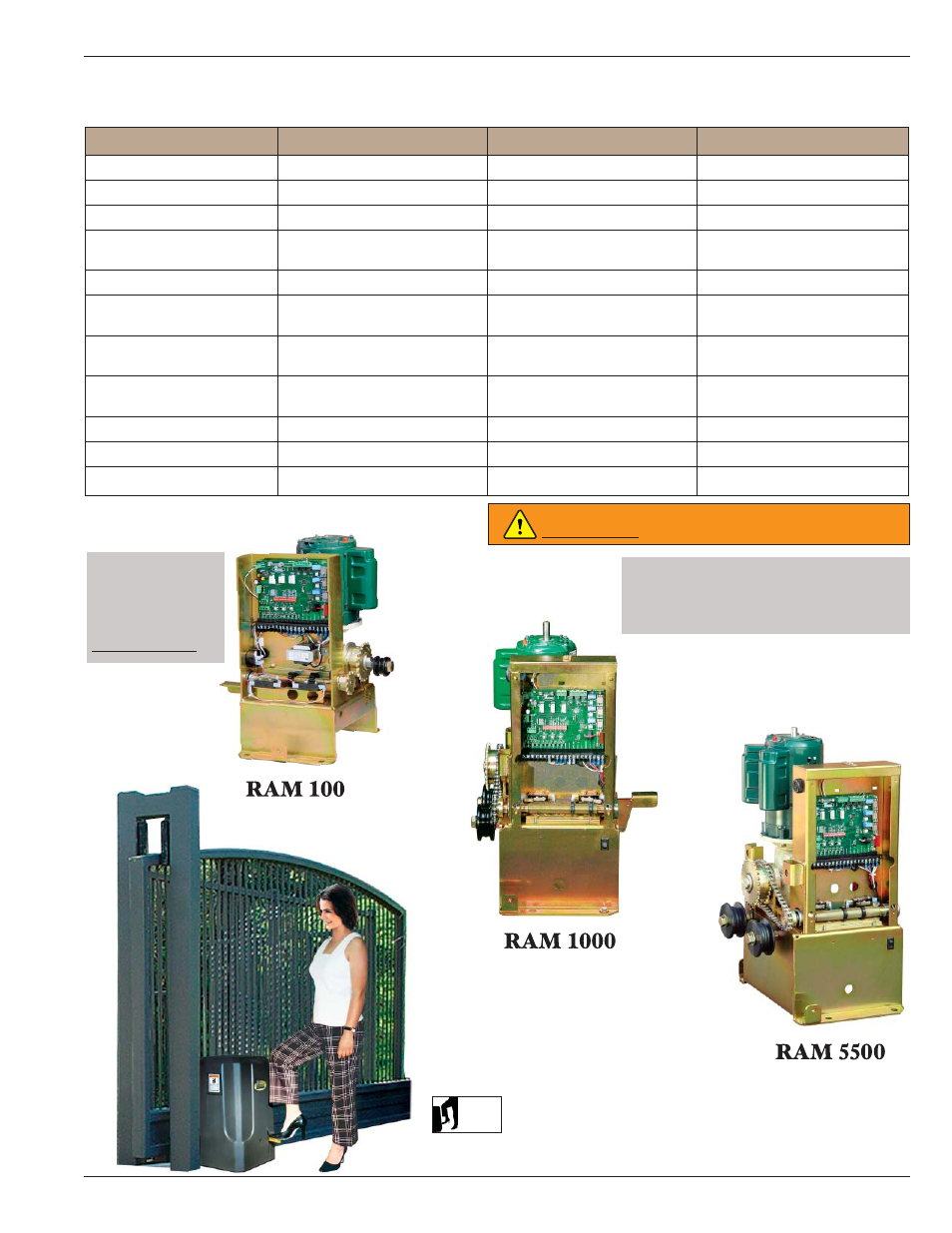

MECHANICAL SPECIFICATIONS:
MODEL: RAM 100 RAM 1000 RAM 5500
Max. Gate Length:
20 feet 45 feet 45 feet
Max. Gate Weight:
700 lbs. 1000 lbs. 1500 lbs.
Cycles:
Continuous Continuous Continuous
Aerovox 65µƒ, 240 V, 50/60 Aerovox 65µƒ, 240 V, 50/60 Aerovox 65µƒ, 240 V, 50/60
Capacitor:
HZ, protected S 1000AFC HZ, protected S 1000AFC HZ, protected S 1000AFC
Application:
Residential Residential/Commercial Res./Com./Industrial
Finish and
Gold/Zinc plated Gold/Zinc plated Gold/Zinc plated
Construction:
3/16" H.R. Metal 3/16" H.R. Metal 3/16" H.R. Metal
Continuous Duty
1/2 Hp 120 Vots. AC 1/2 Hp 120 Vots. AC 3/4 Hp 120 Vots. AC
Motor:
5.0/5.7 amp. 1625 rpm. 5.0/5.7 amp. 1625 rpm. 8.0/8.3 amp. 1625 rpm.
Power Failure
*Exclusive foot pedal release or *Exclusive foot pedal release or
Release:
*Exclusive foot pedal release optional battery back-up system optional battery back-up system
Overall Dimensions:
Ht:22" - Lt:13 1/2" - Wd:14 1/2" Ht:26" - Lt:14 1/2" - Wd:16 1/2" Ht:26" - Lt:14 1/2" - Wd:16 1/2"
Gate Travel Speed:
Approx. 1' per sec. Approx. 1' per sec. Approx. 1' per sec.
Shipping Weight:
110 lbs. 125 lbs. 135 lbs.
EMERGENCY RELEASE:
*Exclusive foot pedal release disengages the gate from the motor so it can be opened manually.
FOOT
PEDAL
RELEASE
WARNING:
Do not exceed the specifications.
Note:
Model RAM 100
is designed to be
installed only for
front installations
.
Note:
Model RAM 1000 and RAM 5500 can
be use for front, center and rear installation
with gates up to 25' maximum.
