GATE TRAVEL ADJUSTMENT
To adjust gate travel, depress spring loaded bracket and spin each Adjustment Nut to the required
position (Figure 8). L.E.D. must turn on to indicate position open or close when limit switch is activated
by limit switch adjustment nut.
Figure 8

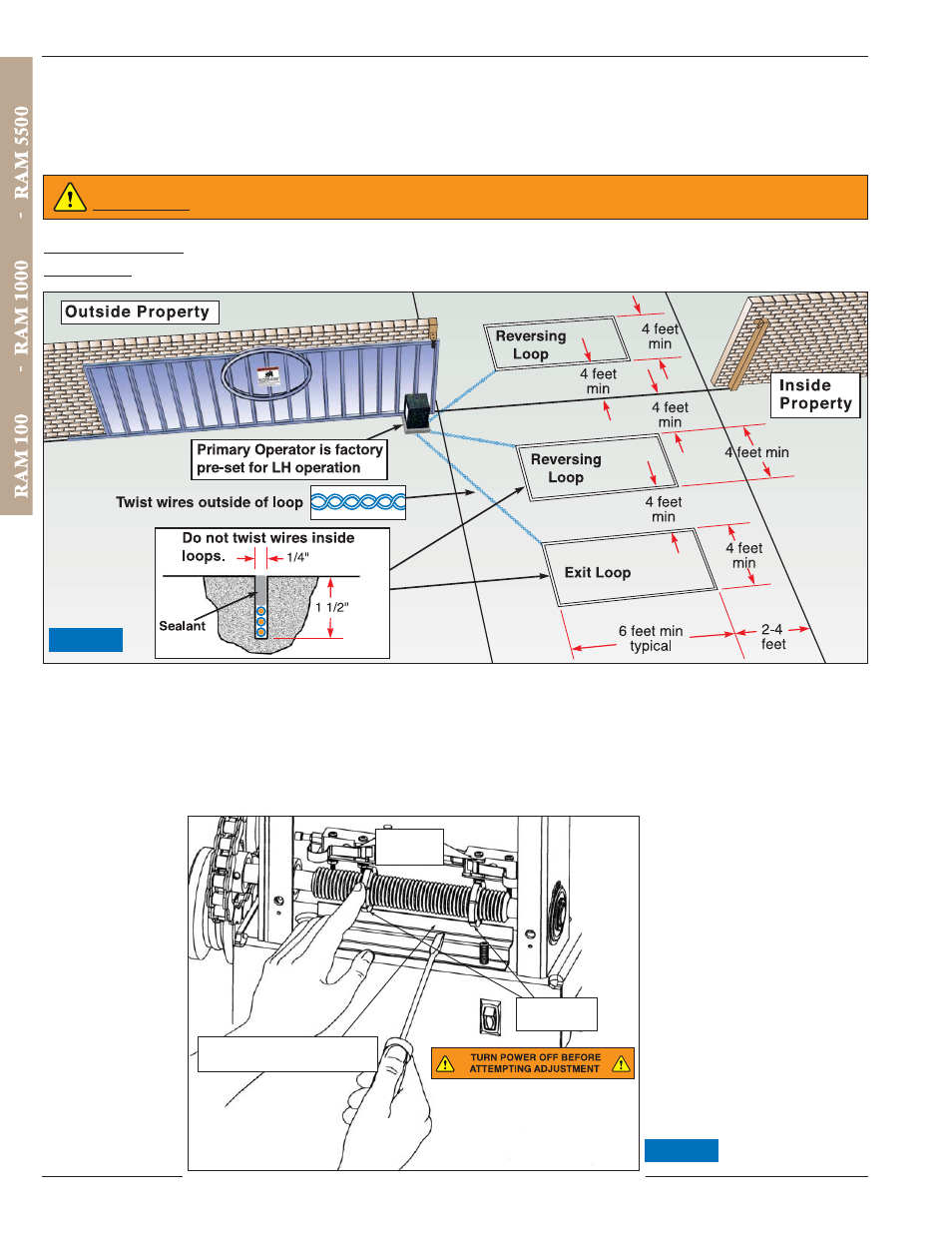

SENSOR INSTALLATION
WARNING:
A non-contact sensor (photoelectric sensor or equivalent) and a contact sensor (edge
device or equivalent) is required on each individual installation to comply with UL325.
Reversing Loops
on the ground floor, prevents gate from closing when vehicle is in loop area.
Exit Loops
on the ground floor, opens gate when vehicle crosses loop area.
Ramset Gate Operators should not be installed without non-contact sensing devices such as
Loop Detectors, photo electric sensors or the equivalent.
Depress spring loaded bracket
to free adjustment nuts
Adjustment
Nuts
Limit
Switches
Figure 7
