8
RAMSET
Opening
Pressing this button will cause the gate
to open.
Stop
Pressing this button will cause the gate
to stop moving.
Closing
Pressing this button will cause the gate
to close.
Figure 10
"Intelligate" Control Board

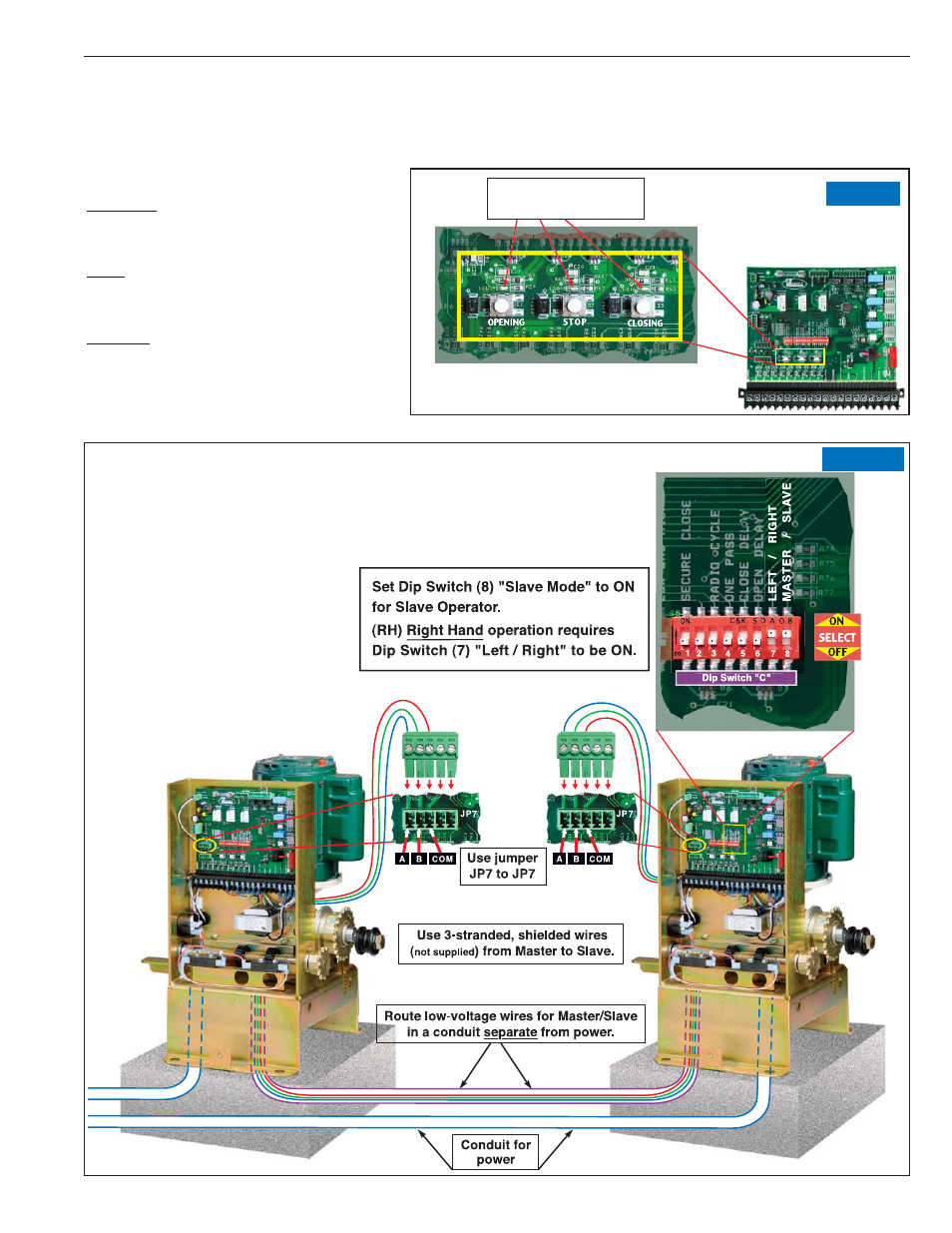

PUSHBUTTON CONTROLS
Three pushbuttons are located under the dip switches for operation of the gate (see Figure 9). The opening,
stop, and closing buttons can be utilized to set limit switches and verify proper system operation when
installing or servicing an operator.
MASTER - SLAVE INSTALLATION
L.E.D.’s light up when
function is activated
Figure 9
