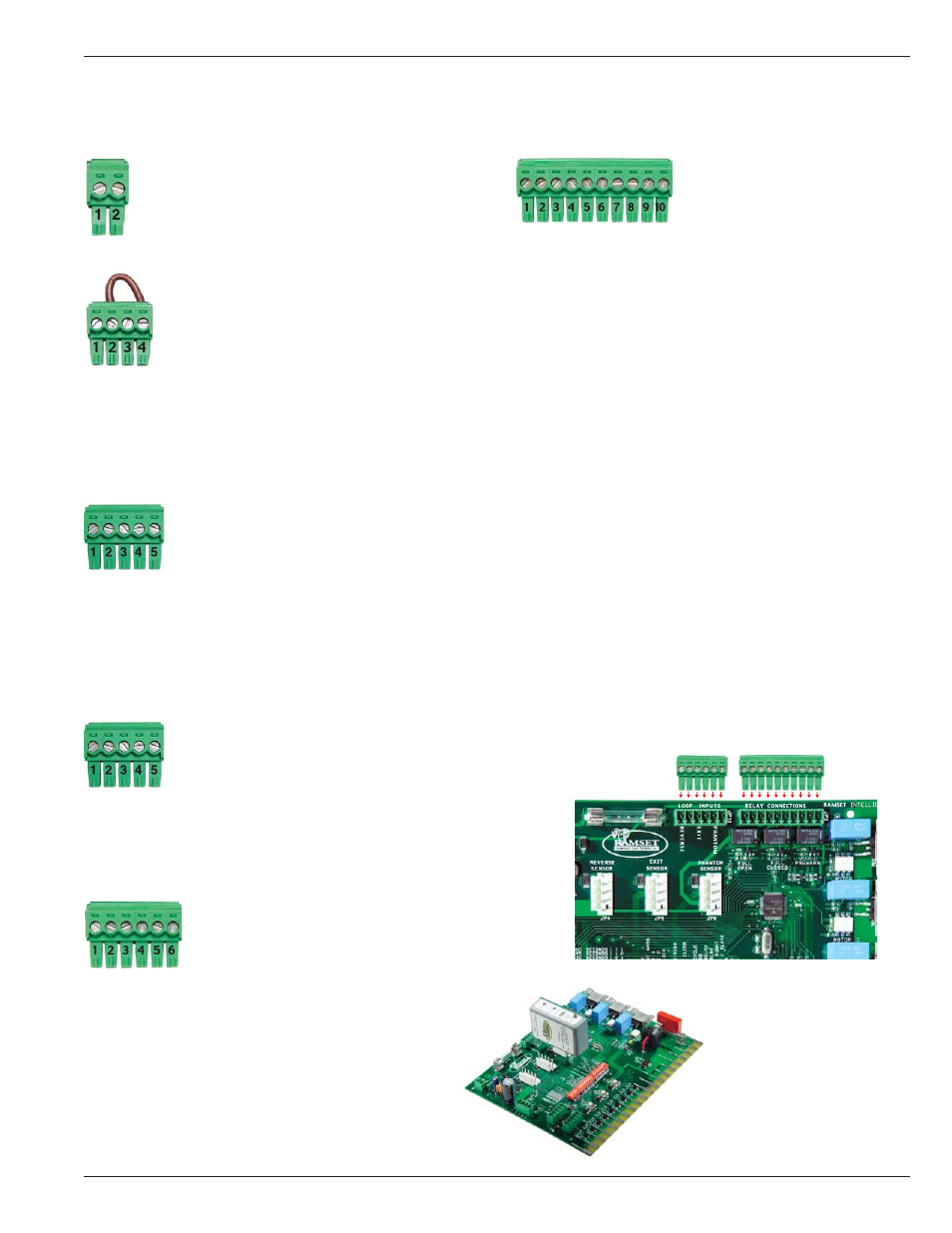

WIRE BOARD CONNECTIONS
JP7 - Master/Slave plug:
1
) A
2
) B
3
) Common
4
) 5 VDC
5
) 24 VAC.
Used to synchronize the operation between two
gates. A three-wire, Shielded cable is needed to run
from the A, B, & Common (JP7) of the master P.C.B.
to the A, B, & Common (JP7) of the slave P.C.B.
JP6 - Battery back-up plug:
1
) A
2
) B
3
) Common
4
) 5 VDC
5
) 24 VAC.
Use this plug when using optional battery
back-up system, Ramset Keypad.
1
) 24 VDC.
5
) Relay Common
2
) 24 VAC
6
) Fully Closed-N.C.
3
) 5 VDC
7-8
) Constant/Pre Warn
4
) Fully Open-N.O.
9-10
) E.R.D. Alarm.
If E.R.D. is triggered twice before reaching a
limit, 24 VDC is supplied to sound an alarm (included
with operator).
JP10 - Loop Inputs:
1-2
) Reverse
3-4
) Exit
5-6
) Phantom
Use with ILD-24 Loop wires should
be connected to this plug.
JP3 - 3 Button:
1
) Close
2
) Stop
3
) Open
4
) Common
Used with a 3-button station to open,
stop, and close the gate. The open and close are
normally open connections and the stop is a nor-
mally closed connection, remove jumper wire when
connecting 3 button station.
JP9 - Input Power:
1,2
) 24 VAC power.
Connection from external transformer to
power Control Board.
JP4, JP5 & JP8 -
Reverse, Exit & Phantom
Sensor:
Used with the Ramset ILD-24 plug-in loop detector.
The Loop wires should be connected into the
“LOOP INPUTS” plug.
Fully Open N.O. (works with relay common)
-
Relay rated at 125 VAC, 2 amps. Normally open
connection. Open contact occurs until the open
limit is triggered. When the open limit is
triggered, a closed contact occurs.
Relay Common
- Relay rated at 125 VAC, 2 amps.
The common of the Fully Closed N.C. relay and
the Fully Open N.O. relay.
Fully Closed N.C. (works with relay common)
-
Relay rated at 125 VAC, 2 amps.Normally closed
connection. Closed contact occurs until the
closed limit is triggered. When the closed limit is
triggered, an open contact occurs.
JP2 - Relay Connections:
