13
www.ramsetinc.com
RAMSET
RAMSET “INTELLIGATE” CONTROL BOARD
Introduction:
Ramset’s “Intelligate” Control Board works
with Sliding, Swinging and Overhead vehicular
gate operators. It is controlled by a program-
mable microprocessor that reads and precisely
executes all functions of the Control Board.
The Control Board is powered by a separate
mounted 24 VAC transformer. This allows no neces-
sary board modifications between 110 VAC and
220 VAC single-phase applications. Some of the
functions of the Control Board are: 0 - 60 seconds
automatic close timer, self adjusting E.R.D. with low
and high setting, constant warning, pre warning,
secure close, one pass, open & close delay, left/right
hand operation, plug-in loop detectors and RS485
three wire master/slave connection.

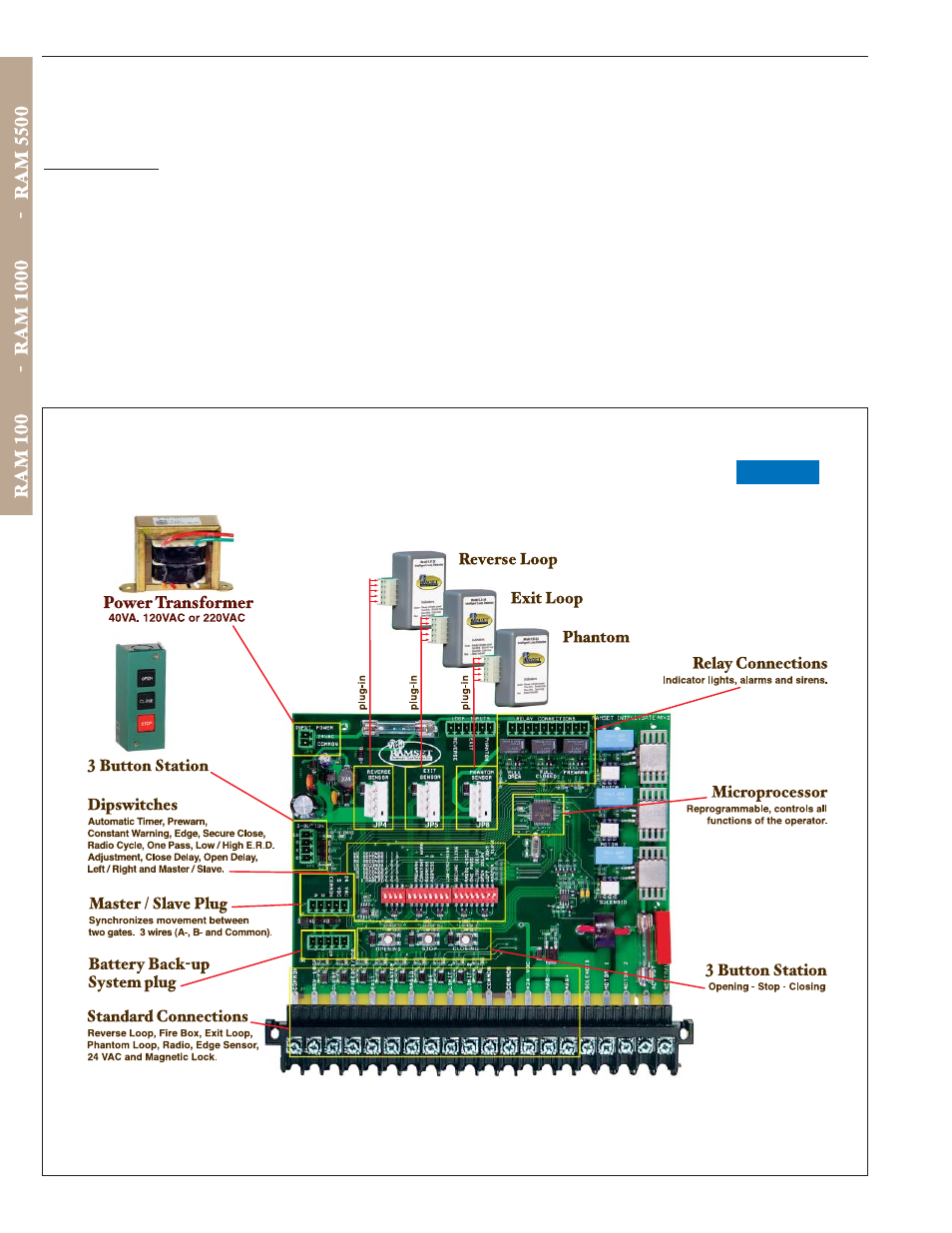

Figure 13
JP9
JP2 JP10
JP3
JP6
JP7
