Control Box
with Batteries
Antenna
Earth Ground
Installation
(Optional,
See Page 13)
Antenna
12 gauge wire
Control Box
with Batteries
Gate Bracket
Gate Bracket
Gate Operator 2
4-1/2' (1.4 m)
Power Cable
PVC conduit (not included)
to protect the power cable
and low voltage wire from
lawn mowers and string trimmer.
PVC conduit (not included) to protect the power cable
and low voltage wire from lawn mowers and string trimmer.
Gate Operator
Gate Operator 1
Post Bracket Assembly
Post Bracket Assembly

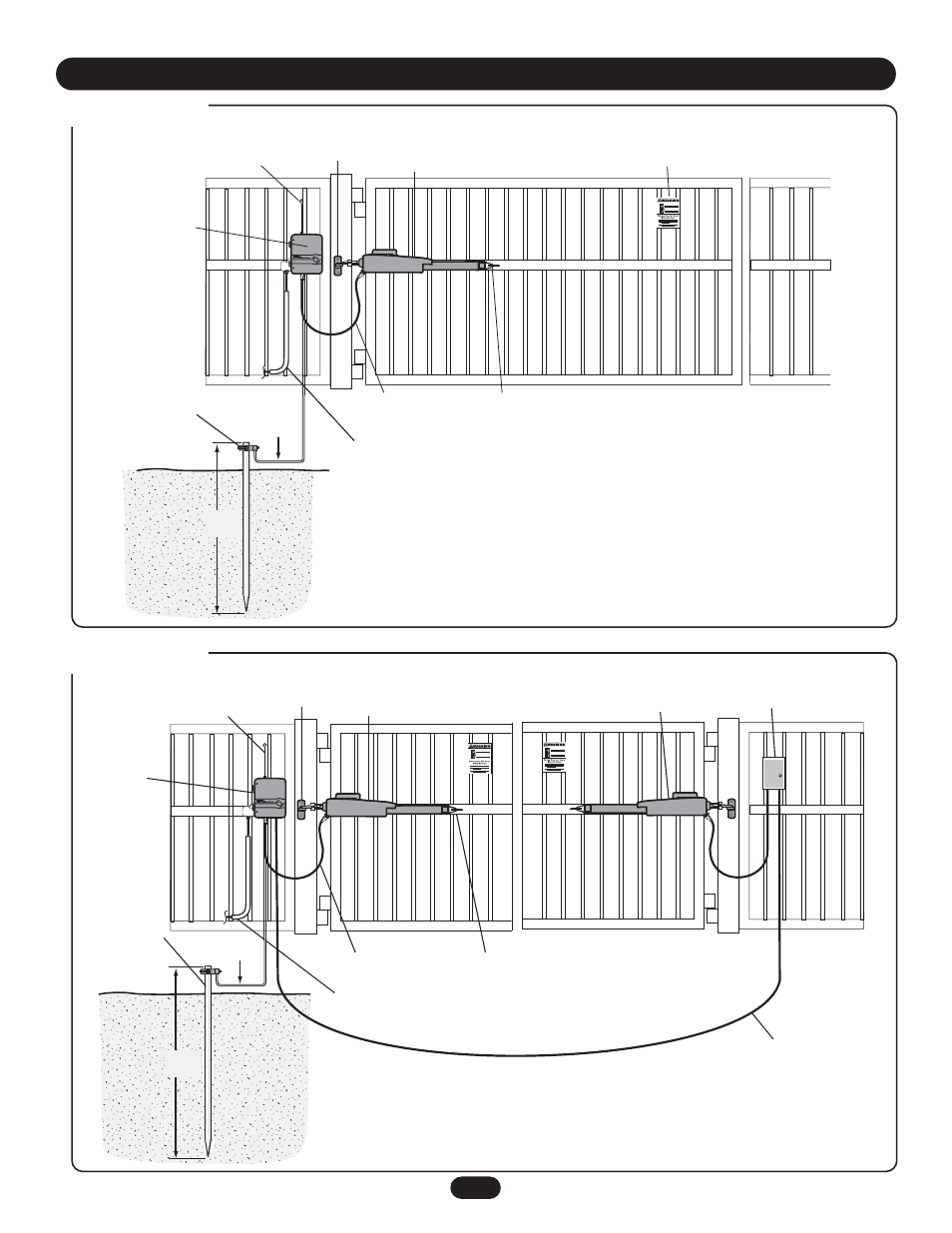

SINGLE GATE SETUP
DUAL GATE SETUP
Warning Sign
Junction Box
Extension Cable
Earth Ground
Installation
(Optional,
See Page 13)
12 gauge wire
8 ft.
(2.4 m)
4-1/2' (1.4 m)
Power Cable
8 ft.
(2.4 m)
I N S T A L L A T I O N
