22
COM
OVLD
Z22
R91
CLOSE
EDGE
R94
R92
R93
L1
R1
R2
Z1
K5
Ø14GPØ89ШE
Ш14LGШ89ШE
Ш14SKШ89ШE
K6
K2
F3
10A 32V
D1Ø
OPEN EDGE/
OPEN
CLOSE
J18
R227
R2Ø7
Z2Ø
R223
P1
Z9
Z8
R224
U4
P2
J1
J19
S1
R9Ø
Q9
K1
Z12
ACCESSORY
POWER
MAGLOCK
ALARM
GATE 1
C
C
NC
NO
NO
GRN
WHT
YEL
BLU
RED
BRN
24V
OVLD
SWITCHED
ACCESSORY
POWER
TIMER
RUNNING
GATE 2
SET
OPEN
LIMIT
SET
CLOSE
LIMIT
LEARN
LIMITS
DIAGNOSTIC
GATE 1
SAVE
MAGLOCK
MODE
EDGE
OFF
OFF
SINGLE
NO
NO
ON
ON
DUAL
NC
NC
LEARN
XMITTER
S8
1 2 3 4 5
O
N
2
1
S1
SAVE
MAGLOCK
MODE
EDGE
OFF
OFF
SINGLE
NO
NO
ON
ON
DUAL
NC
NC
1 2 3 4 5
O
N
OFF
OFF
SINGLE
EDGE NO
ON
ON
DUAL
NC
OFF
OFF
SINGLE
EYE NO
ON
ON
DUAL
NC
ON
MAG DELAY
OFF
OFF
MAG DELAY
ON
ON
ON
DUAL
NC
NC
OFF
OFF
SINGLE
NO
NO
1
2
3 4 5
O
N
1
2
3 4 5
O
N
1 2
3
4 5
O
N
1 2
3
4 5
O
N
1 2 3
4 5
O
N
1 2 3
4 5
O
N
SAVE
OFF
1
2 3 4 5
O
N
1
2 3 4 5
O
N
SAVE
ON

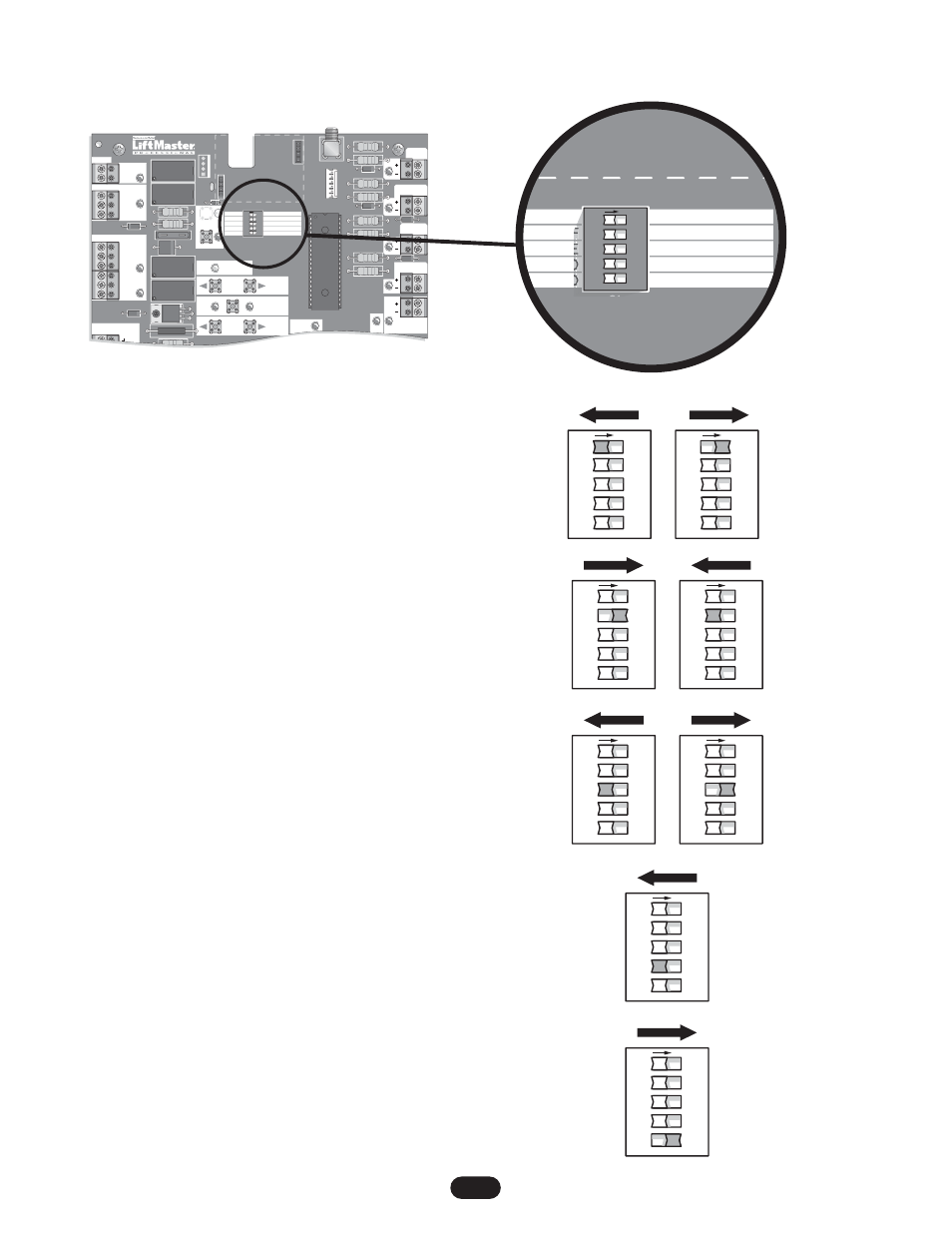

DIP SWITCH SETTINGS
SAVE SWITCH S1-1
This switch (S1-1) is used to save the settings for
switches 2 through 5.
NOTE: When setting switches S2-5 the save switch must
be in the off position prior to setting or changing switches
for the change to be saved.
MAG DELAY ENABLE
This switch (S1-2) enables the Mag Lock feature. On an
open command there will be a .5 second delay before the
motor starts, to allow the Maglock to release.
MODE DUAL/SINGLE
This switch (S1-3) sets the mode as Dual or Single
(See Programming section for mode).
SAFETY INPUTS
Swing gates allow four safety inputs. A DIP switch is
required for determining between N/O and N/C edges and
N/O and N/C eyes.
EDGE INPUT
Set switch (S1-4) to the following settings:
N/O Edge (Active Close) = 8.2K, 10K Edge, N/O dry
contact edge
N/C Edge (Active Open) = N/C dry contact edge
NOTE: Monitored Edges should be set in the N/O
position, as the activation condition is shorting the
terminals.
EYE INPUT
This switch (S1-5) differentiates between N/O and N/C
dry contact photoelectric eye inputs.
NOTE: Pulsing Chamberlain photoelectric eyes will
automatically learn in N/O mode.
