Controlled Products Systems Group LA400-S - Manual (Page 3)

3
32.10"
(81.5 cm)
33.25"
(84.5 cm)
.475" DIA.
(1.2 cm DIA.)
4.00"
(10.2 cm)
.250"
(0.635 cm)
4.50"
(11.2 cm)
HARDWARE KIT LA400 (K77-19130)
DESCRIPTION QTY
Post Bracket 1
Pull to Open Bracket 1
Hex Bolt 5/16"-18 X 1-1/2" 5
Square Neck Carriage Bolt 3/8"-16 X 6" 2
Hex Nut 3/8"-16 5
Hex Nut 5/16"-18 5
Flat Washer 5/16" 5
Flat Washer 3/8" 5
Lock Washer 5/16" 5
Lock Washer 3/8" 5
Gate Mounting Bracket 1
Hairpin Clip 4
Pin 2
Hex Bolt 3/8"-16 X 1-1/2" 1
Bolt 2-3/4" 2
CONTROL BOX LA400 (LA-CONTROL)
DESCRIPTION QTY
Control Box 1
Hardware Bag 1
MISCELLANEOUS
Linear Actuator Arm - Model LA400-1K (1) or 2 (LA400-2K)
Warning Sign
2
Battery 2
Plug-In Transformer 1
LA400-S
Extension Cable - Six Conductor 40' (12.2 m)
Junction Box - IP56 1
Phillips Head Mounting Screws 4
Anchors 4
Terminal Block - Twelve Connectors 1
NOTE: Carton inventory is based on a Single Operator. For Primary (Gate 1) and Secondary (Gate 2) installation the carton
inventory is doubled except for control box (1).
Main Supply (Motor) 24Vdc
Current Consumption 2A
Power Consumption 48 Watts
Battery Charger Supply 26Vac, 29VA or 36Vdc, 40VA
Solar Panel Supply (Optional) 27.4V, 9W (Minimum)
Maximum Gate Width 16 ft. (4.9 m)
Maximum Gate Weight 550 Lbs. (249.5 kg)
Protection Class NEMA 3R
Travel Speed 14-18 seconds for a 90 degree opening
Rated Operating Time 4 Minutes
Temperature -20˚C to + 50˚C
-4˚F to + 122˚F
Main Supply (Control) Dedicated Circuit 120V~/60Hz
Absorbed Power 0.75 Watts
Protection Fuse Gate 1 ATC 15A
Protection Fuse Gate 2 ATC 15A
Protection Fuse Battery ATC 20A
Weight: 47Lbs. (21 kg.)
Permanent fasteners for warning sign
Earth Ground Rod (Optional)
Power Wire: 120Vac (Stranded Copper Wire) Power Wire: 24Vac Transformer (Stranded Copper Wire)
Wire Gauge Length Wire Gauge Length
16 100' (30 m) 14 500' (152 m)
10 1000' (305 m) 12 1000' (305 m)
OR
C A R T O N I N V E N T O R Y
A D D I T I O N A L I T E M S N E E D E D F O R I N S T A L L A T I O N

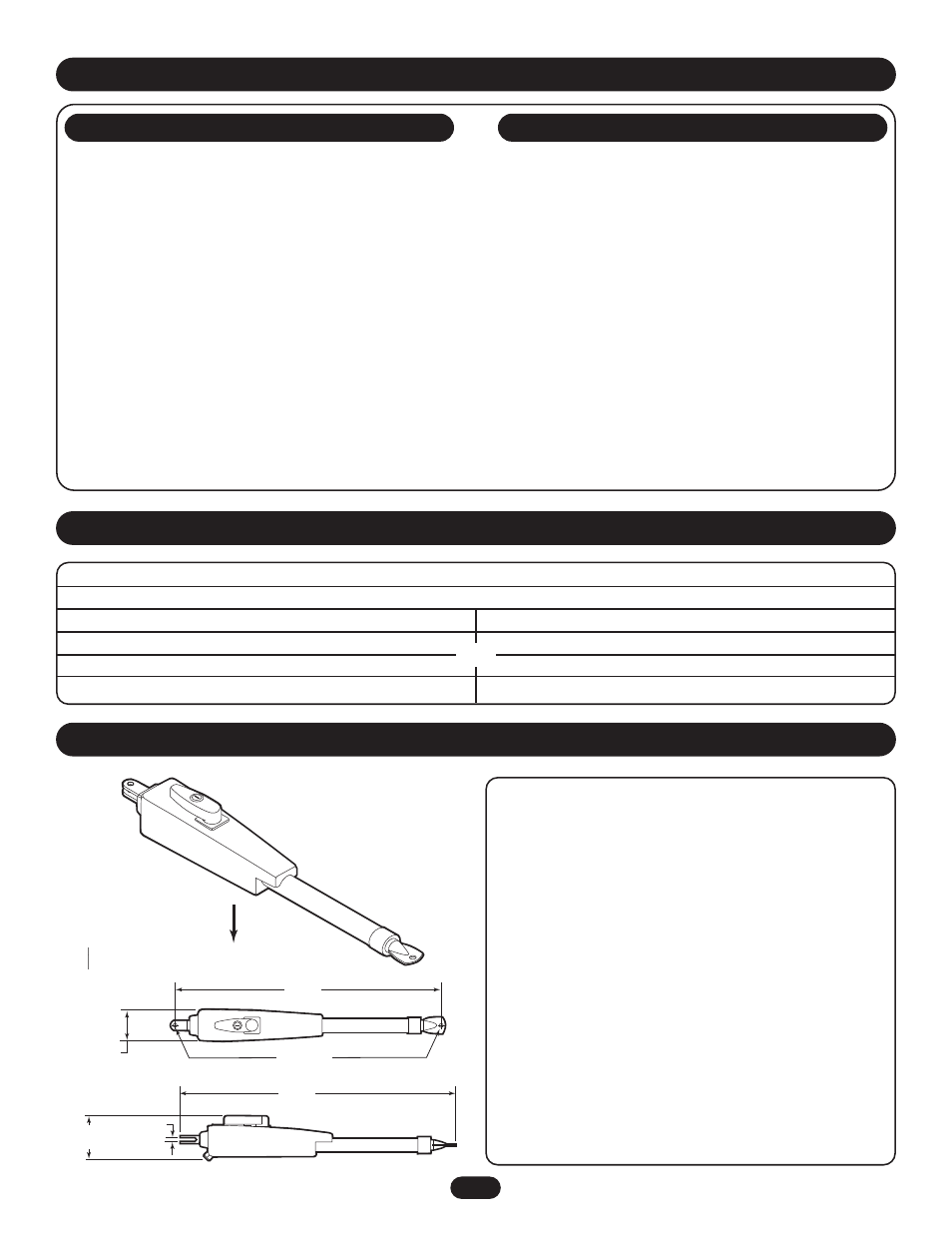

O P E R A T O R D I M E N S I O N S A N D S P E C I F I C A T I O N S
