31
ADJUST THE LIMITS
If the limits have already been set the operator will exit the limit setting mode after
resetting each limit.
Set the Close Limit Only
1

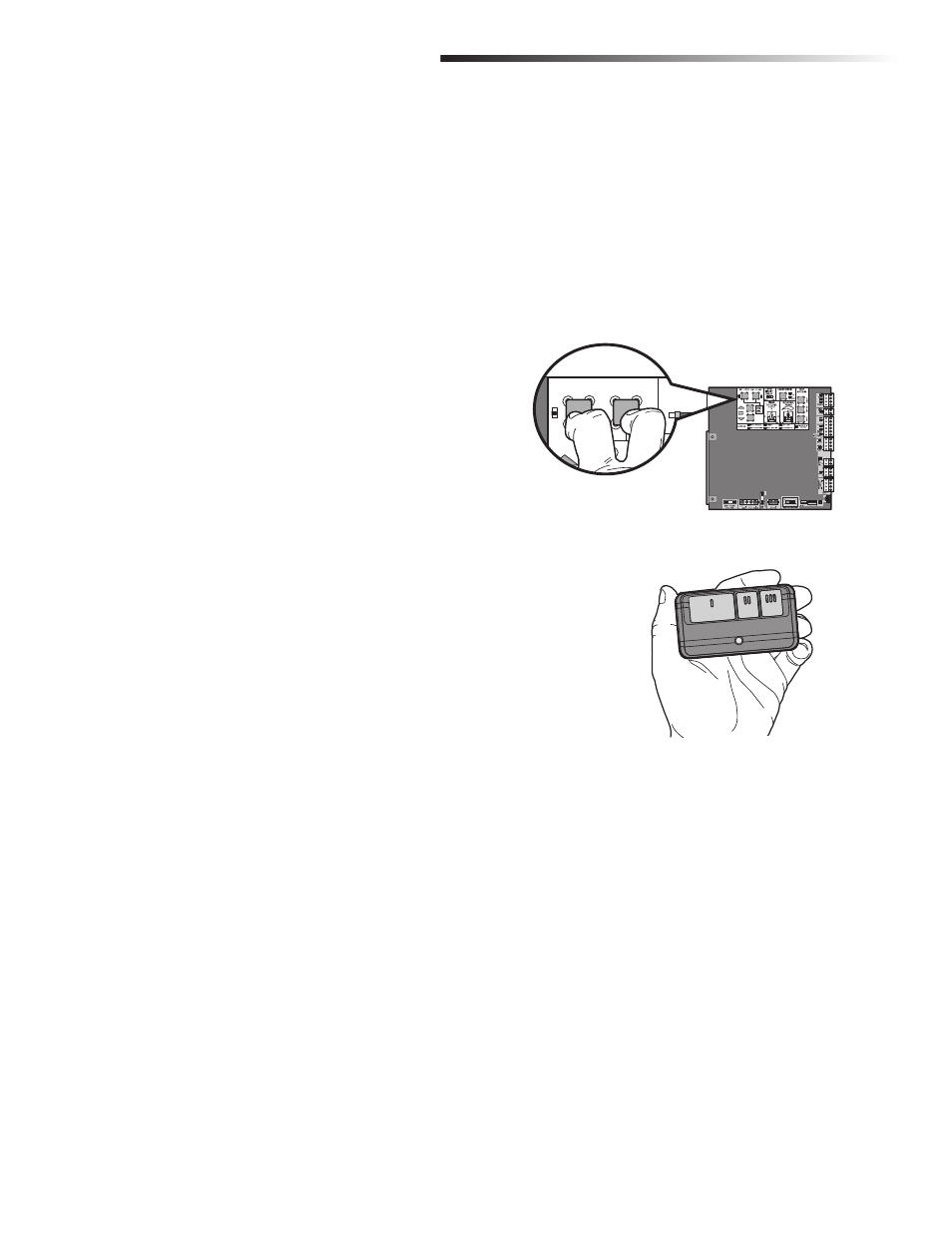

Press the SET OPEN and SET CLOSE buttons simultaneously to enter limit
setting mode.
2
Press and hold the CLOSE button on the remote control until the gate reaches
the desired close position. The gate can be jogged back and forth using the
OPEN and CLOSE buttons on the remote control.
3
Once the gate is in the desired close position, press and release the STOP
button on the remote control.
4
Press and release the CLOSE button on the remote control again to set the
close limit.
When the close limit is set properly the operator will automatically exit limit setting
mode.
Set the Open Limit Only
1
Press the SET OPEN and SET CLOSE buttons simultaneously to enter limit
setting mode.
2
Press and hold the OPEN button on the remote control until the gate reaches
the desired open position. The gate can be jogged back and forth using the
OPEN and CLOSE buttons on the remote control.
3
Once the gate is in the desired open position, press and release the STOP
button on the remote control.
4
Press and release the OPEN button on the remote control again to set the
open limit.
When the open limit is set properly the operator will automatically exit limit setting
mode.
LIMIT SETUP WITH A REMOTE CONTROL
ADDITIONAL FEATURES
LIMIT SETUP WITH A REMOTE CONTROL
ALARM RESET
SET OPEN SET CLOSE
OFF
BIPART
DELAY
PRESS &
RELEASE
TO BEGIN
3-Button Remote Control programmed for OPEN, CLOSE, and STOP
