25
A B
C
D
E

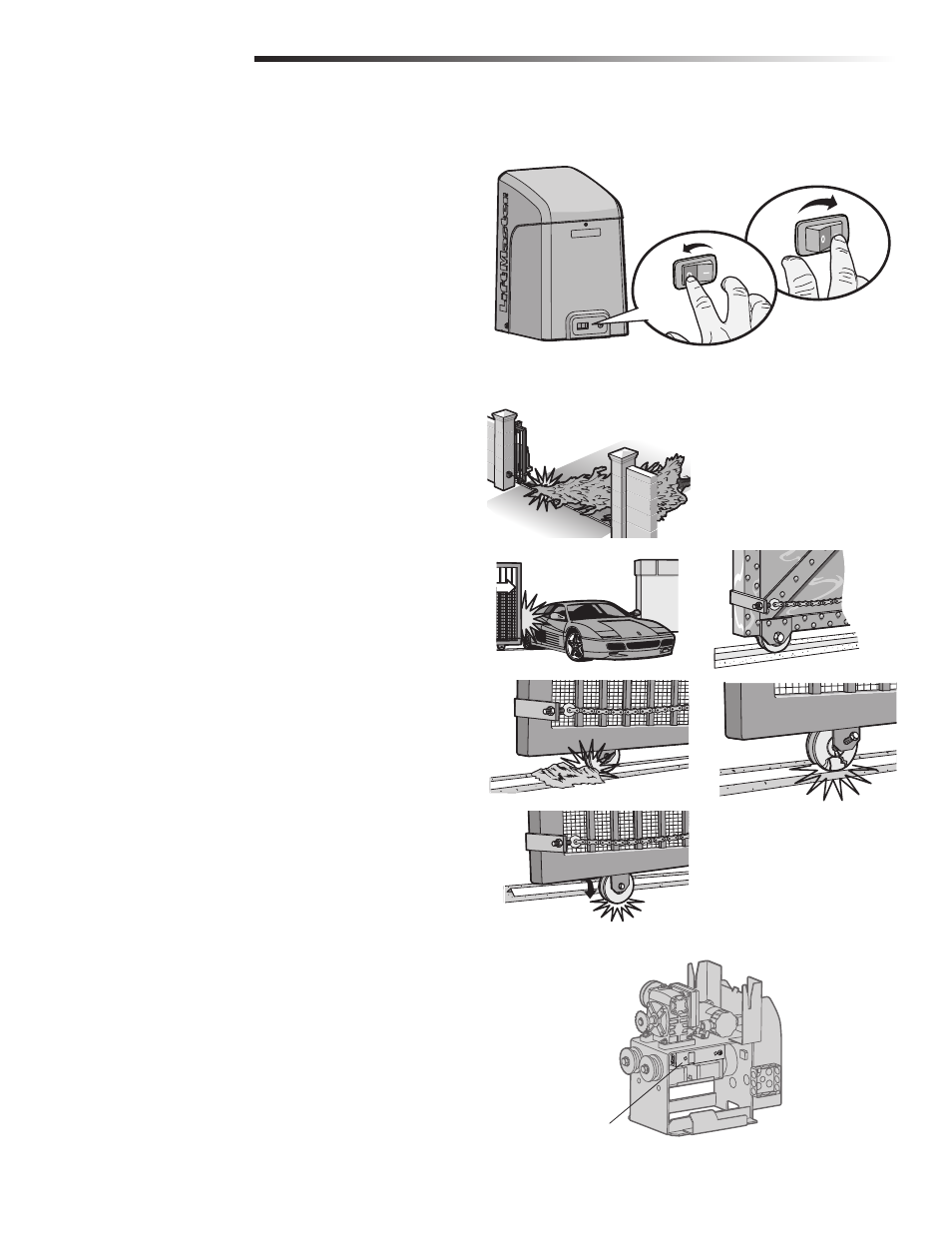

RESET SWITCH
The reset switch is located on the front of the operator and serves several functions.
Toggling the reset switch will stop a moving gate during a normal open/close cycle,
like a stop button. The operator does not need to be reset after doing this. The reset
switch will disable the gate in the present position and will energize the solenoid lock
for two minutes and disable the maglock for two minutes.
MANUAL DISCONNECT
Press the reset switch to RESET/DISCONNECT to allow the gate to be opened and
closed manually. To resume normal operation press the reset switch to NORMAL
OPERATION.
OPERATOR ALARM
If a contact sensor detects an obstruction twice consecutively the alarm will
sound (up to 5 minutes) and the operator will need to be reset. If a command is
given after the initial 5 minutes the operator will beep.
When the inherent force of the operator (RPM/current sensor) detects the
following (twice consecutively) the alarm will sound (up to 5 minutes) and the
operator will need to be reset:
A. The gate is hitting a wall or vehicle.
B. The gate does not meet specifications.
C. Debris is on the gate's track such as mud, rocks, dirt, etc.
D. The gate has one or more broken axles or wheels.
E. The gate wheel is off the gate rail.
Remove any obstructions. Toggle the reset switch to shut off the alarm and reset
the operator. After the operator is reset, normal functions will resume.
The operator alarm will beep 3 times with a command if the battery is low.
RESET/DISCONNECT
NORMAL OPERATION
REMOTE CONTROL
Once the remote control has been programmed the operator will operate as follows:
When gate is in the closed position, activation of the remote control button will open
the gate. During the open cycle another activation of the remote control will stop the
gate and the next activation of the remote control will close the gate.
When the gate is in the open position, activation of the remote control button will
close the gate. If the remote control is activated while the gate is closing, the gate
will stop and the next activation will open the gate.
RESET SWITCH + REMOTE CONTROL + HEATER (IF APPLICABLE)
OPERATION
Heater (if applicable)
120 Vac ONLY
HEATER (IF APPLICABLE)
The operator may have a heater installed, depending on the model purchased. The
heater must be powered by 120 Vac ONLY. If the heater switch is left in the “ON”
position, the heater will turn on and off automatically when needed.
