8
This model is intended for use in vehicular slide gate applications:
Gate Classifications: CLASS I, II, III, & IV
Main AC Supply: 120 Vac or 240 Vac
Solar Power Max: 24 Vdc at 50 watts max.
Input Rating:
• CSL24V: 10 Amps at 120 Vac or 2 Amps at 240 Vac
• CSL24VH: 12 Amps at 120 Vac
Input Rating Excluding Accessory Outlets:
• CSL24V: 4 Amps at 120 Vac or 2 Amps at 240 Vac
• CSL24VH: 6 Amps at 120 Vac
*Input Rating of Accessory Outlets: 6 Amps at 120 Vac
* NOTE: The accessory outlets are not connected for the 240 Vac rating.
Main Supply (Motor): 24 Vdc
Accessory Power: 24 V nominal Class II limited to 500 mA
NOTE: Increased accessory power drawn from the operator will shorten the
battery back-up duration.
OPERATOR SPECIFICATIONS + CARTON INVENTORY & OPERATOR DIMENSIONS
INTRODUCTION
OPERATOR SPECIFICATIONS
Heater Draw (Optional): 325 watts (120 Vac ONLY)
Maximum Gate Weight: 1500 lbs.
Maximum Gate Travel Distance: 50 feet
Maximum Gate Speed: 1 foot/second
Daily Cycle Rate AC power: Continuous duty
Ambient Temperature:
• Without Heater: -20°C to 60°C (-4°F to 140°F)
• With Heater: -40°C to 60°C (-40°F to 140°F)
Fuse Protection Battery: 30 Amp
Fuse Protection DC Power: 30 Amp

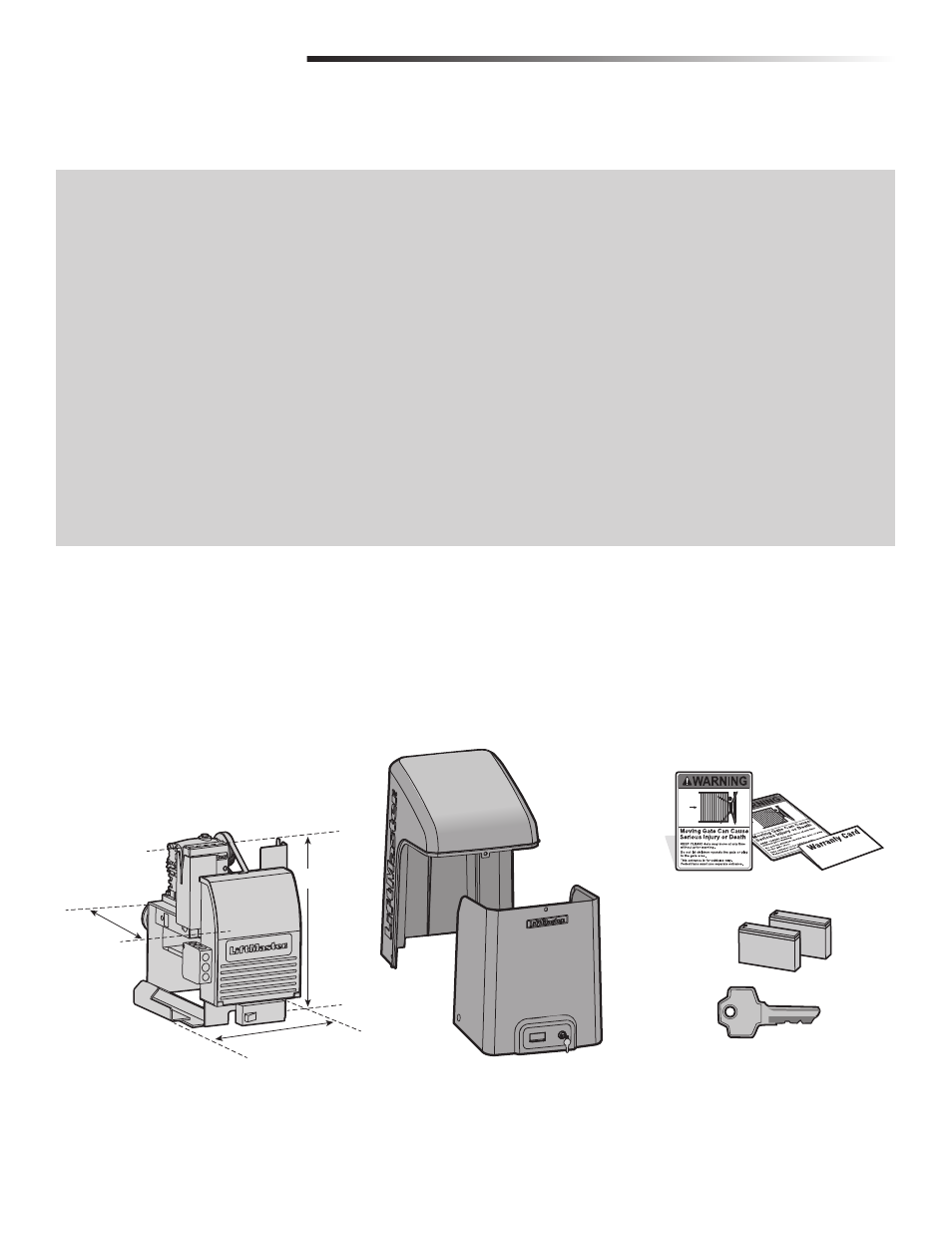

CARTON INVENTORY & OPERATOR DIMENSIONS
Operator
Cover
Key (2)
Battery 12 Vdc 7AH (2)
Warning Signs (2) and Warranty Card
NOT SHOWN: Documentation Packet, Chain #41 - 30 feet, Eye Bolt Kit
14.6"
20"
21.1"
