GATE TRAVEL ADJUSTMENT
Locate limit switch.
Step 1: Turn the on operator.
Step 2: Use an allen wrench to loosen up the limit cams. Turn the
limit Cams to desired direction.
Step 3: tighten the allen screw.
Step 4: Turn the operator back on.
Step 5: Run gate operator. If more adjustment is needed, repeat
the steps.
power off

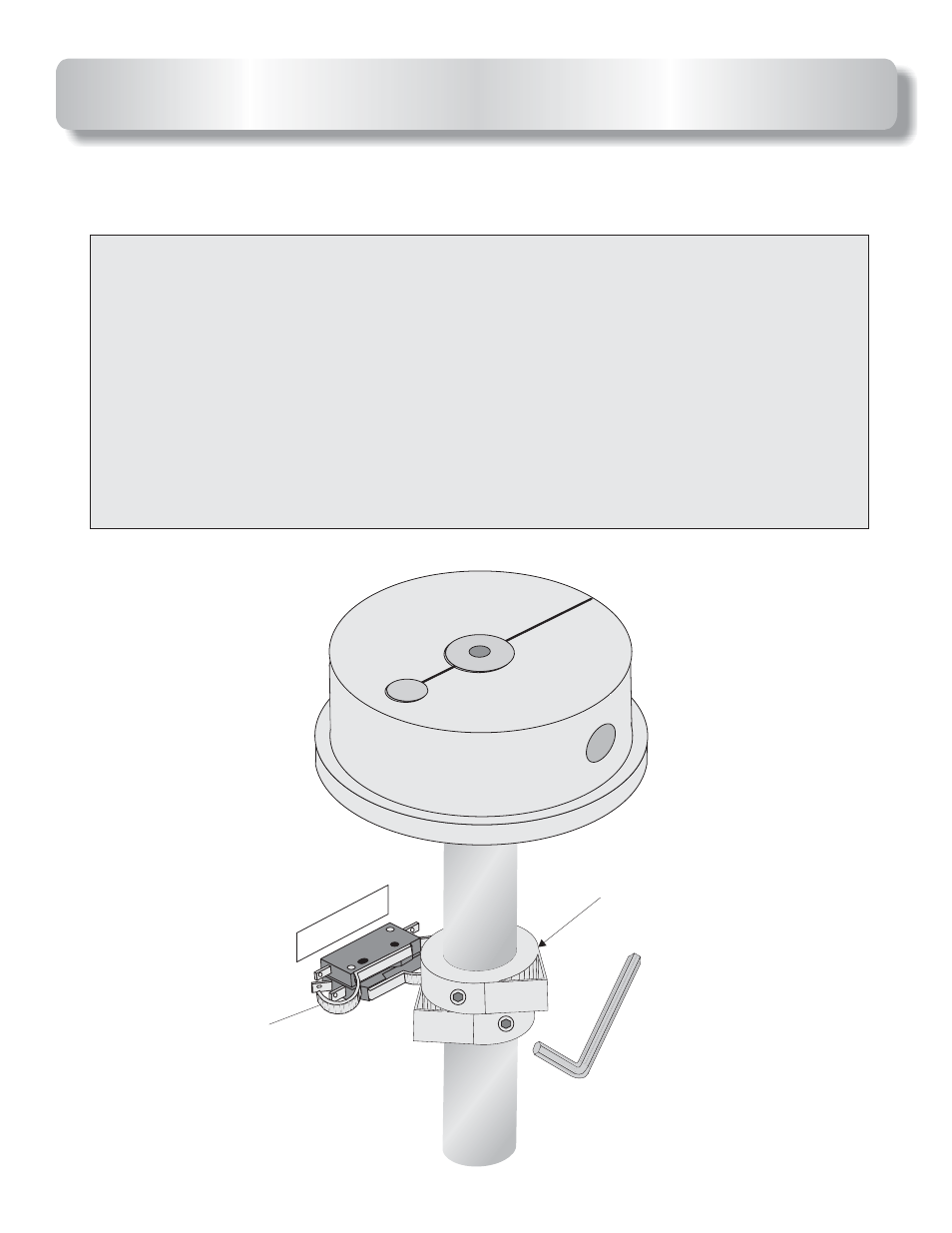

Allen wrench
Limit cams
Limit switches
