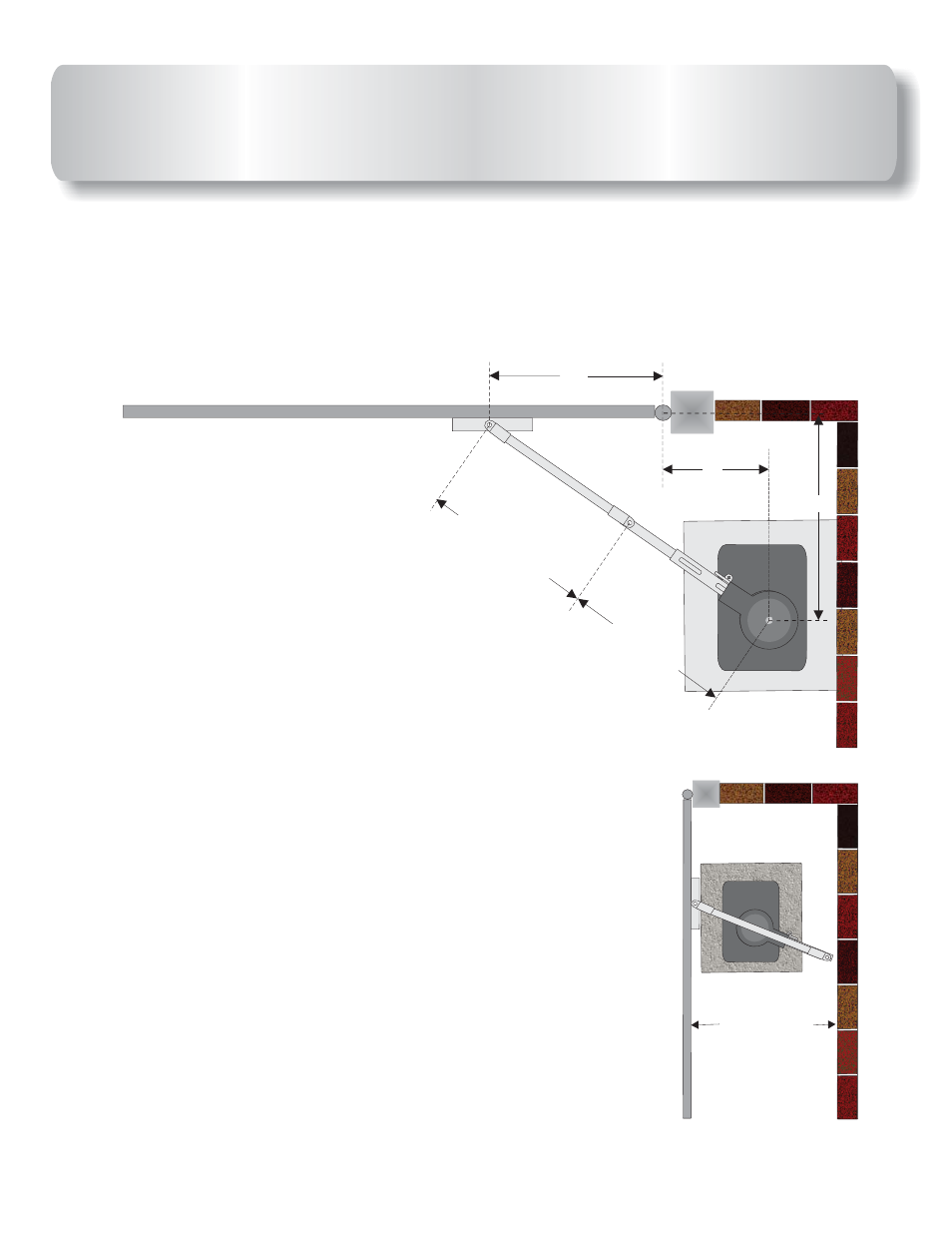

SWINGER COMPACT
INSTALLATON
OUTSIDE
INSIDE
20” Minimum
8”
35”
SECONDAR
Y
HINGE
CENTER
27”
20”
Use these measurements, only if the
distance between the wall and the gate
in the open position is 20” to 34”. If you
have more than 34” refer to standard
installation.
To use this installation the gate must be 12’ or less.
