Controlled Products Systems Group 3020HX - Manual (Page 12)

12
pOweR COnneCTIOn / eleCTRICal HOOkup
Important: Turn power OFF at the breaker before making any connections or adjustments.
Note: Port 1, 2, 11 and 12 are not to used. They are empty ports.
The operator should be on a separate line with a 15 AMP breaker. Supply voltage must be within
10% of the operator rating under load conditions. Connect power in accordance with local codes
All operations must be properly grounded with a supply grounding conductor
Note: Master Slave installations must have the same phase power when separate breakers are used
115 vOlT SInGle pHaSe
See figure 11
#12 OR #14 gauge shielded, standard wire is recommended for the high voltage hoop-ups.
Secure the 115 volt single phase HOT line to port #10 1.
Secure ground supply line to port #9 2.
Secure neutral supply line to port #8 3.
Important: Turn power OFF before making any connections or adjustments.
MaG-lOCk InSTallaTIOn
If a 115 volt lock is used, connect the neutral wire from the lock to port #7 and the power wire from the
lock to port #6
1
Dead
Dead
Dead
L-1 (hot) (117 VAC) input only
High
Voltage
In
Mag Lock
Wires
Motor
Wires
Neutral (117 VAC) input only
Ground (117 VAC) input only
Neutral
Lock
White - Motor Wire
Red - Motor Wire
Yellow - Motor Wire
Dead
2
3
4
5
6
7
8
9
10
11
12
Dead
Dead

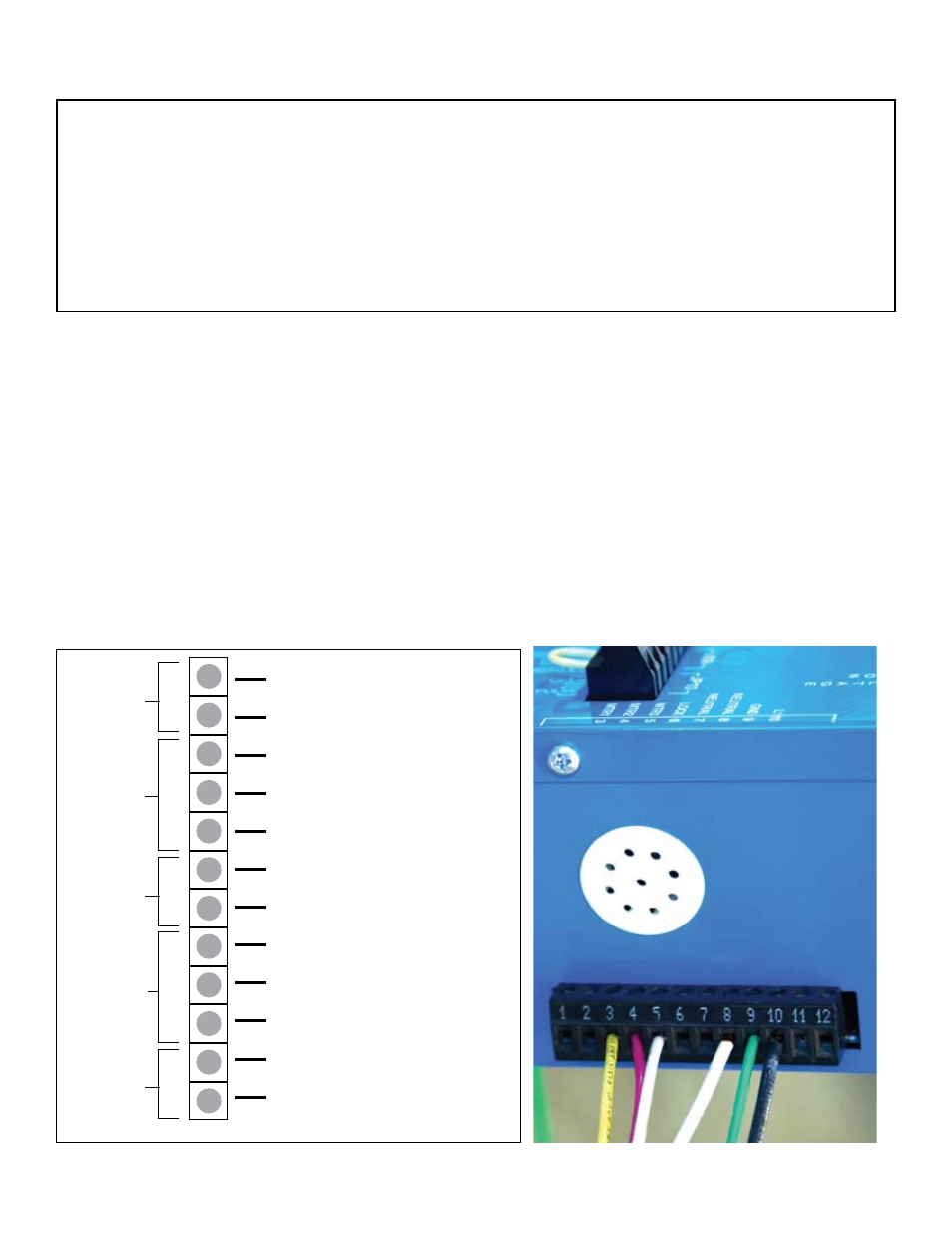

Figure 11 (Power Connection)
