InITIal lIMIT aDjuSTMenT
Remove limit nut keeper 1.
Move the gate to the fully open position, minus one foot 2.
Adjust the open limit nut until the open limit switch just activates. 3.
Replace the limit nut keeper. 4.
Important: Do not let the close limit nut go past the close limit switch when performing step #5.
Move the gate to the fully closed position, minus one foot 5.
Adjust the close limit nut until the close limit switch just activates. 6.

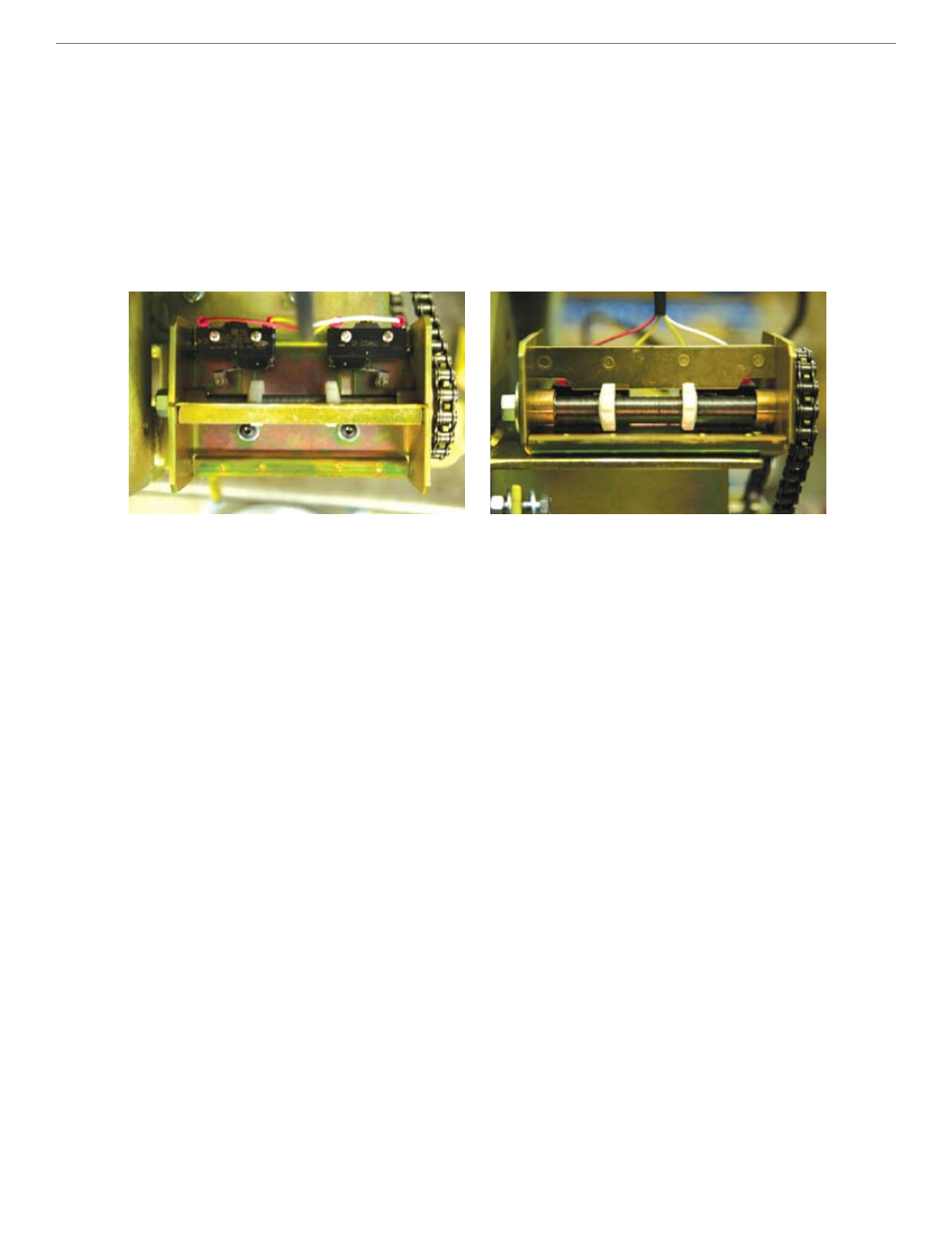

Figure 8 (Top View) Figure 9 (Side View)
Note: The hand of the operator is easily identified after the operator is hooked up electrically by activating on of
the limit switches, which will illuminate the open or close limit switch LED. Hand is very easily altered by the hand
change switch. See Fig #7 for location of the switch.
