The AC Power Input Voltage switch is located on the rear of the CX-1010. The default configuration for the
AC Power Input Voltage switch is 115 VAC.
To re-configure for 230 VAC Input, move the switch from the 115V position (up) to the 230V position
(down).

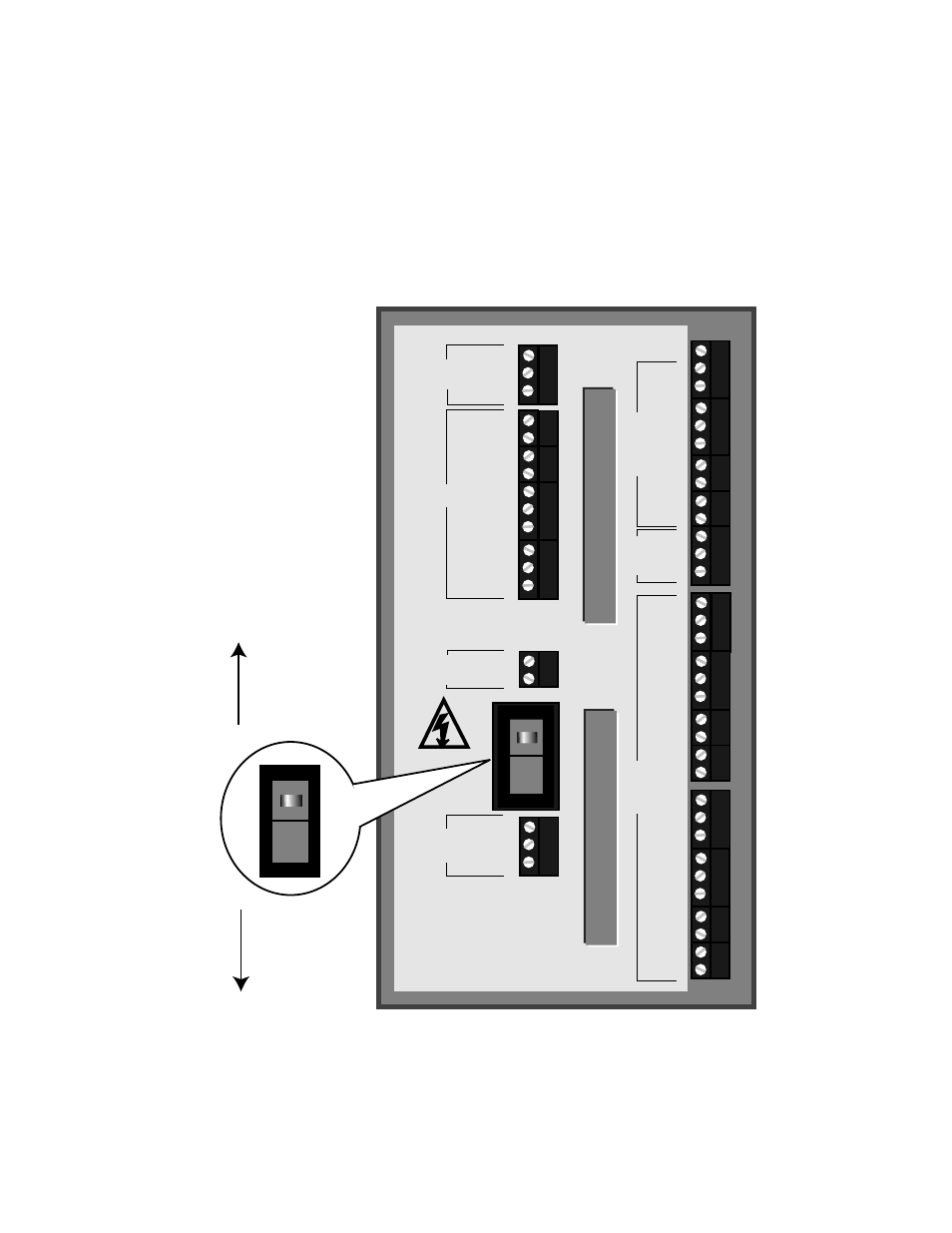

Figure 1 AC Power Input Voltage Switch
RS 485
SERIAL
COMM.
+12 V AUX
150 mA MAX
FI_1A
FI_1A
FI_1B
FI_1B
COM
FI_2A
FI_2A
FI_2B
FI_2B
COM
RI_1
RI_2
USE COPPER WIRE ONLY.
SELECT WIRE SIZE ACCORDING TO AMPACITY
FOR 60/75 C WIRE
TIGHTEN TERMINALS TO 5 IN/LB
J5
DI_0
DI_1
COM
DI_2
DI_3
DI_4
DI_5
COM
DI_6
DI_7
DI_8
DI_9
COM
DI_10
DI_11
DI_12
DI_13
COM
DI_14
DI_15
J7
F
R
E
Q
U
E
N
C
Y
I N
P
U
T S
R
E
G
.
IN
P
U
T
S
D
IG
IT
A
L I N
P U
T S
DIGITAL
OUTPUTS
CONTROL
OUTPUT
TO DRIVE
AC
POWER
INPUT
J6
TD/RD+
TD/RD–
COM
+V_D0
D0_0
D0_1
D0_2
D0_3
D0_4
D0_5
D0_6
D0_7
COM
C0_SIG
C0_COM
L1
L2/NEUT
GND/PE
INPUT VOLTAGE:
115/230 VAC
INPUT CURRENT:
0.1 AMP
INPUT FREQUENCY:
50/60 HZ
115V
115V
230V
115V
(default)
