Page 40
OUTPUTS
NOTE: Refer to pages 9 and 35 before you begin wiring.

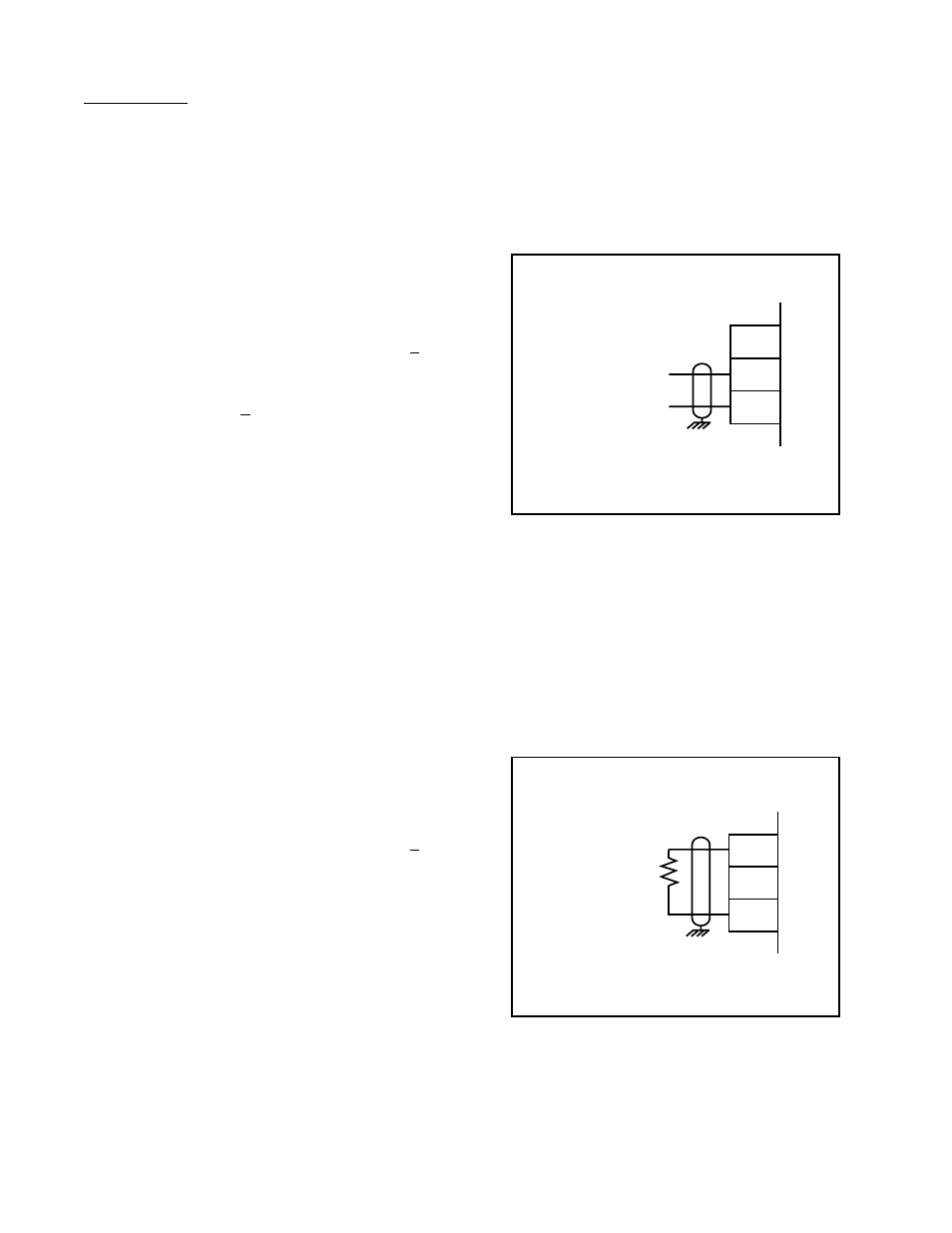

Figure 41 Analog Output: Voltage
Output
9
10
11
JA
±
12V Out
Common
Analog Output:
Voltage Output Wiring
(JA, Pins 9, 10, 11)
The Analog Output produces either an isolated + 12V
output signal or a 0-20 mA current source analog output
signal into a load resistance of 0-500 Ohms.
Figure 41 displays the +12V option.
Analog Output:
Current Output Wiring
(JA, Pins 9, 10, 11)
The Analog Output produces either an isolated + 12V
output signal or a 0-20 mA current source analog output
signal into a load resistance of 0-500 Ohms.
Figure 42 displays the 0-20 mA option.
Figure 42 Analog Output: Current
Output
9
10
11
JA
0-20 mA Out
Common
0 - 500
Ohm
