Increment Batch Count
(J7 pins 6, 8)
Digital Input 12
INCREMENT BATCH COUNT is a momentary input.
When it is closed, the CX–1010 increases the internal
batch counter by one increment.
Reset Batch Count
(J7 pins 7, 8)
Digital Input 13
RESET BATCH COUNT is a momentary input. When it
is closed, the CX–1010 resets the internal batch counter
to zero.

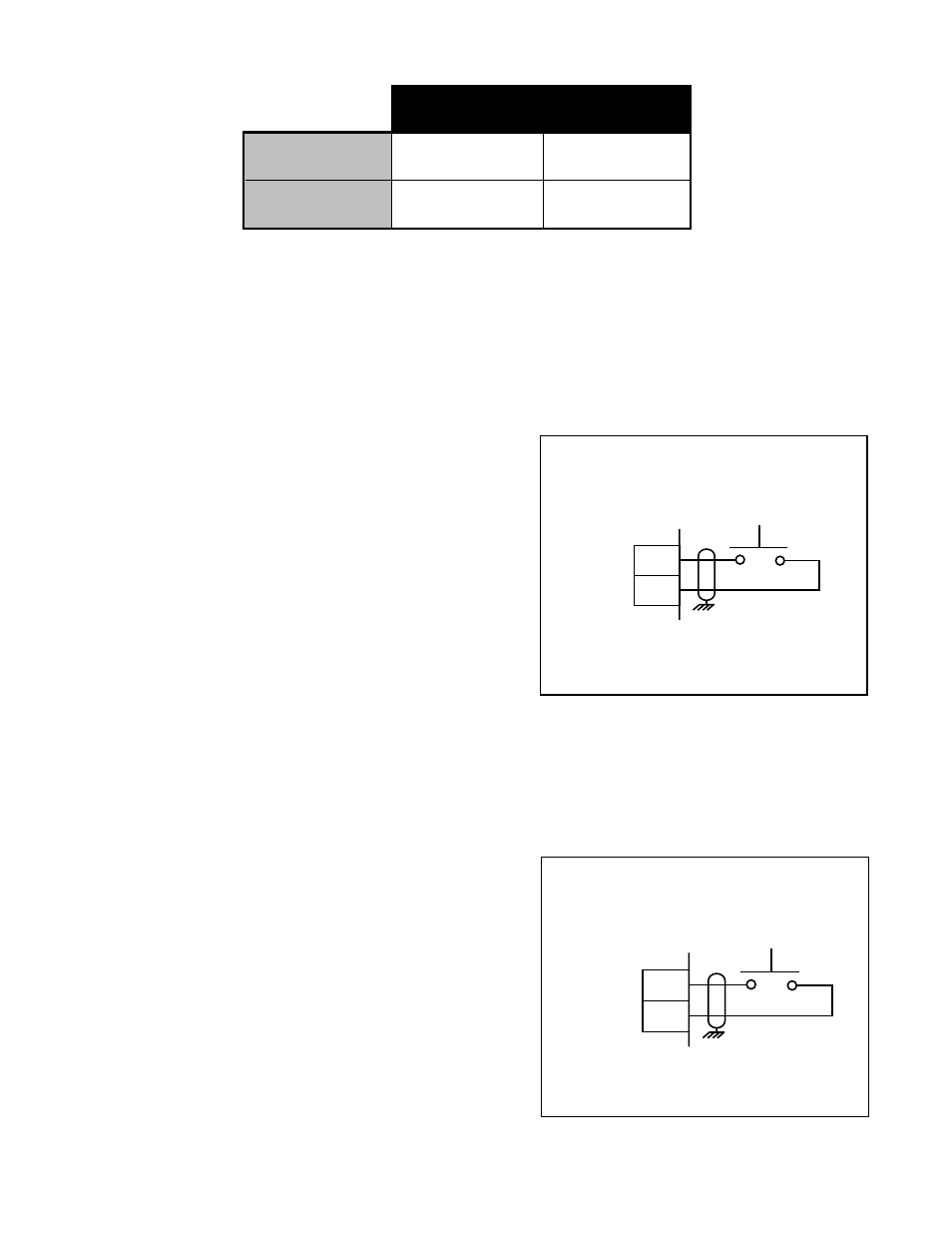

Figure 25 Reset Batch Count
RESET BATCH
COUNT
7
8
J7
DI_13
COM
Figure 24 Increment Batch Count
INCREMENT BATCH
COUNT
6
8
J7
DI_12
COM
Positive
Setpoint Value
Negative
Setpoint Value
Setpoint Direction
Open
Setpoint Direction
Closed
Forward
Command
Reverse
Command
Reverse
Command
Forward
Command
