Page 15
F–Stop
(J6 pins 1,3)
Digital Input 0
F-STOP is a momentary input. When it is opened, the
CX–1010 commands a zero speed immediately and
ignores the specified deceleration rate. However,
F–STOP does not hold zero speed or position (drive
disabled). As a momentary input, F-STOP is internally
latched and does not need to be maintained open by an
operator device.
R–Stop
(J6 pins 2, 3)
Digital Input 1
R–STOP is a momentary input. When it is opened, the
CX–1010 ramps to a zero speed command at the
specified deceleration rate. However, R–STOP does
not hold zero speed after the deceleration ramp has
been completed (drive disabled) . As a momentary
input, R–STOP is internally latched and does not need
to be maintained open by an operator device.
H–Stop
(J6 pins 3, 4)
Digital Input 2
H–STOP is a momentary input. When it is opened, the
CX–1010 ramps to a zero speed command at the
specified deceleration rate. In addition, H–STOP holds
zero speed after the deceleration ramp has been
completed (drive enabled). As a momentary input,
H–STOP is internally latched and does not need to be
maintained open by an operator device.

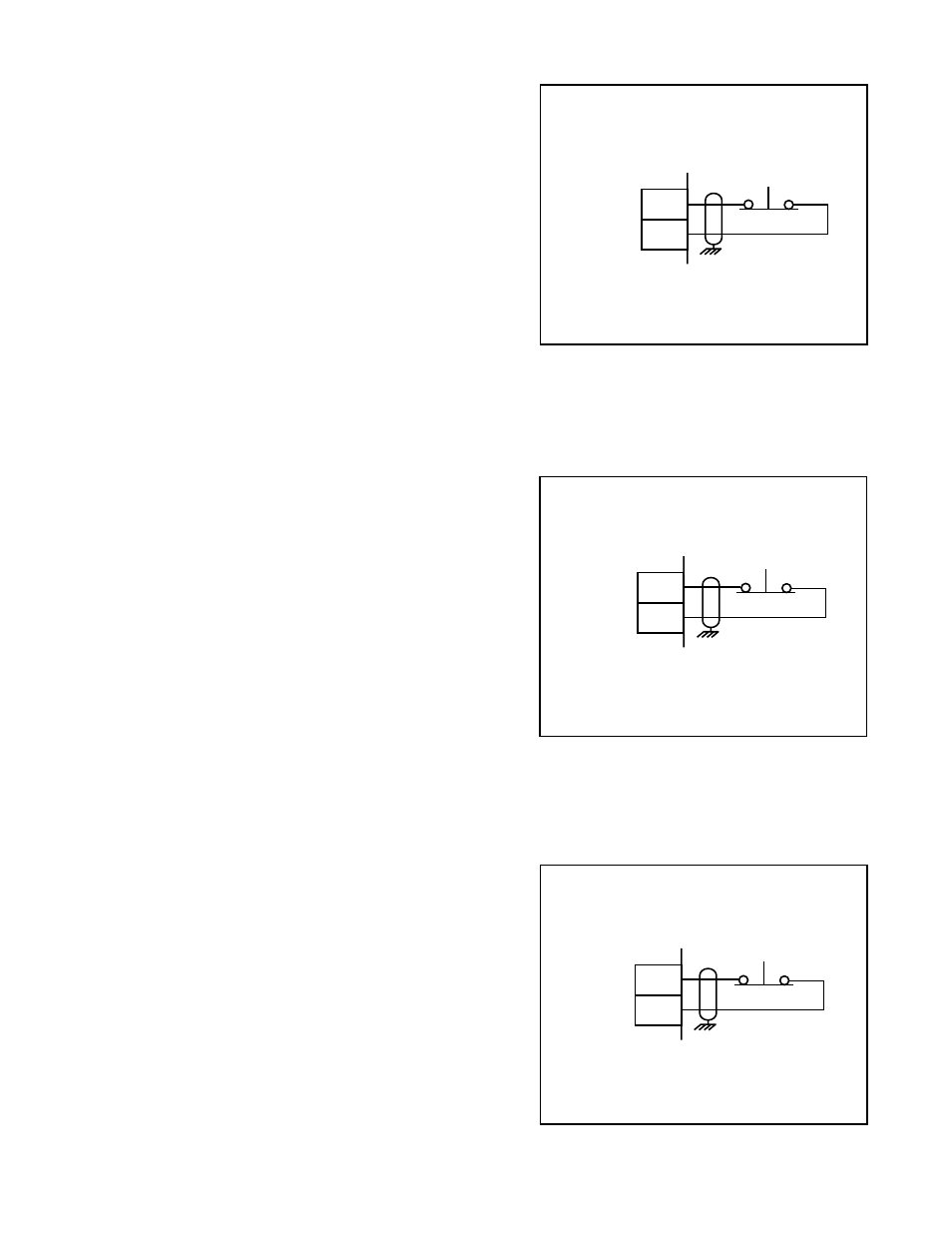

Figure 13 F–Stop
F-STOP
1
3
J6
DI_0
COM
Figure 14 R–Stop
R-STOP
2
3
J6
DI_1
COM
H-STOP
3
4
J6
COM
DI_2
Figure 15 H–Stop
