Page 39

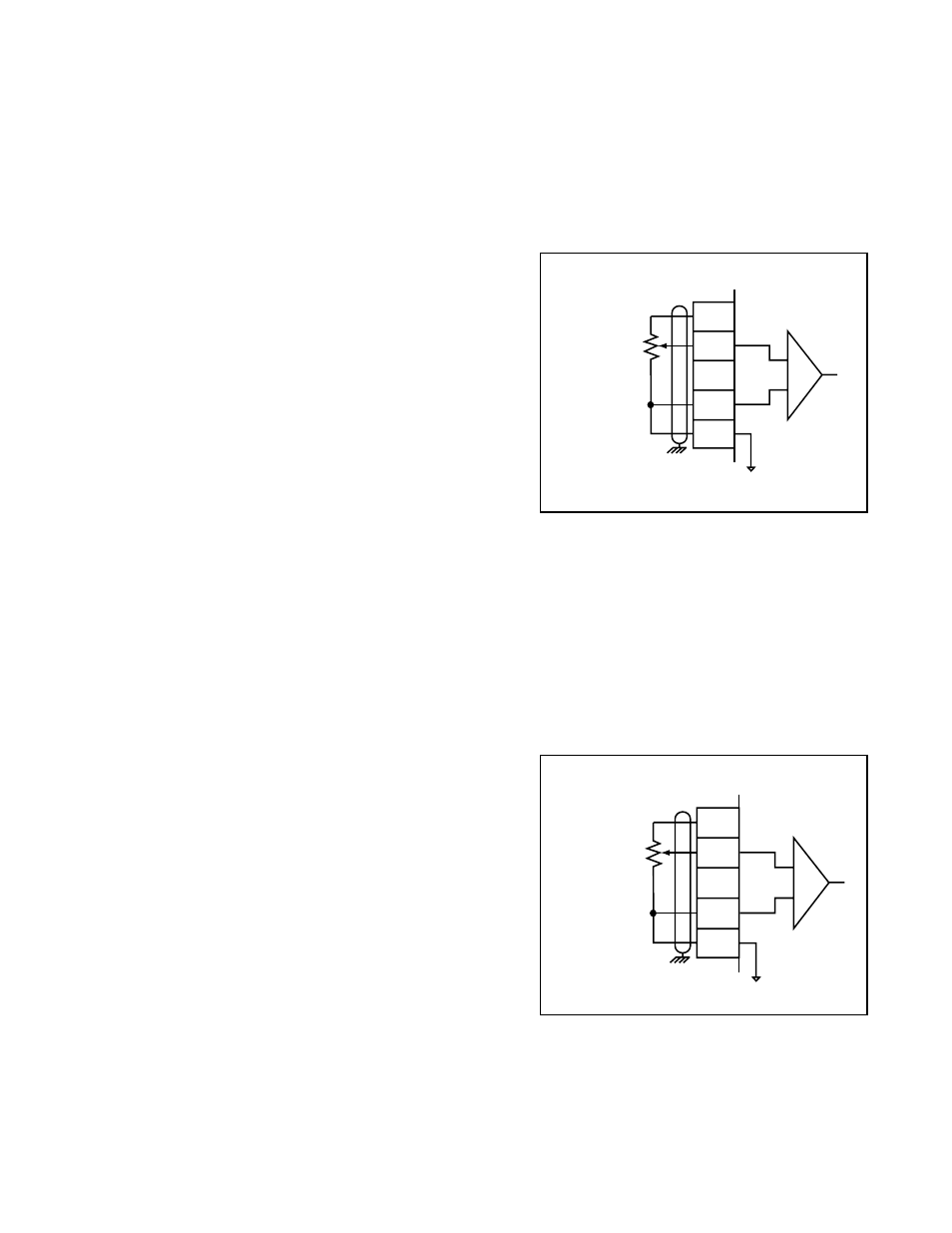

Figure 39 Analog Input 1:
Potentiometer Input
1
2
3
4
8
JA
+12V _Aux*
Common
+
–
Figure 40 Analog Input 2:
Potentiometer Input
1
5
6
7
8
JA
+12V _Aux*
Common
+
–
Analog Input 1:
Potentiometer Input Wiring
(JA, Pins 1, 2, 4, 8)
The Analog Input 1 can be used with a potentiometer
(e.g., dancer pot). Figure 39 displays this option.
* The total current from JA pin 1 and J5 pin 1
(+12V_Aux) must not exceed 150 mA.
Analog Input 2:
Potentiometer Input Wiring
(JA, Pins 1, 5, 7, 8)
The Analog Input 1 can be used with a potentiometer
(e.g., dancer pot). Figure 40 displays this option.
* The total current from JA pin 1 and J5 pin 1
(+12V_Aux) must not exceed 150 mA
