Page 11
Lead Frequency
(J5 pins 1, 2, 4, 5, 6)
Frequency Input 1
The LEAD FREQUENCY Input acts as the lead signal when the CX–1010 is in the Follower mode. The
wiring for the LEAD FREQUENCY is determined by the sensor. Figures 5 through 8 illustrate the wiring for
the various sensors. For signal level and performance specifications, refer to
CX-1010 Technical Reference
Manual, Appendices: Appendix A .
*
Total currant draw from the +12V_Aux (J5-Pin 1) should not
exceed 150 Milliamps.

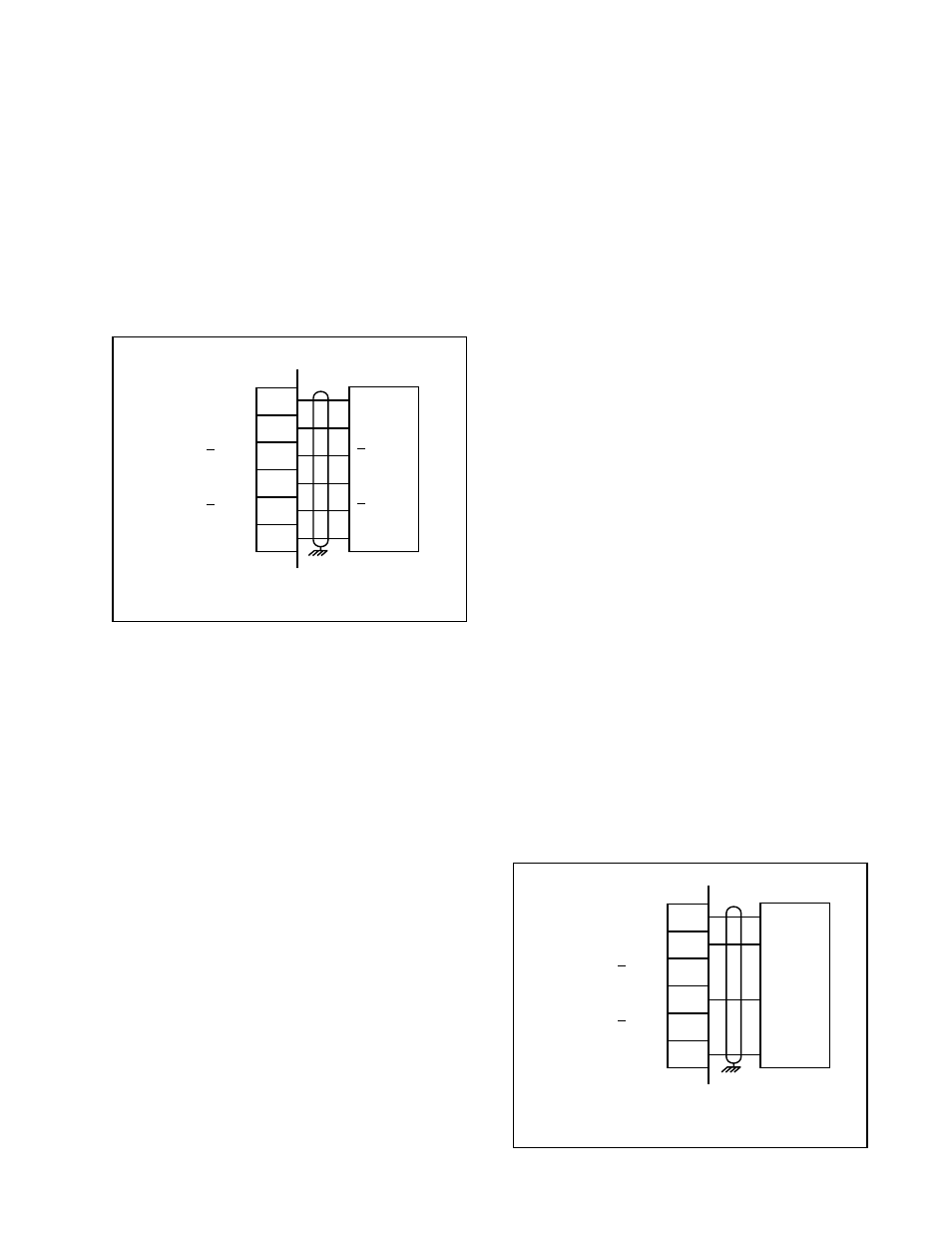

Figure 5 Lead Frequency
Quadrature Differential Sensor (Bidirectional)
Figure 6 Lead Frequency
Quadrature Single-Ended Sensor (Bidirectional)
+12V Pwr
A
A
B
B
Common
1
2
3
4
5
6
J5
*
+12V_Aux
FI_1A
FI_1A
FI_1B
FI_1B
COM
*
Total currant draw from the +12V_Aux (J5-Pin 1) should not
exceed 150 Milliamps.
+12V Pwr
A
B
Common
1
2
3
4
5
6
J5
*
+12V_Aux
FI_1A
FI_1A
FI_1B
FI_1B
COM
