Total currant draw from the +12V_Aux (J5-Pin 1) should not
exceed 150 Milliamps.
Figure 10 Feedback Frequency
Quadrature Single-Ended Sensor (Bidirectional)
Feedback Frequency
(J5 pins 1, 7, 8, 9, 10, 11)
Frequency Input 2
The FEEDBACK FREQUENCY detects the controlled motor speed. The wiring for FEEDBACK
FREQUENCY is determined by the sensor. Figures 9 through 12 illustrate the wiring for the various
sensors. For signal level and performance specifications refer to
CX-1010 Technical Reference Manual,
Appendices: Appendix A.

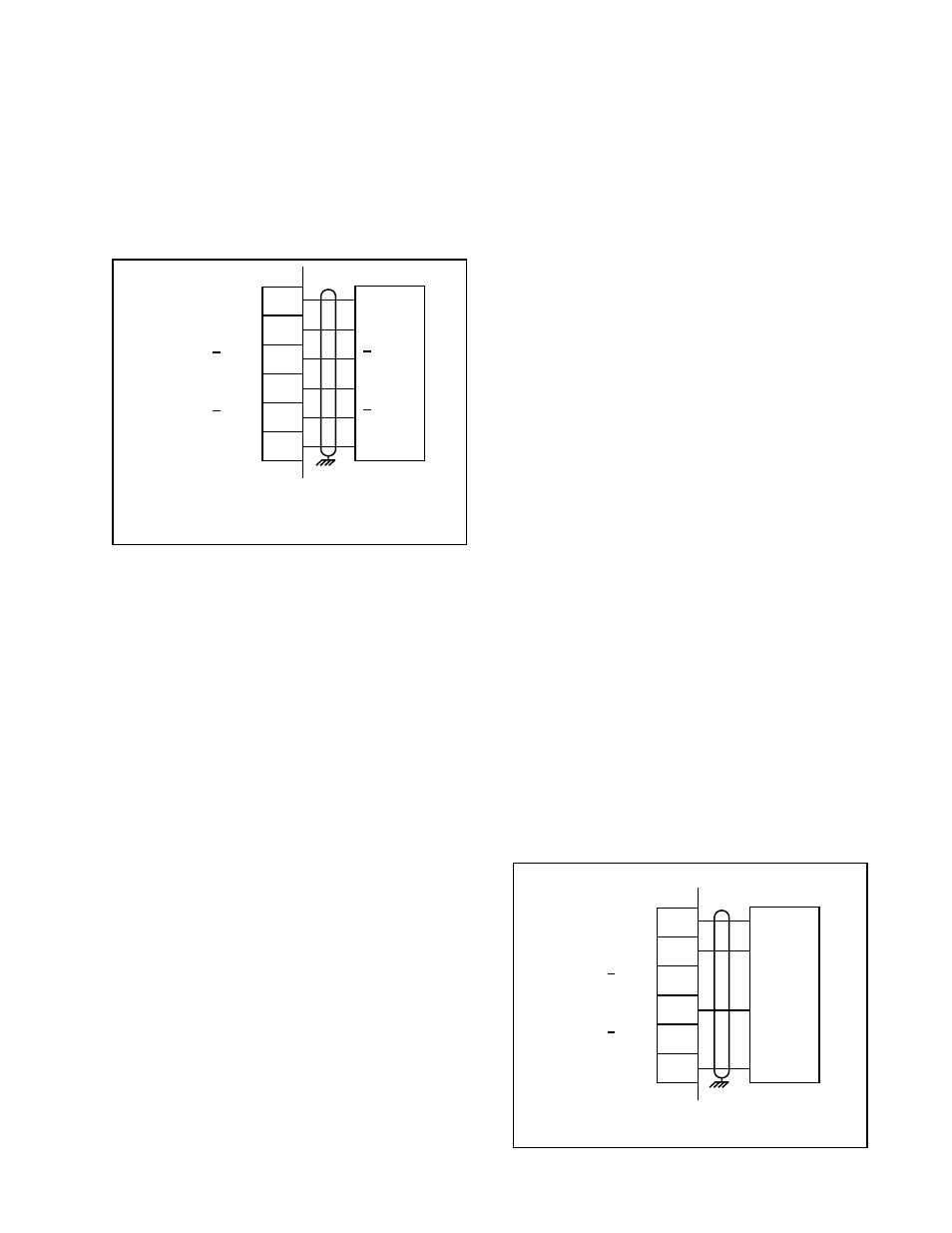

Figure 9 Feedback Frequency
Quadrature Differential Sensor (Bidirectional)
*
Total currant draw from the +12V_Aux (J5-Pin 1) should not
exceed 150 Milliamps.
+12V Pwr
A
A
B
B
Common
1
7
8
9
10
11
J5
*
+12V_Aux
FI_2A
FI_2A
FI_2B
FI_2B
COM
+12V Pwr
A
B
Common
1
7
8
9
10
11
J5
*
+12V_Aux
FI_2A
FI_2A
FI_2B
FI_2B
COM
