Important: When the USB option board is ordered, the numbers 1 or 2 shown in the second position of the
Model number designate that the printer is compatible with the Native USB drivers (TPG, Inc. vendor class and
printer class); see page 56 in this manual. When the numbers 3 or 4 are shown, the printer is compatible with the
RS-232C USB emulation drivers; see page 58 of this manual.
Available printer configurations
There are several configurations of the printer, depending on the combination of desired options.
Printer configuration identification

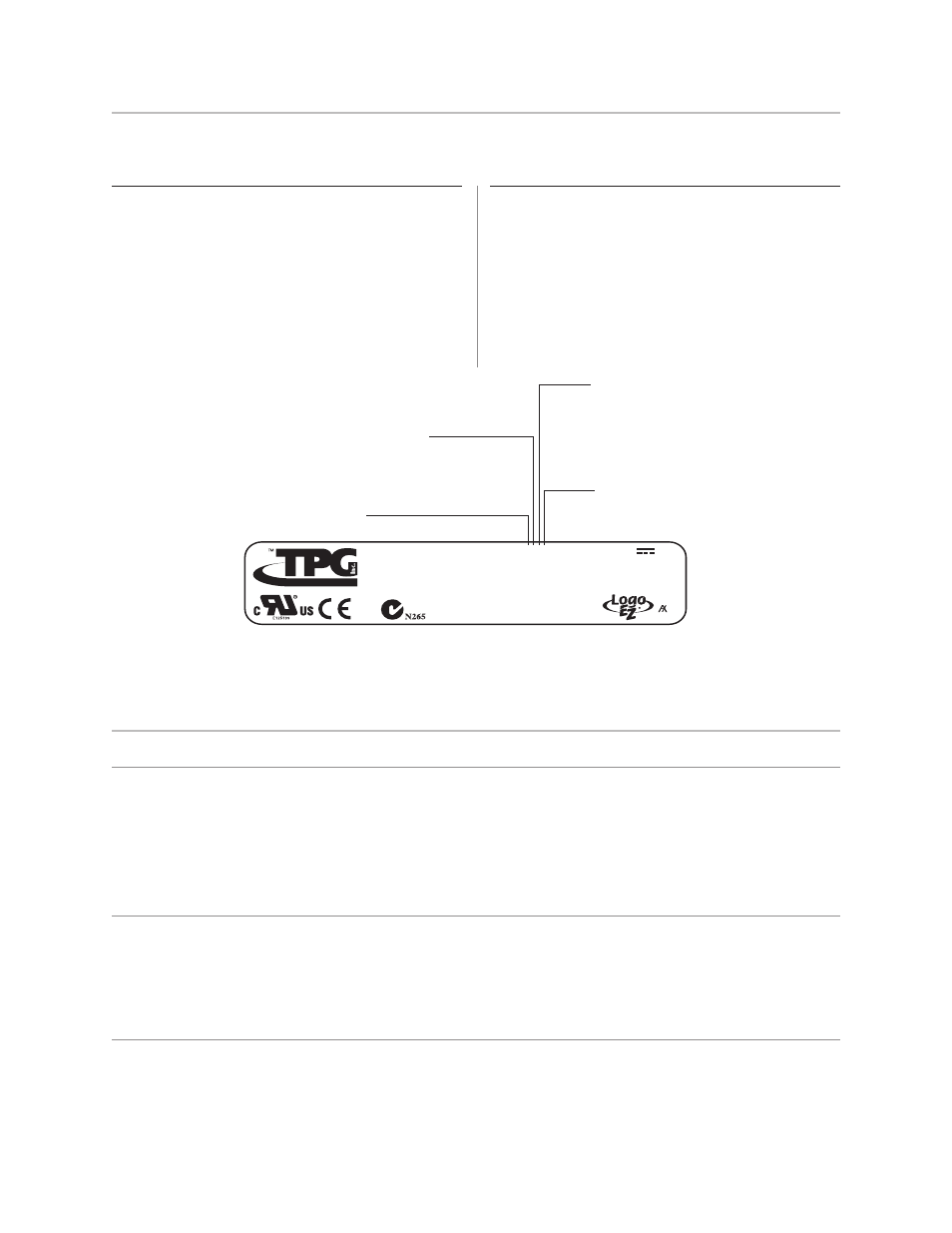

See the sample below to determine the printer
configuration. The printer configuration identification
(model ID) is located on the model label attached to the
right side of the printer. This information is also shown
on the installation quality report card. The model ID
description is shown below.
Communication interfaces
• RS-232C serial interface (9-pin)
• RS-232C serial interface (25-pin)
• Universal Serial Bus (USB)
• Combination RS-232C (9-pin) and USB
• IEEE 1284 parallel interface
• Ethernet interface
Standard features
Connectivity features Industry standard 9-pin and 25-pin RS-232C , USB (Universal Serial Bus), IEEE 1284
parallel or Ethernet interfaces are available options for communication with the host
computer.
These are provided via option boards: 9-pin RS-232C only, 25-pin RS-232C only,
USB only, a combined USB/9-pin RS-232C board, an IEEE 1284 parallel board or an
Ethernet board.
Cash drawer kickout connector and software support for up to two cash drawers.
Advanced interface design Sensors detect whether any of the covers are open, the paper is low in the receipt printer,
or the paper is positioned properly in the slip printer.
Software-controlled audible tone for various alerts.
Online configuration menu—the printer guides the user through its configuration
settings by printing instructions and a menu on receipt paper.
Electronics and firmware Industry-standard command set makes the printer compatible with existing software,
yet enables new features.
Remote diagnostics capability tracks important printer data.
continued...
Model
Cust. Part No.
Revision
Serial No. 24V
3.2A A760-1115
1 = light gray case
3 = dark gray case
1 = 1 MB Flash Memory
(TPG & Printer Class USB Drivers)
2 = 2 MB Flash Memory
(TPG & Printer Class USB Drivers)
3 = 1 MB USB
(Serial RS-232C USB emulation)
4 = 2 MB USB
(Serial RS-232C USB emulation)
7 = Ethernet 0 = no MICR
1 = MICR
2 = MICR with check flip
5 = check flip (only)
5 = knife
