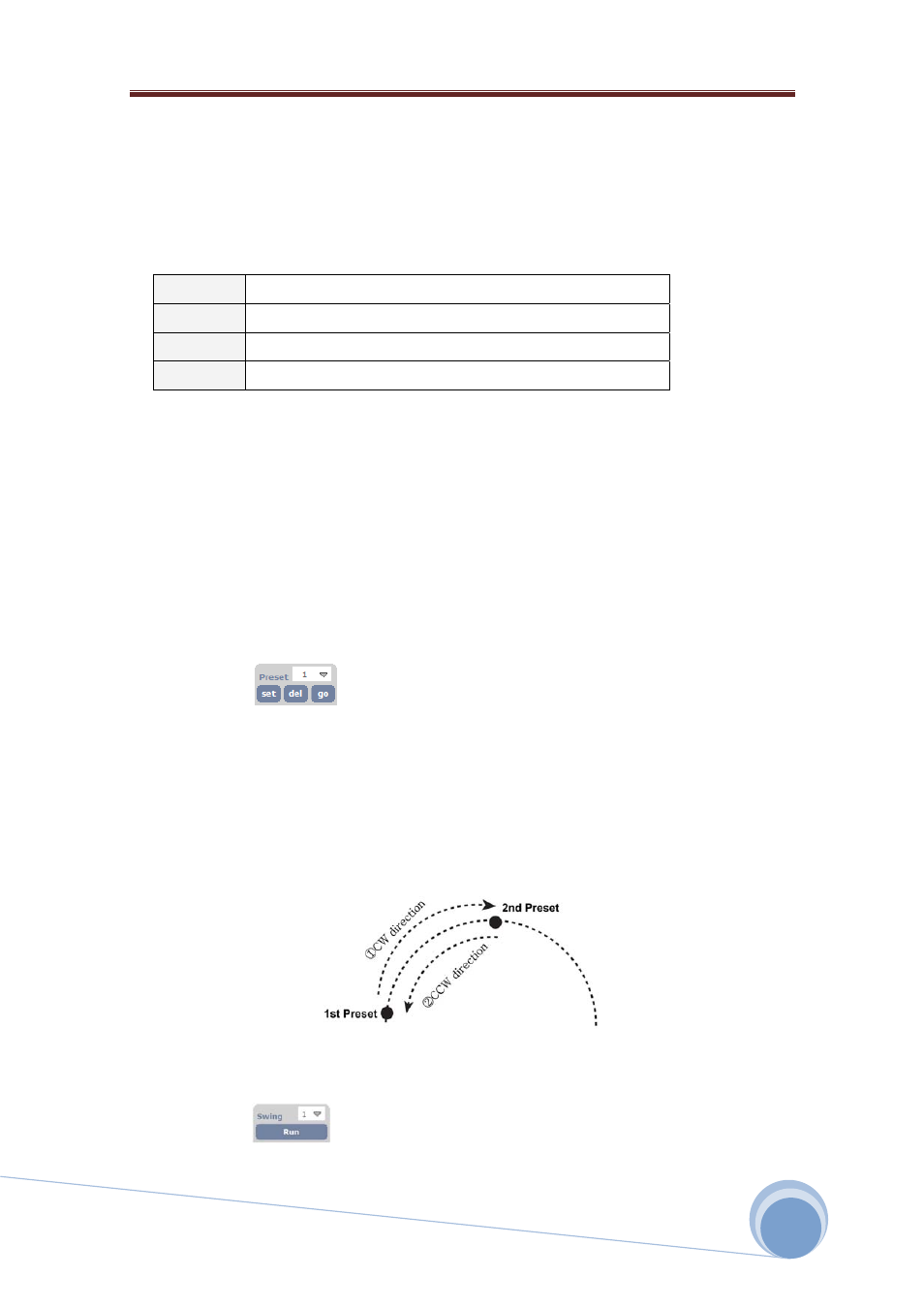

background image

bâàwÉÉÜ fÑxxw WÉÅx fxÜ|xб |С@åÇxà

22

3. Operation

Preset and Pattern Function Pre-Check

• Check how to operate preset and pattern function with web viewer or CMS in advance to operate camera function fully when using web viewer

or CMS.

• Refer to the following table.

Input[Preset Number] and press [Preset go] button.

Input[Preset Number] and press [Preset set] button.

Input[Pattern number] and press [Pattern run] button.

Input[Preset Number] and press [Pattern red] button.

Starting OSD Menu

• Function : Using the OSD menu, Preset, Pattern, Swing, Group and Alarm I/O function can be configured for each application.

• Enter Menu : press Munu On Button in setting Web page

Preset

• Function

Max. 127 positions can be stored as Preset position. The Preset number can be assigned from 1 to 128, but

95

is reserved for

starting OSD menu.

Camera characteristics (i.e. White Balance, Auto Exposure) can be set up independently for each preset. Label should be blank

and Relay Outputs should be set to OFF as default. “Camera Adjust” should be set “GLOBAL” as default. All characteristics can

be set up in OSD menu.

• Set Preset

<Set Preset> [1~128]

• Run Preset

<Go Preset> [1~128]

• Delete Preset

To delete Preset, use del del-button or OSD menu

Swing

• Function

By using Swing function, you can make camera to move between 2 Preset positions repeatedly.

When swing function runs, camera moves from the preset assigned as the 1st point to the preset assigned as the 2nd point

in CW(Clockwise) direction. Then camera moves from the preset assigned as the 2nd point to the preset assigned as the 1st

point in CCW(Counterclockwise) direction.

In case that the preset assigned as the 1st point is same as the preset assigned as the 2nd point,

Camera turns on its axis by 360° in CW(Clockwise) direction and then it turns on its axis by 360° in

CCW(Counterclockwise) direction. Speed can be set up from 1°/sec to 180°/sec

• Set Swing

To set Swing, use OSD menu

• Run Swing

<Run Swing> [1~8]

• Deleting Swing

To delete Swing, use OSD menu.
