CM-ET Prostar User Manual
Page 14
13
220-3-50, 230-3-60
HOISTS WITH CONTACTOR (Black Control Station)
380-3-50, 415-3-50, 460-3-60
HOISTS WITH CONTACTOR (Black Control Station)

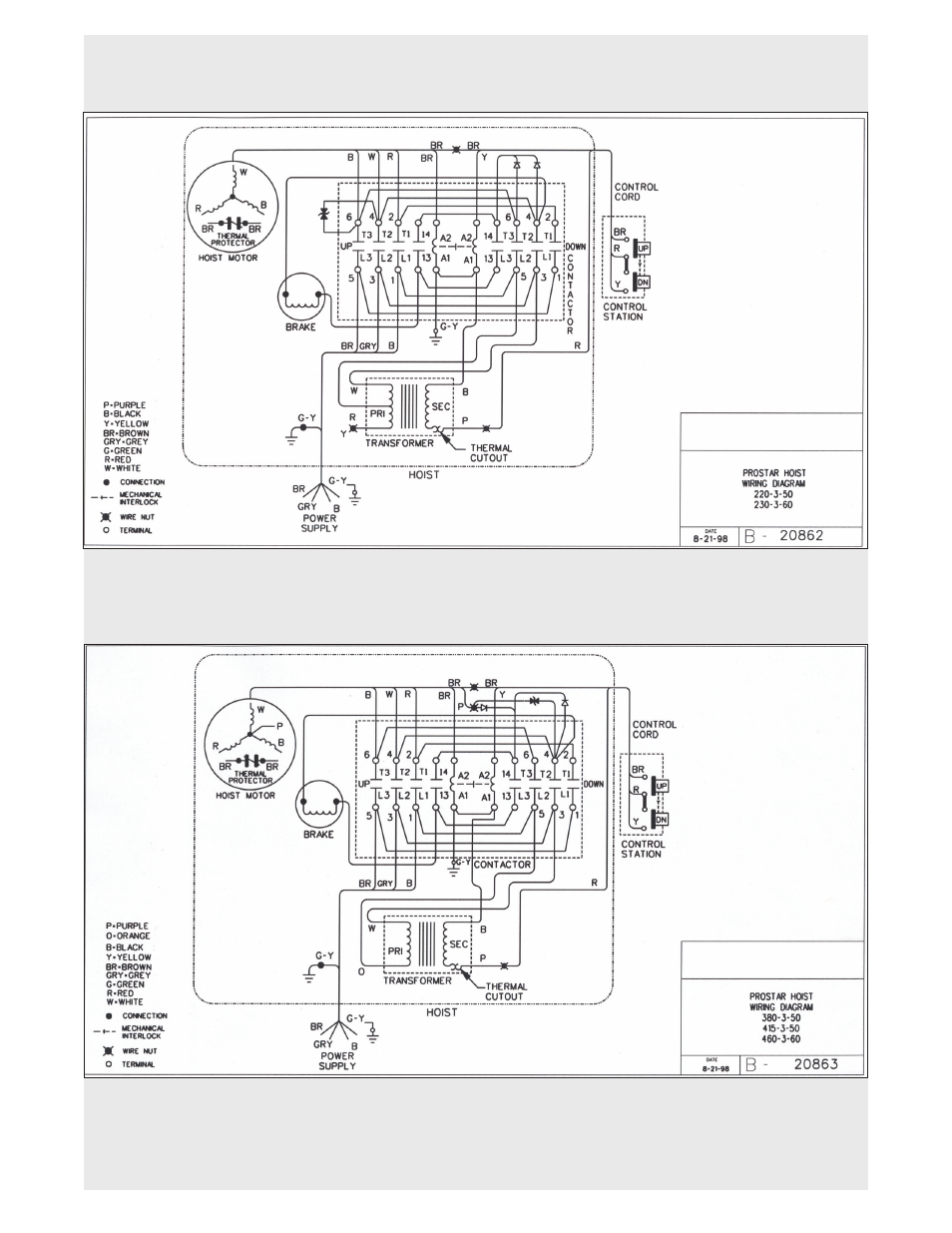

Wiring Diagrams
THE FOLLOWING WIRING DIAGRAMS ARE REPRESENTATIVE. FOR ACTUAL WIRING DIAGRAM, REFER TO THE DIAGRAM
SUPPLIED WITH THE HOIST. NOTE: FOR 575-3-60 UNITS, REFER TO WIRING DIAGRAM SUPPLIED WITH HOISTS.
