68
 Available 1 ~ 255 Preset numbers can be saved it depends on camera specification.
 Press Menu button to pop-up PTZ camera OSD setup screen and set up Tour and Pattern items.
- Since these functions make use of a memory function of the camera itself, a user should set them in Camera OSD.
- Once a user completes the setup, close the Camera OSD menu.
- A user can conveniently use Tour and Pattern functions simply by Clicking Tour and Pattern buttons.
- Please refer the PTZ camera manual for instruction of Tour and Pattern.
NOTE
Suppose a command for using Tour function is 71 ~ 79 + Preset and if you had set Tour to 70 (See Section 4.3.5), use
Preset No: 1 ~ 9 + Tour button to activate the Tour function (70 + 1~9).
NOTE
It is required to set Menu as Preset number 95 from camera in order to call camera menu display by Clicking ‘menu’ button or
using 95+Goto button. Please refer the PTZ camera manual for details.

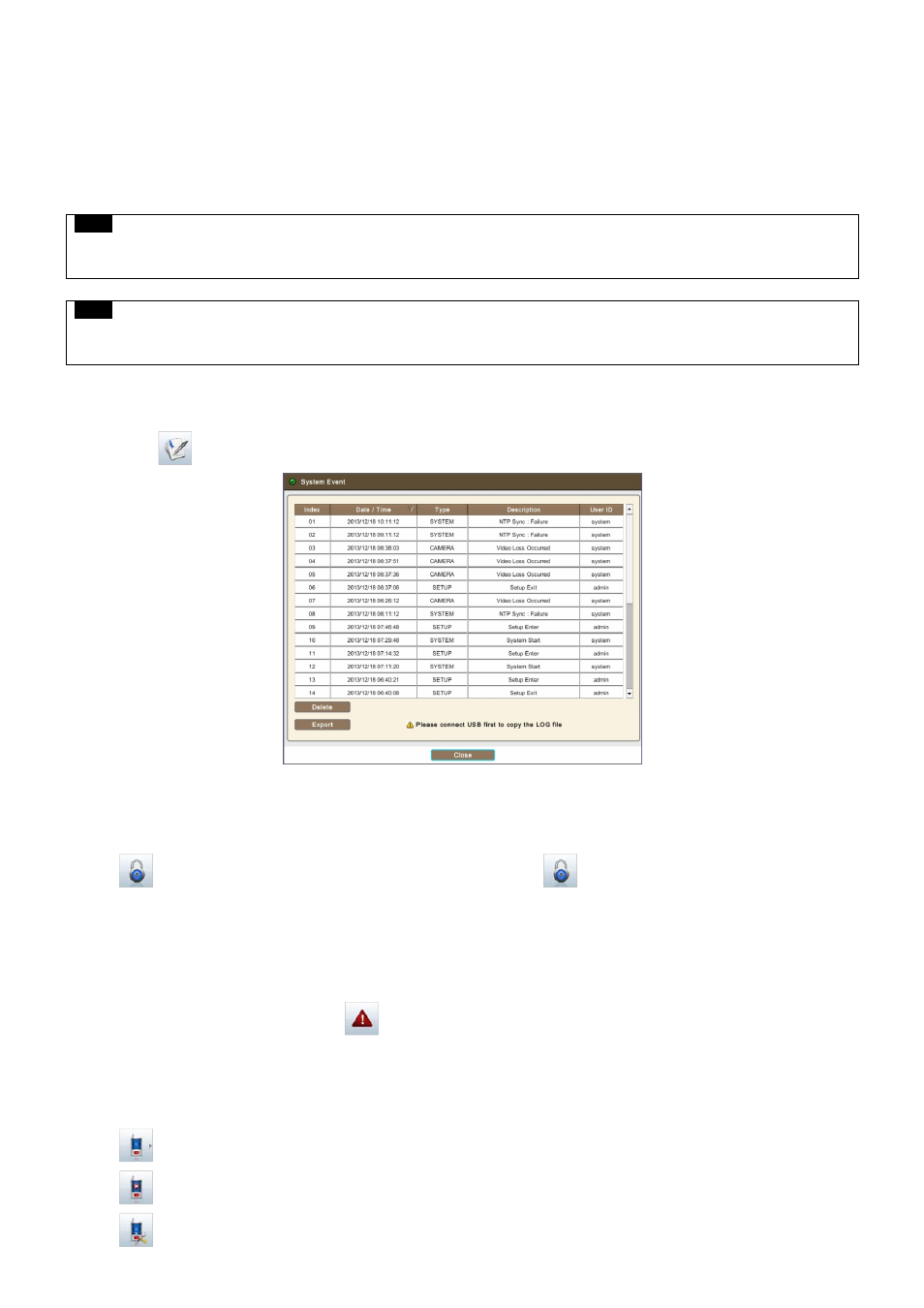

5.1.6 System Log
 Pleas Press key and the System Log screen will display.
 System Event shows all logs of actions taken by users.
5.1.7 Key Lock
 Press to operate the key lock function. This function is indicated by icon in the center of the screen.
 Once the Key Lock function is activated, a user cannot use any key. If wish to use a key, please enter the correct password to
release the key lock function.
5.1.8 Emergency Recording
 When a user presses EMERGENCY key or , recording starts right away regardless of the recording mode. A user can
modify the Emergency recording conditions. SETUP> RECORD > EMERGENCY
5.1.9 Alarm Out Control and Acknowledge
 Press and will be able to activate Acknowledge or Open Alarm out Control.
 Press to instantly disable Alarm out signal.
 Press to open alarm out control window to manually activate Alarm out.
