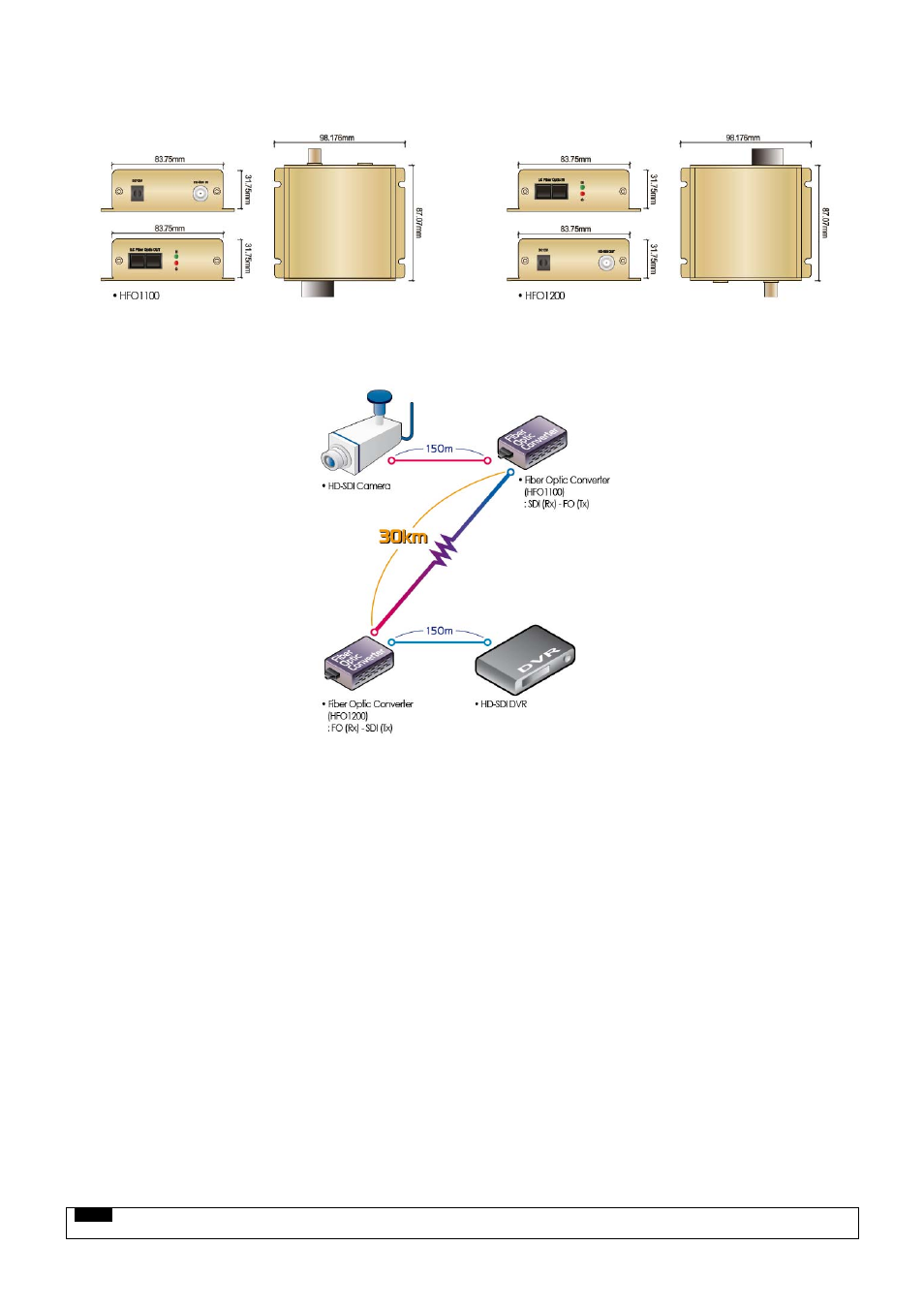

13.8.6 System Dimension Diagram
13.8.7 Connector Wiring
13.8.7.1 HD-SDI in Connections
 Connect HD-SDI Camera to ‘HD-SDI IN’ of HFO1200 using 75 ohm coaxial cable
13.8.7.2 Fiber Optic Out Connections
 Connect the “LC Fiber Optic out” of HFO1200 which can be connected to opposite site of Fiber optic converter (HFO 1100) by
using the fiber optic cable.
13.8.7.3 Fiber Optic in Connections
 Connect the fiber optic cable which is coming from the opposite site of HFO1200 to “LC Fiber Optic In” of HFO 1100.
13.8.7.4 HD-SDI out connections
 Connect the ‘HD-SDI OUT’ of HFO 1200 to ‘HD-SDI IN’ of HD-SDI device by using 75ohm coaxial cable.
13.8.7.5 Power Supply Connections
 Plug the power supply adapter (DC 12V, 3.33A) which is included in this product to ’DC12V’ connector and plug another side
to power source and Input voltage is a free volt (100 VAC ~ 240 VAC).
13.8.8 Cable
 75 ohm coaxial cable is needed
 Fiber Optic Cable
NOTE
The cables above are not included in the package.
