60
② Click (  ) on date needed to be registered as holiday.
③ Click (  ) ADD button and Virtual keyboard will display to input description of holiday
④ Please choose ‘OK’ to confirm the input and the date will be copied to the Holidays table.
⑤ If wish to delete the registration of a certain holiday, please Click  button next to the Holiday table.
 Since holidays may vary every year, we recommend user to update on a regular basis.
4.4.3 Motion

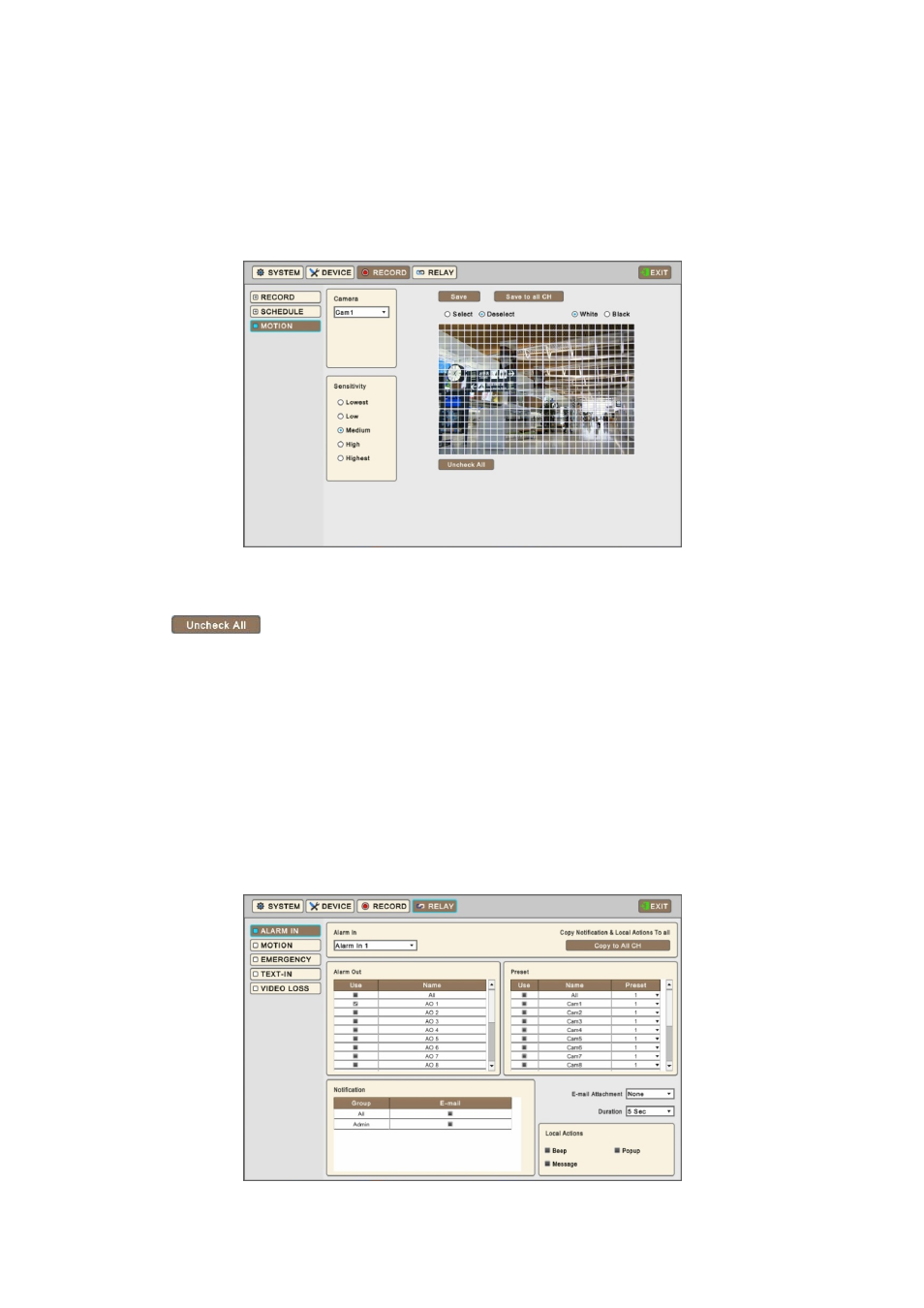

 Please Click ( ) RECORD>Motion and the following screen will display.
 Click ( ) Drop-down list of Camera box to select Camera.
 Please set the motion detection area as follows:
① Select Sensitivity in Sensitivity box (Lowest, Low, Medium, High and Highest)
② Click (  ) to Deselect the area first.
③ Click (  ) ‘Select’ and will be able to select the area of detection on the grid.
④ Click blocks to activate.
⑤ Click (
 ) Save button to save setting
 Drag and Drop Mouse Cursor on Blocks and rows/columns to select/unselect the areas.
 Repeat the procedure for Camera No. 2 to 16. If a user wants every camera to have the same mode, please Click ( ) “Save to
all CH” button.
 Click ( ) White or Black to change color of line on the grid.
4.5 RELAY
 Please Click ( ) RELAY and the following screen will display.
 The Relay menu allows a user to setup action plans when events (Alarm In, Motion, Emergency, Text-In, and Video Loss)
happen. A user may activate Alarm Out, PTZ Preset, Email Notification, Beeping, OSD popup and Message by those.
