63
4.5.4 TEXT-IN

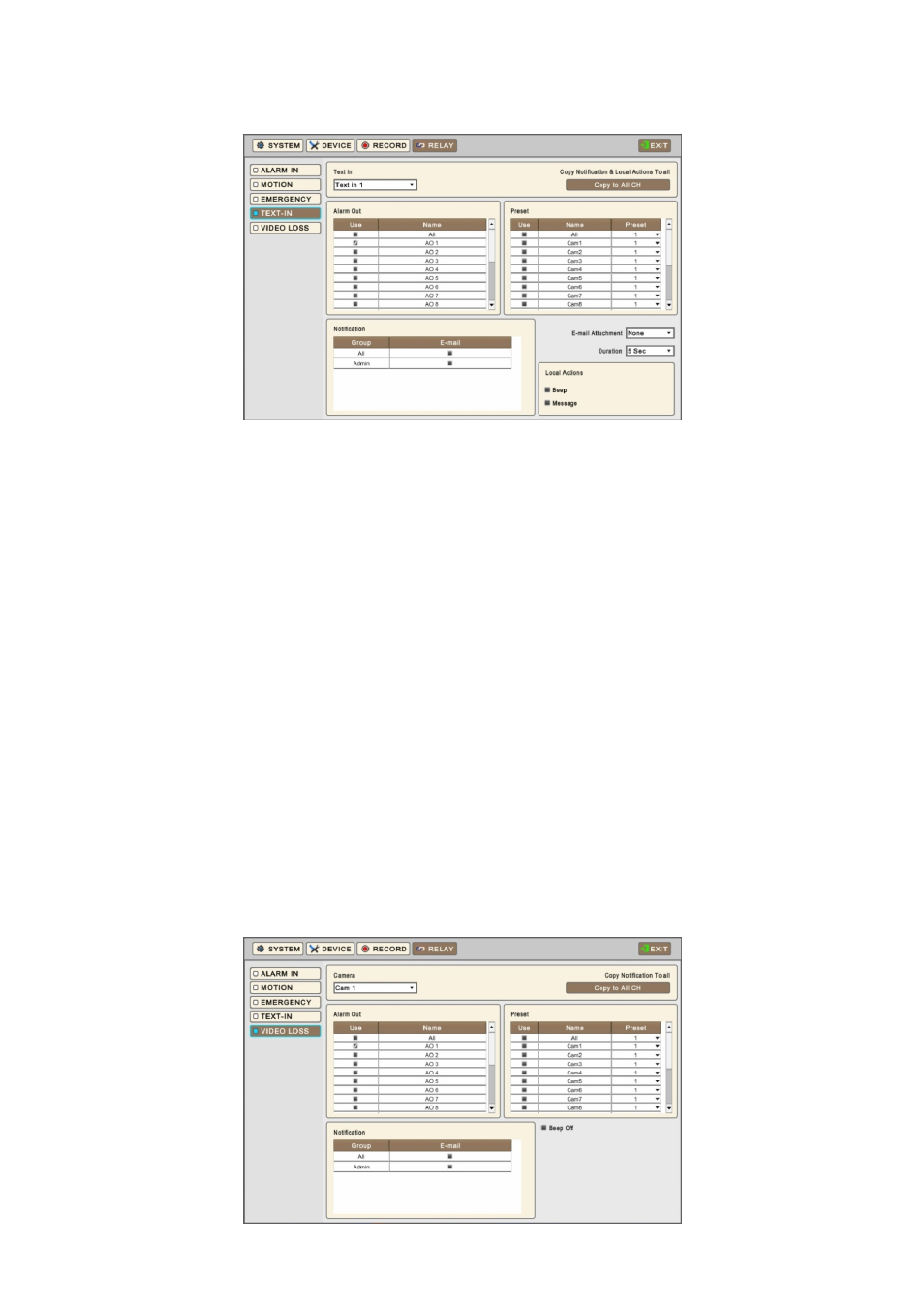

 Please Click ( ) RELAY>TEXT-IN and the following screen will display.
 Select cameras for Preset, Alarm Out and Notification to use when Text In comes to DVR. (PTZ Preset is frequently used for
this case).
 Link Notification displays E-mail addresses registered in System>General>Account>User>Email
 Please follow the setup procedures below.
① Click (  ) Drop-down list of Text In box and select Text 1.
② Select alarm outputs to be worked when Text In 1 is on. Please check  a check box of use column on Alarm Out box.
More than two alarm outputs can be set. If Click (  ) ‘All’ of use box, all items are checked/unchecked at once.
③ Select cameras for preset when Text In 1 is on. Please check  a check box of use column on Preset frame. More than
two cameras can be set. If Click (  ) ‘All’ of use column, all items are checked/unchecked at once
④ Click (  ) Drop-down list of Preset to change Cameras preset. If Click ( ) Drop-down list of all preset box, all items are
changed at once
⑤ Select group for notification when Text In 1 is on. Please check  a check box of E-Mail box. More than two Groups can
be set.
⑥ Click (  ) Drop-down list of E-mail Attachment box to attach None, JPEG or EXE.
⑦ Click (  ) Drop-down list of Duration box to set the duration of recorded data for attached EXE.
⑧ Select Local Actions
-Beep: When Text In 1 is on, it will give the alarm sound
-Message: When Text In 1 is on, the alarm message will pop up on the OSD
 Repeat the above procedure for Text In 2~ Text In 4
 Click ( ) Copy to All CH button to copy Notification & Local Actions to all channels.
4.5.5 VIDEO LOSS
 Please Click ( ) RELAY>VIDEO LOSS and the following screen will display.
 Select Alarm out, Preset and Notification to use when Video Loss occurs on each channel.
