13.4 HSC2410
13.4.1 Introduction
 HSC 2410 is a video signal converter from SD (Analog video signal) to HD-SDI. It is 4 In / 1 Out SD to SDI signal converter
which converts four analog signal to one HD-SDI signal.
13.4.2 Features
 Convert 4 of SD to 1CH HD-SDI
 NTSC/PAL Input Signal Auto Detection
 Output Signal Format 1080p 30
 Vertical Frequency Auto-Track
 Free Voltage 12VDC, 1A
 Compact Size & Light Weight
13.4.3 Technical Specification
Model HSC 2410
Input Signal
Analog Input 75Ω, 1Vp-p/BNC-F, 4CH
NTSC or PAL (Auto Detection)
Output Signal HD-SDI SMPTE 292M
Output Format 1080p 30
Input Return Loss (BNC) >-15dB, 270 Mb
Output Return Loss (BNC) >-15dB, 1.5 Gb
Input Impedance (BNC) 75 Ohms +/- 1%
Output Impedance (BNC) 75 Ohms +/- 1%
Power Consumption Free Voltage 12VDC, 1A
Dimension (W*H*D) 103mm x 31.5mm x 88.09mm
HD-SDI Connector BNC Female
13.4.4 Unpacking
 This equipment is an electronic appliance, so it should be handled with special care.
13.4.5 Service
 If there is any problem in the product, please contact a supplier or a distributor.

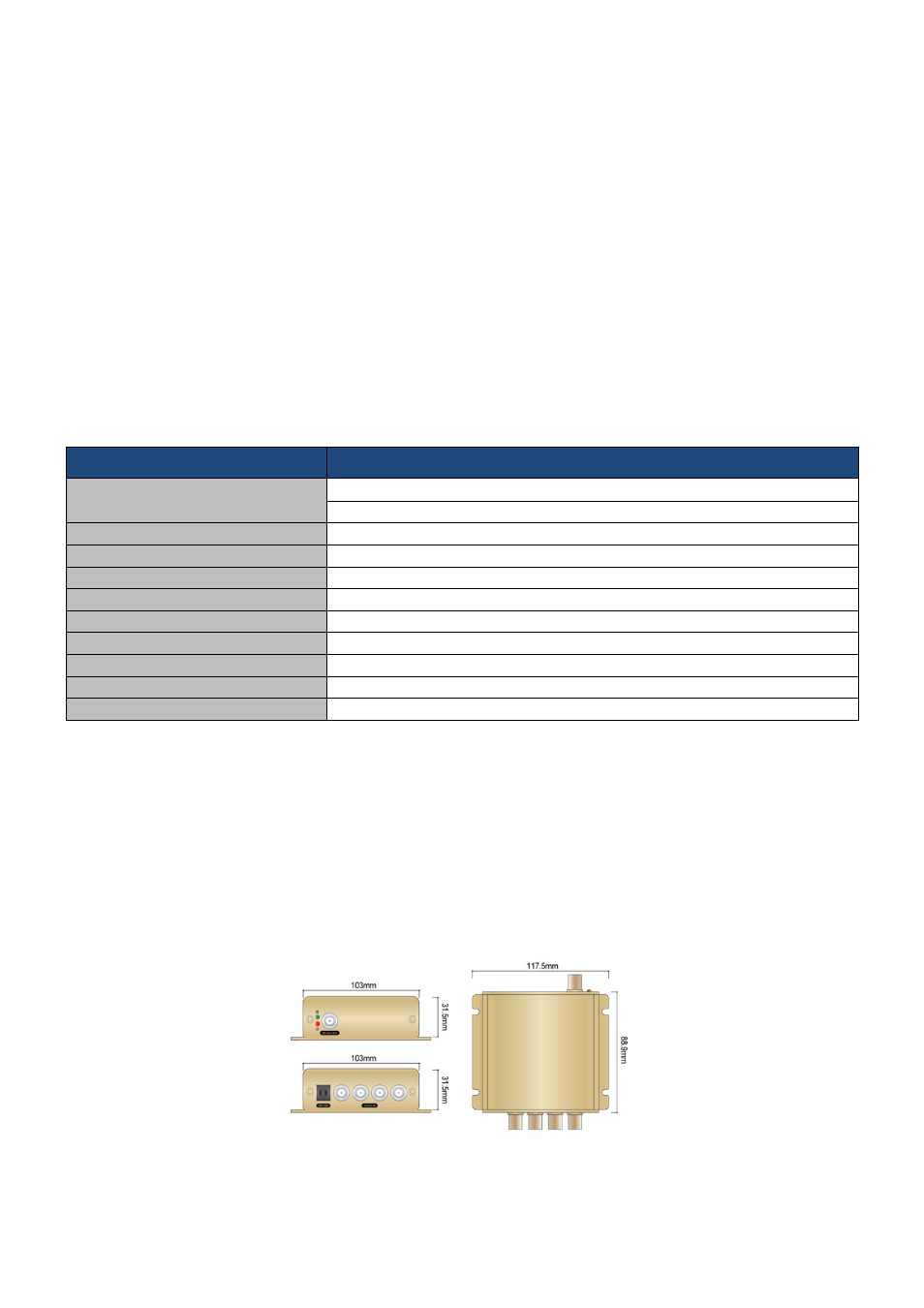

13.4.6 System Dimension Diagram
