Kolpin 21515 - Rhino Grip XL – Double User Manual
Page 2
Rev. 02

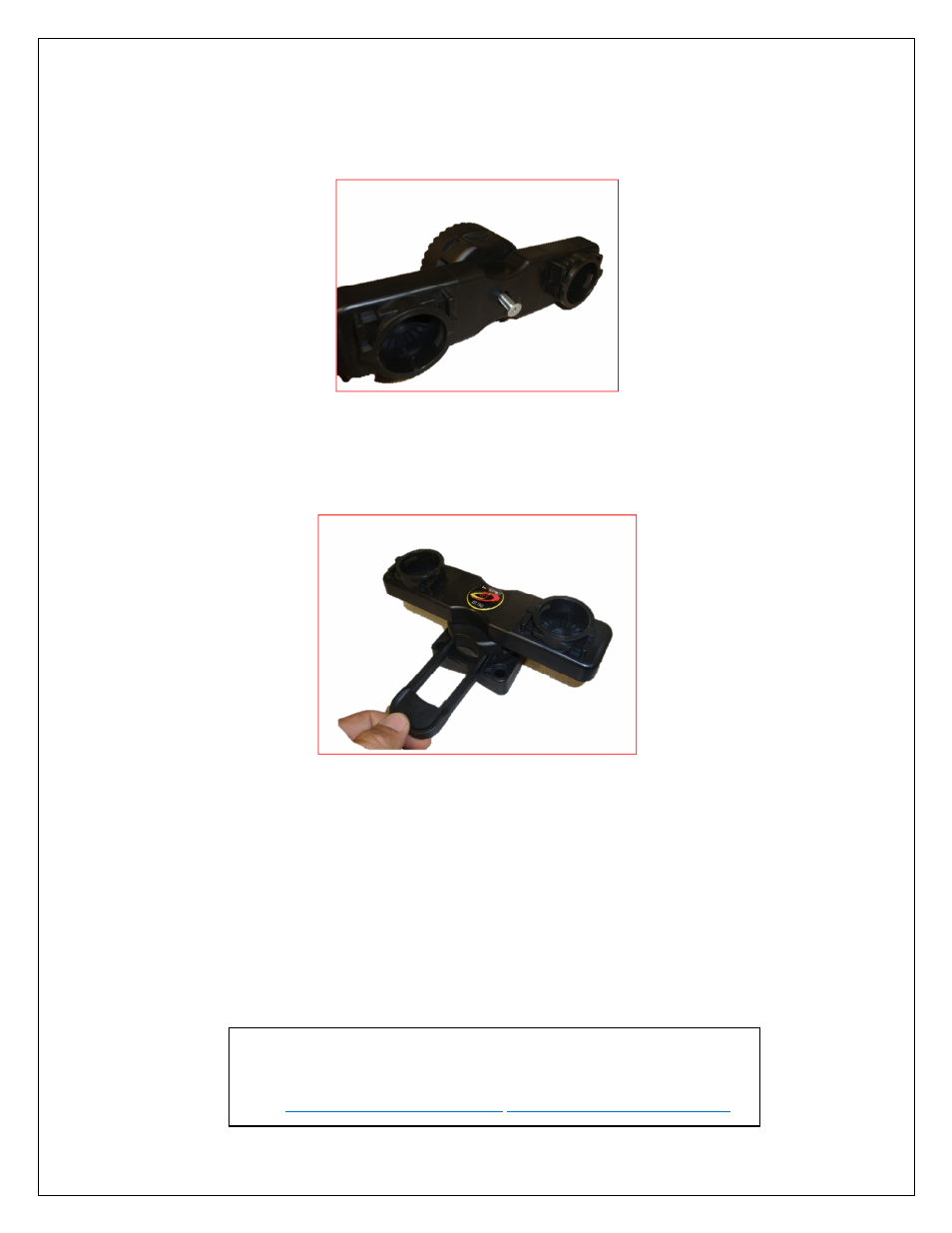

5. Place the M6 black nylon locking nut into the bottom of the connector, so that the nylon part of the nut
is facing out towards you.
6. Take the flat head machine screw and tipping the doubler plate so that the connector is facing upwards;
start twisting the machine screw until it engages the nut in the connector. Tighten securely.
7. Place the 2 extra Kolpin logos over the flat head screw.
8. Insert the doubler plate assembly into the mounting base, already attached to ATV, and position as
desired.
9. Secure the double plate assembly to the mounting base using the Kwik clip provided.
10. Insert the Rhino Grips in the desired position on the doubler plate and secure using the Kwik Clips
provided. NOTE: Grip can rotate 360° to accommodate any angle, and the grip can tilt 0° to 180° at 45°
increments.
11. Repeat on opposite side of vehicle.
Kolpin Outdoors, Inc.
205 N. Depot Street, Fox Lake, WI 53933
Phone #: (877) 9KOLPIN or (920) 928-3118
www.kolpinpowersports.com [email protected]
