Kolpin 2691 – Ranger 800cc Crossover Tool Box - Manual (Page 2)

Rev.
1
98510

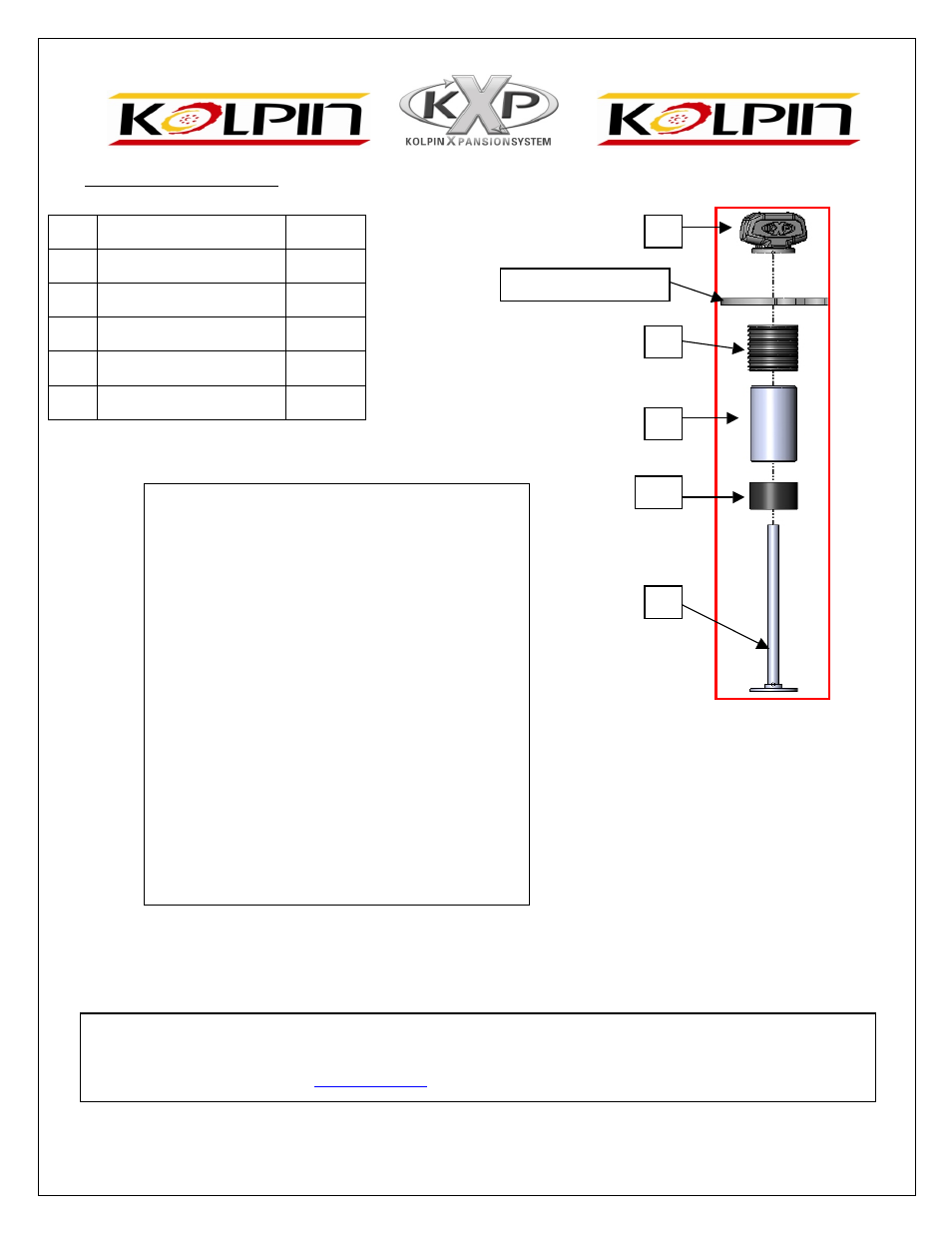

Parts
List:
(Fits
UTV)
Item Description Quantity
1 KXP Handle 1
2 Threaded Rod 1
3 Large Rubber Expander 1
4 Small Rubber Expander* 1
5 Large Plastic Spacer 1
5
6*
4
1
7
Mounting
Plate
1. Slide the expansion system together in
the order shown through the accessory
mounting plate and secure with the KXP
Handle-do not tighten at this time.
* NOTE: the rubber expander for both
systems has a counter-bored relief, that
mates to the threaded rod. Please be
sure to install correctly!
2. Place the accessory on the rack or bed
rail in the desired location and twist the
KXP handle clockwise, until tight, to
engage the plunger and secure the
accessory. Do Not Over Tighten-secure
fastening is possible without over
stressing components!
Kolpin now offers many accessory options for Polaris ATV and UTV models. For a complete listing of these KXP
accessories and Kolpin’s KXP Plungers that are compatible with Polaris® Lock & Ride® System, be sure to check
out www.kolpin.com , as new items will be coming soon.
