Kolpin 20129 – Gun Boot IV Metal Bracket User Manual
Page 2
Rev. 01 4/30/2012
2.Drill 4 bolt holes in side rail (2 for Front Bracket and 2 for Rear bracket).
3.Mount the Front Bracket to the side rail using the 5/16” nuts, bolts, and washers.
4.Mount the Rear Bracket to the side rail using the 5/16” nuts, bolts, and washers.
5.Slide muzzle end of Gun Boot IV into front Bracket so that you may pin the Gun Boot

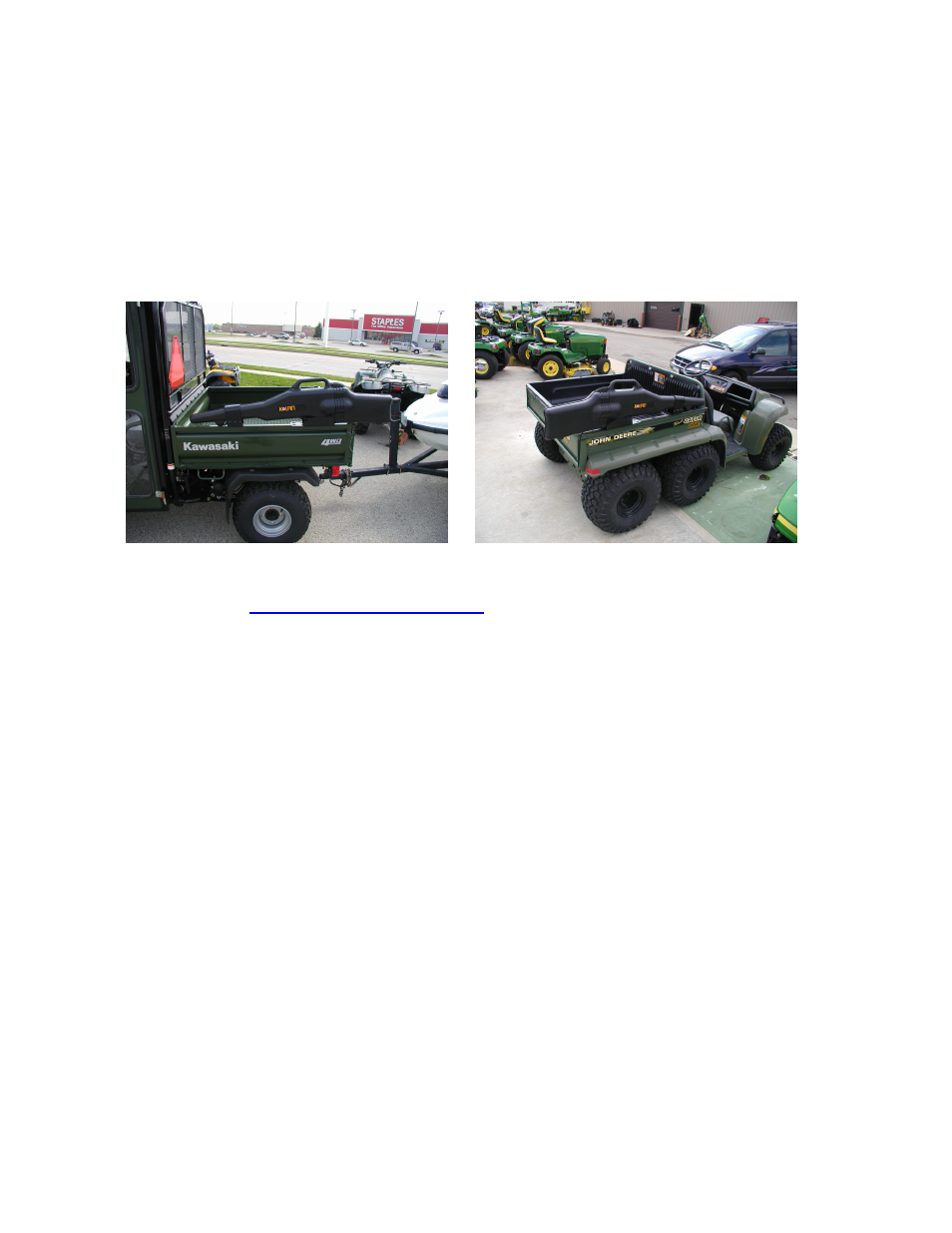

IV into the Rear Bracket. Your Gun Boot should look like the following when properly
mounted:
For additional assistance, please contact our customer service department at (877)-
9KOLPIN or
.
