Drag harrow – Kolpin 86840 - 4' LIGHT Drag Harrow User Manual
Page 2

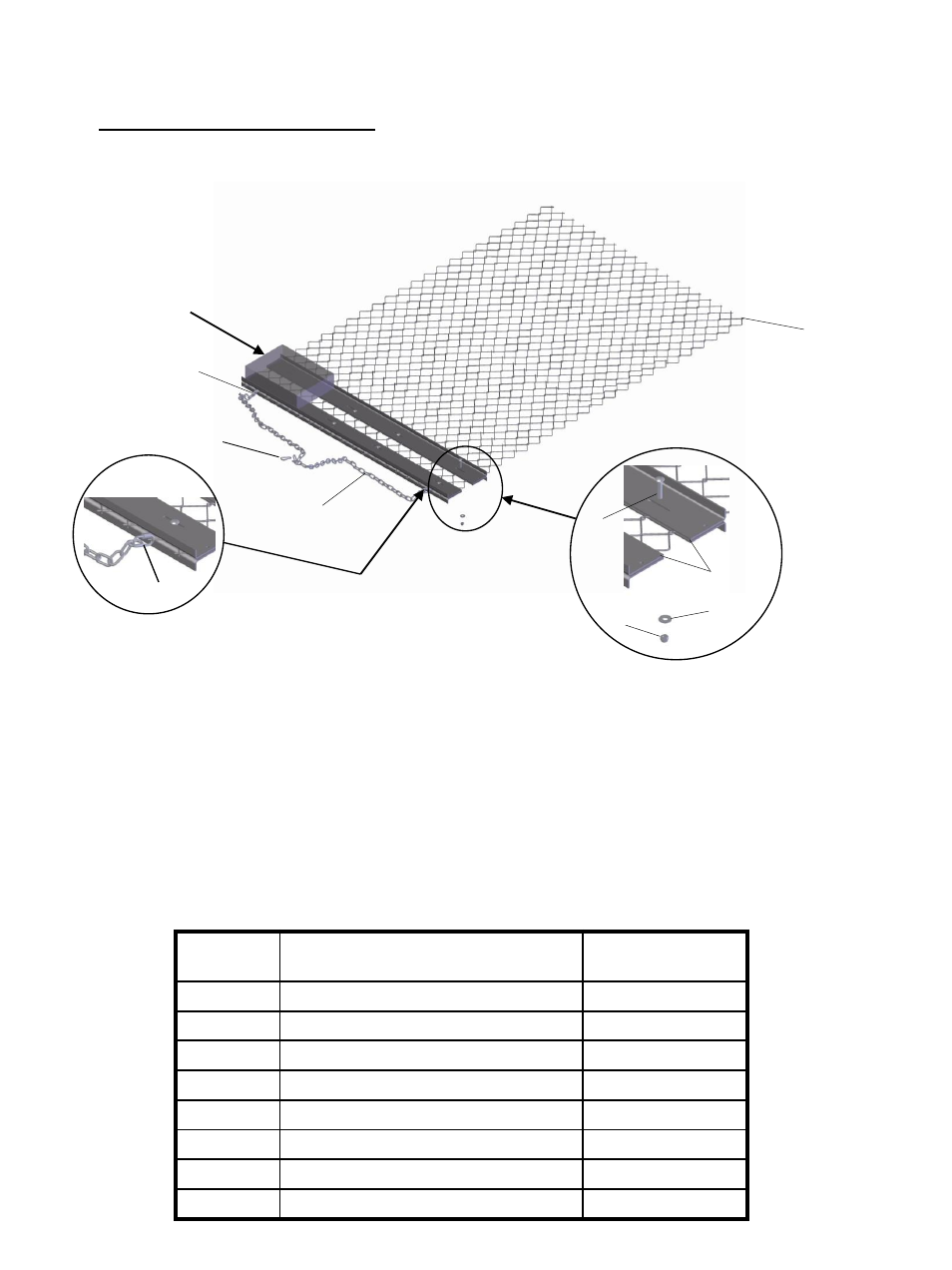

DRAG HARROW
•
Lay harrow onto the ground and stretch out flat.
•
Rounded heads of carriage bolts on should be on the top(facing upwards)
•
Check all fasteners to ensure that they are tight.
•
Fasten item 1. quick link onto chain at any desired position to pull
harrow straight or at angles.
•
Additional weight may be added to unit by placing 8’’concrete
blocks along front section as shown in figure above.
N.B. Hold down straps may be necessary to secure blocks into place.
•
After you have located item 1,the quick link in the desired position, hook the
link into the hole of your hitch plate
1
2
3
5
8
Item No.
Description
Qty
1
QUICK LINK
1
2
6 ‘ CHAIN
1
3
3/16’’ CHAIN CONNECTOR
2
4
HARROW PLATE
4
5
M6 NYLOCK NUT
8
6
FLAT WASHER
8
7
M6 X 35 CARRIAGE BOLT
8
8
4’ X 5’ X 9-GA. LINK FENCE
1
8’’ concrete blocks
And hold down straps
Can be purchased at most lawn & garden centres
3
6
7
4
