Note:

For proper operation, Keypad must be programmed to operate in 6-button or 8-button mode, corresponding to
whichever plate is attached. See

Configuring for 6 or 8-Button Operation

Changing to 6-Button Configuration

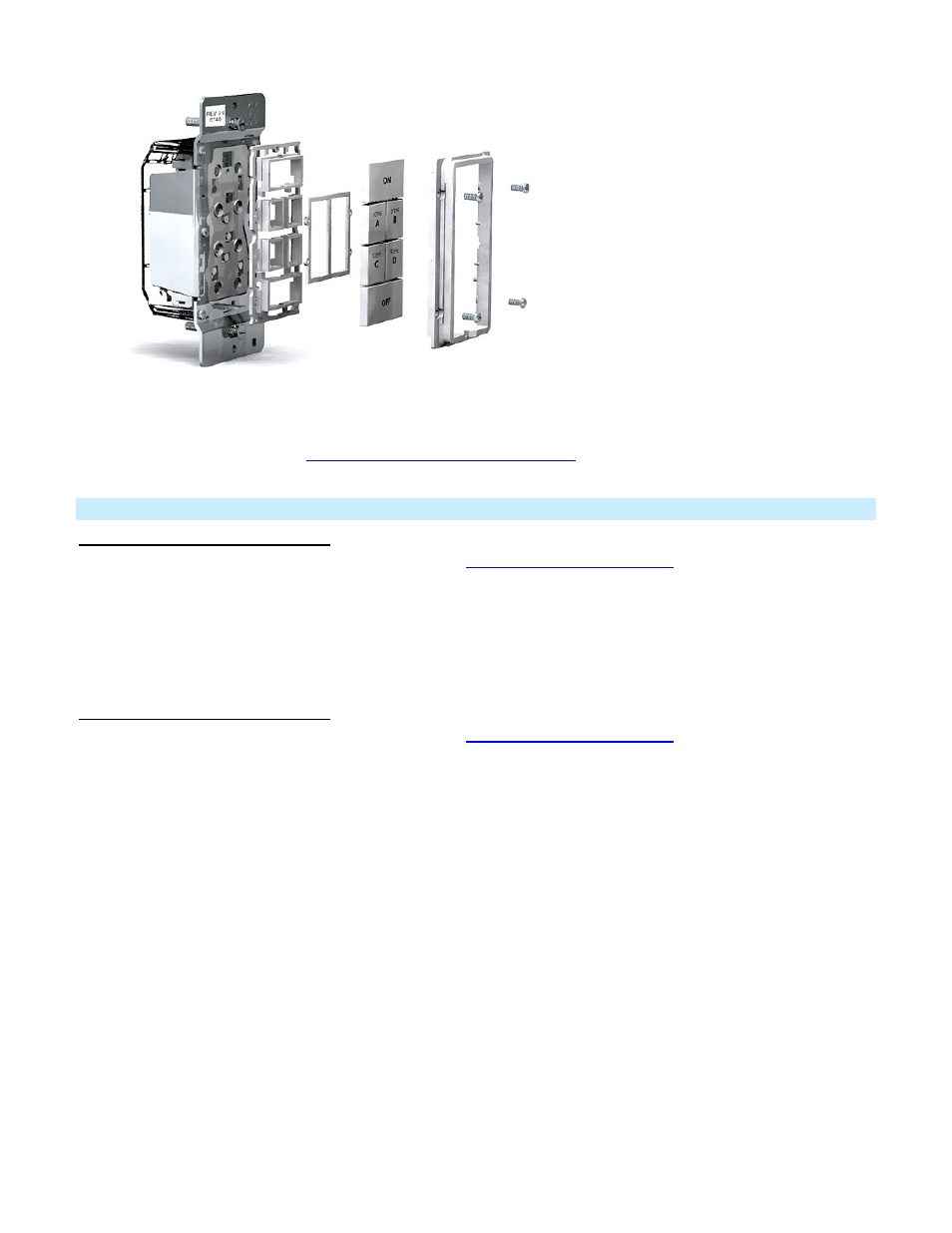

1) Replace the 8-button plate with the 6-button plate (see

2) Gently pull the set button out as far is it will go

3) Wait 10 seconds

4) While simultaneously holding the On and Off buttons, carefully push the set button back in, flush with the trim frame

5) Continue holding the On and Off button until the keypad beeps

Keypad is now in 6 button mode

Changing to 8-Button Configuration

1) Replace the 6-button plate with the 8-button plate (see

2) Gently pull the set button out as far is it will go

3) Wait 10 seconds

4) While simultaneously holding the On/Off (upper left-most) button and the H (bottom right-most) button, carefully push

the set button back in, flush with the trim frame

5) Continue holding the On/Off (upper left-most) button and the H (bottom right-most) button until the keypad beeps

Keypad is now in 8 button mode
