About SwitchLinc On/Off Dual-Band
Features and Benefits
• Controls virtually all load types
• Can be remotely controlled from any INSTEON controller
• 100-277VAC capable (can be used to control 277V commercial lighting circuits)
• 17A resistive capacity (100-277VAC)
• 1,800 Watt incandescent capacity (100-277VAC)
• 1 HP motor (at 120VAC only)
• 10A ballast (100-277VAC)
• 50/60 Hz electricity automatically detected
• Beeper and dual-color LED for easy setup and linking.
• Dimmable status LED acts as a nightlight when switch is off
• Responds to and sends X10 commands
• Wires in like a standard wall switch (neutral connection required)
• Supports SwitchLinc wireless 3-way and 4-way circuits
• Two-year warranty
What’s in the Box?
In the Box Tools Needed Optional Accessories
SwitchLinc On/Off Slotted and Phillips screwdrivers INSTEON app
Quick Start Guide Wire cutter/stripper SmartLinc Hub
2 screws and 4 wire nuts Voltage meter

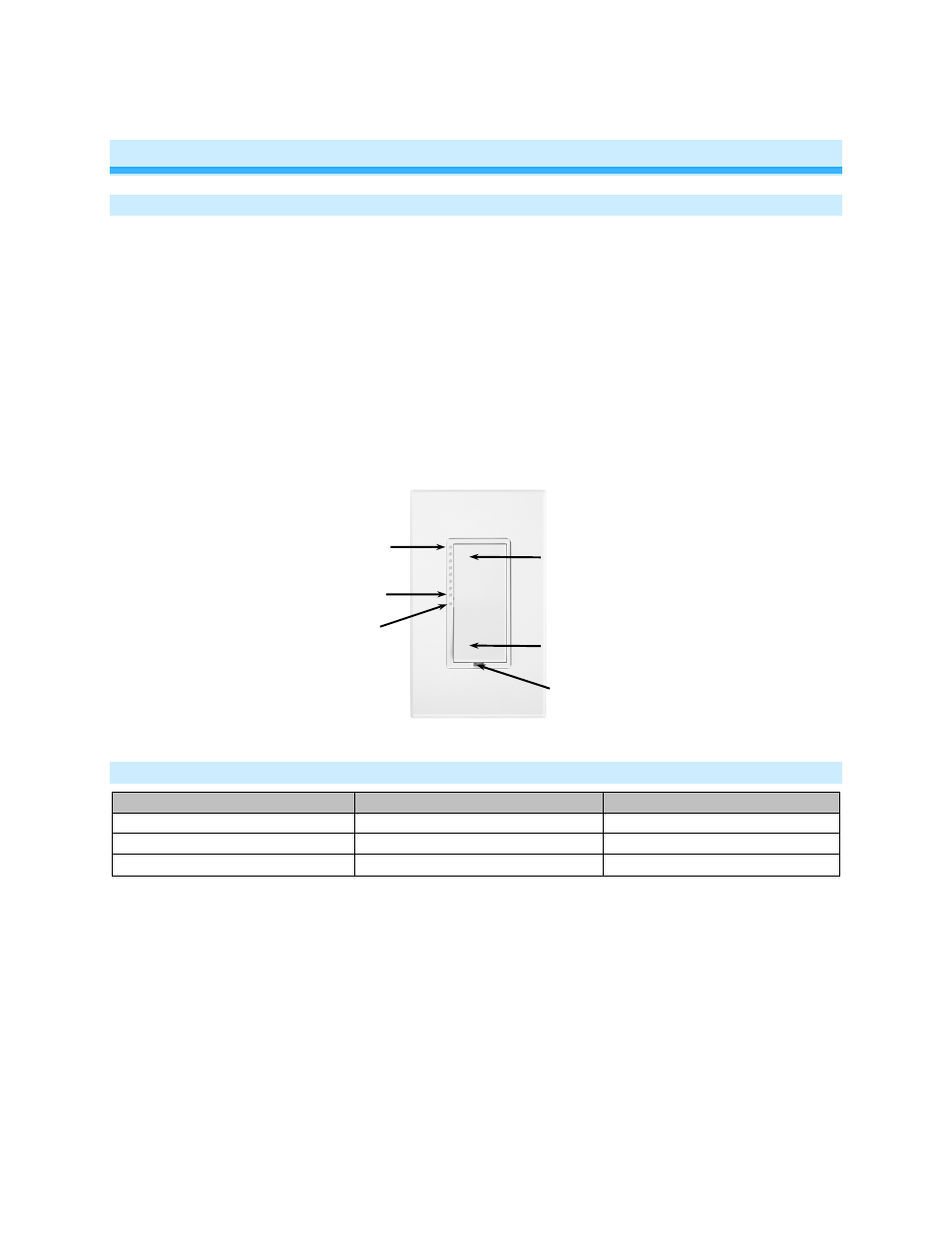

Setup LED
Set button (push)
Air Gap (pull out)
On LED
Tap for On
Tap for Off
Off LED
