Eclipse Wireless Communication System
1 - 1 1

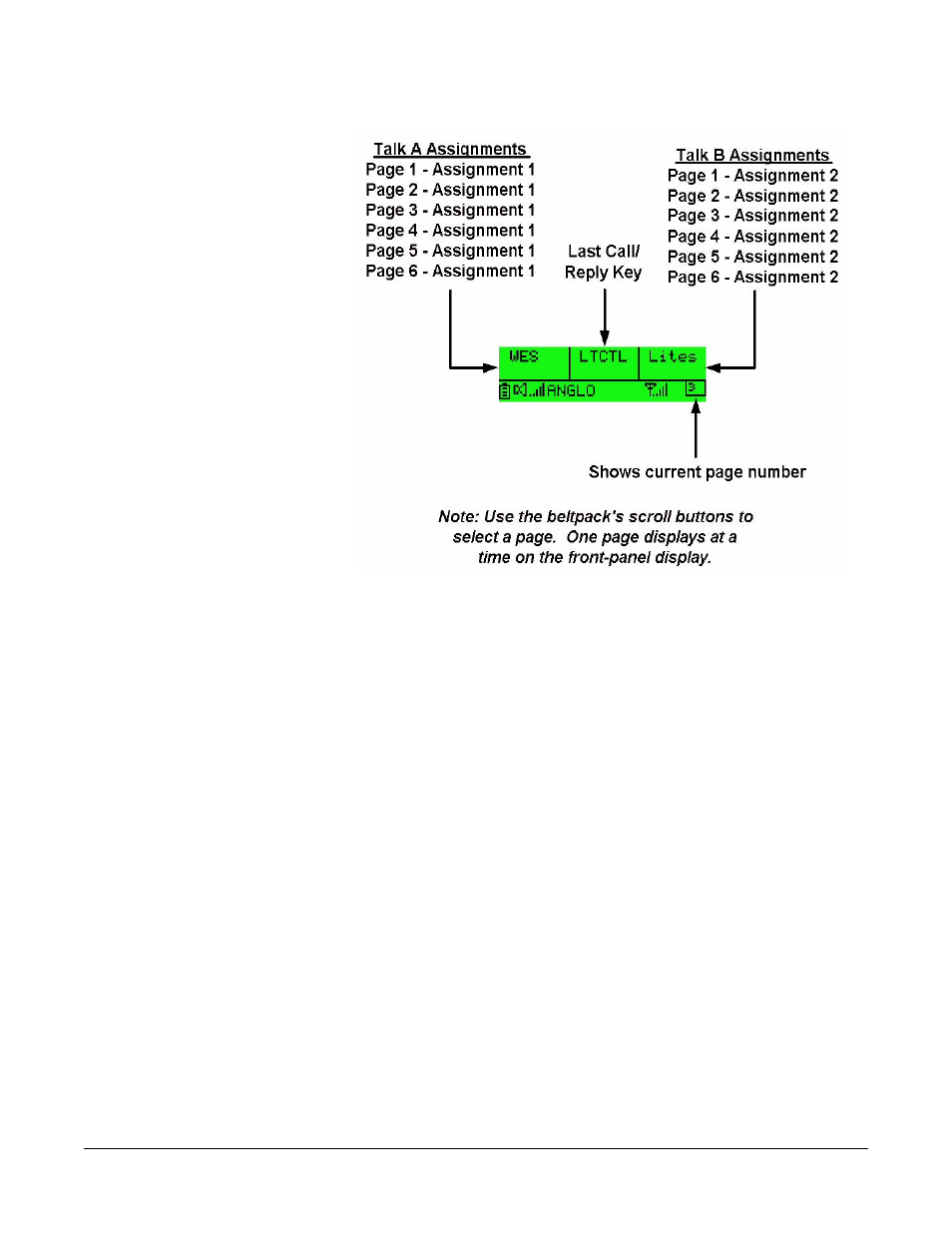

Figure 1-8: How the beltpack displays its six communication routes
The case of a label on the beltpack indicates its assignment type:
• All uppercase - Talk
• First letter in uppercase, rest lowercase - DTL
• All lowercase - Listen
To activate a talk or listen to an assigned source or destination
(“label”):
1. Use the beltpack’s scroll buttons to scroll to the page on which the
desired assignment (“label”) appears. The beltpack holds six pages
of assignments. Each page displays two assignments.
As you scroll, you will hear “beeps” in the headset that correspond to
the page displaying on the beltpack: 1 beep for page 1, 2 beeps for
page 2, etc.
2. When you reach the appropriate page, select one or both of the
assignments on that page by depressing the corresponding talk
buttons on the beltpack (A or B).
3. Press and hold the appropriate talk button to talk or listen to the
destination. Release the button to close the talk or listen path.
Alternatively, you can quickly tap the talk button to latch it “on.”
Quickly tap it again to release the latch.
4. To activate another communication route, repeat steps 1 through 6.
You can keep all six communication routes “open” at the same time.
You will hear all activity on these routes in your headset.
