BELTPACK FRONT/DISPLAY SECTION

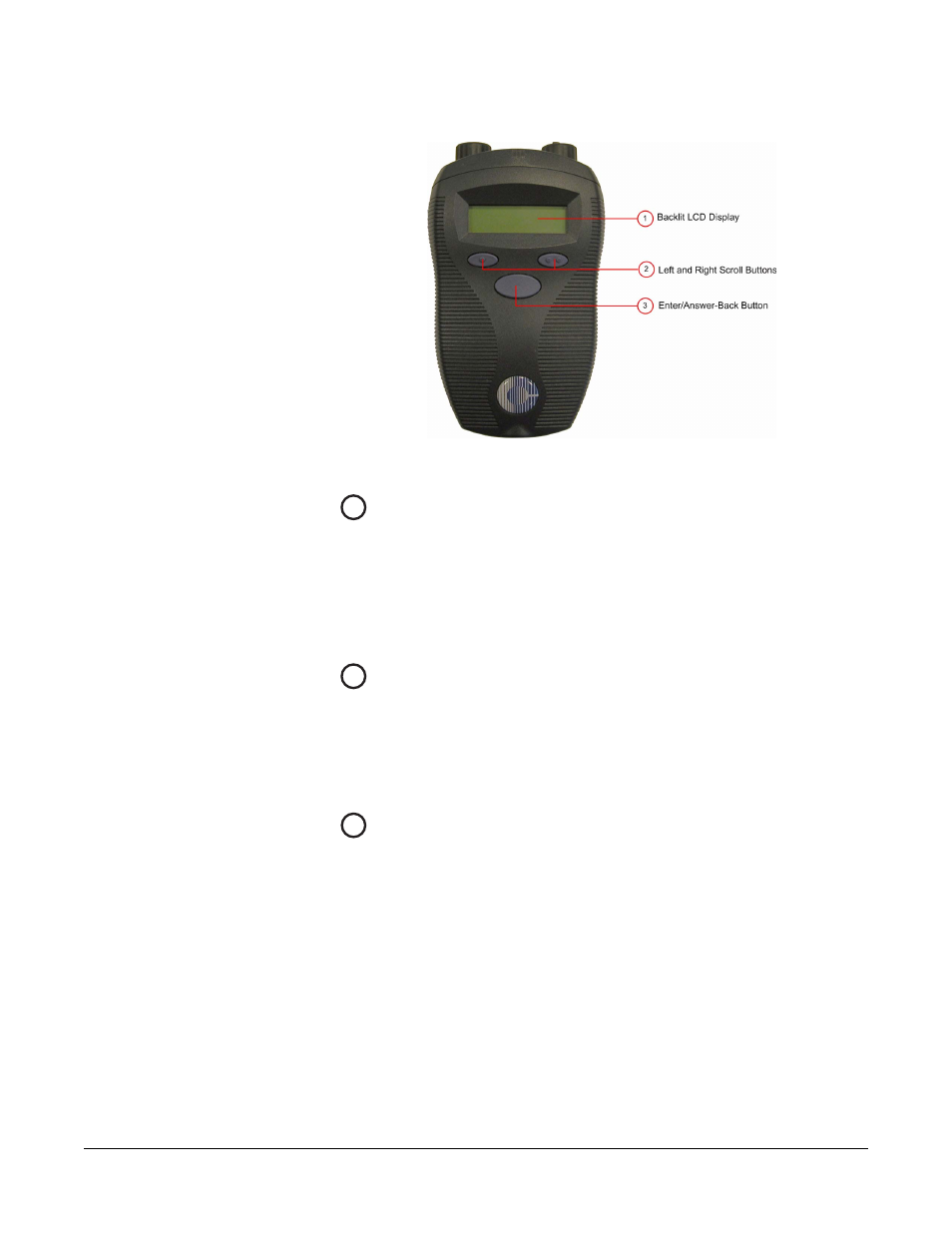

Figure 1-4: View of Front of Beltpack
Backlit LCD Display
The display screen shows the various communications routes and
other information relevant to the beltpack. The backlighting comes on
when any action is taken with the scroll or enter buttons, and remains
on for approximately 10 seconds. During the answer-back process, the
label of the source is displayed in the lower center of the display.
Left and Right Scroll Buttons
When you press the left and right scroll buttons, the beltpack’s display
screen scrolls to the left or right, displaying “pages” of information, and
menu options on those pages. These buttons work in conjunction with
the enter button, described below.
Enter/Answer-Back Button
The enter/answer-back button has two primary purposes. When you
view the menus on the beltpack’s display screen, you can select an
option by pressing this button and you can exit a menu by selecting the
up-arrow icon. In this way, the button serves as an enter key.
During normal beltpack operation it functions as the answer-back key,
with which you can activate a talk to an unassigned source when the
answer-back “talk” light illuminates to indicate an incoming call (see
description in “Beltpack Top Control Section” above).
