ITEM NO. DESCRIPTION
1
Body
Sub-Assembly
2
Bonnet
3
Plug
Head
4
Plug Retainer Strip
5
Packing Gland Nut
6
Packing
7
Belleville Spring Washer
8
Bellows
Sub-Assembly
ITEM
NO.
DESCRIPTION
9
Stem
Sub-Assembly
10
Spacer
11
Bonnet
Gasket
12
Vented Pipe Plug
13
Lockwasher
14
Bonnet Cap Screw
15
Yoke
nut
18
Rating
Tag
19
Bonnet
Spacer
20
Jam
Nut
Not
Shown
17
ANSI/DIN Adapter Gasket
43
Upper knuckle See Fig. 6
44
Lower knuckle See Fig. 6
51
Indicating Washer See Fig. 6
Note: End fl ange
tapped bolt holes
straddle horizontal and
vertical centerlines.

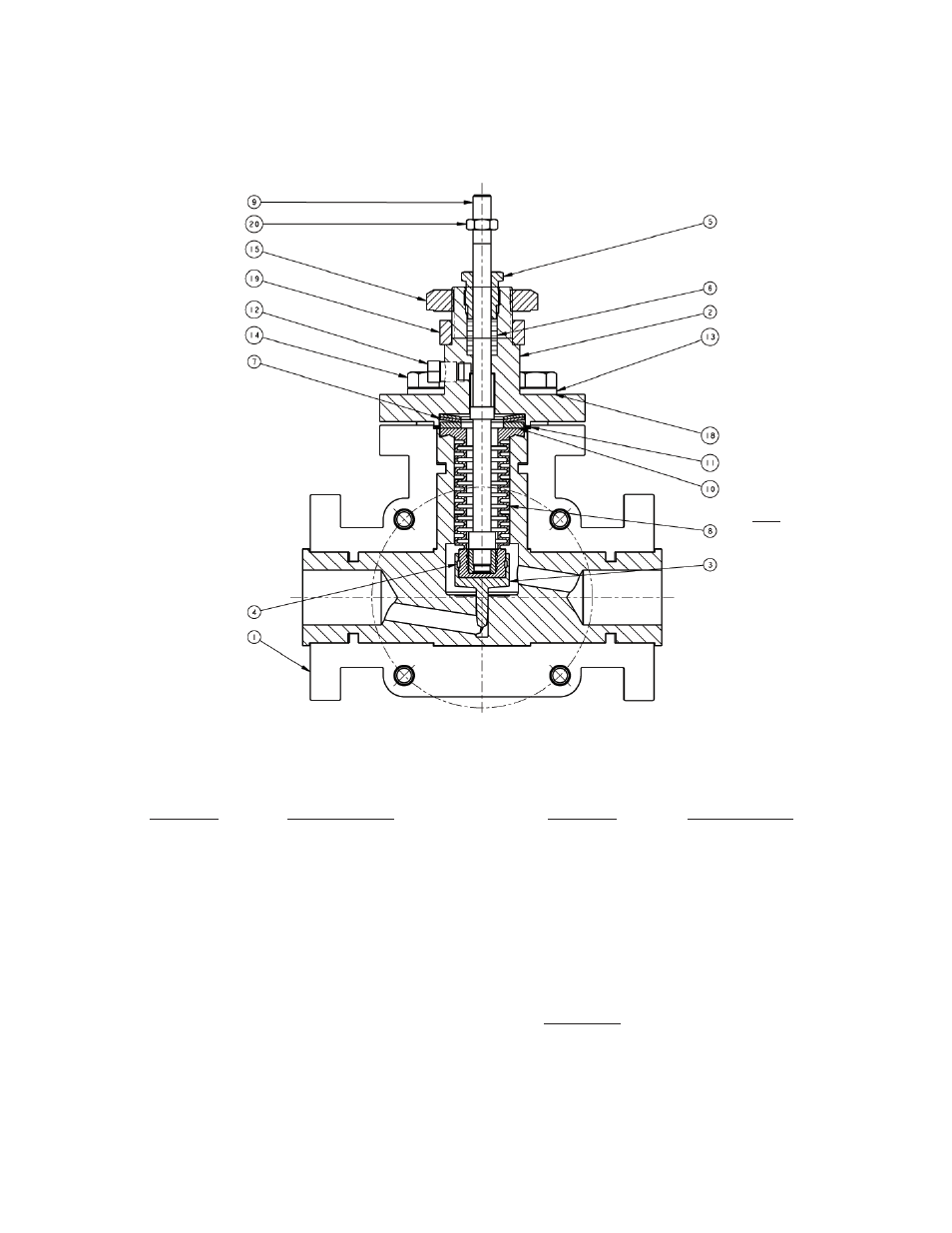

Figure 11: Body Assembly (BA)
