Cashco SA1 - Manual (Page 12)

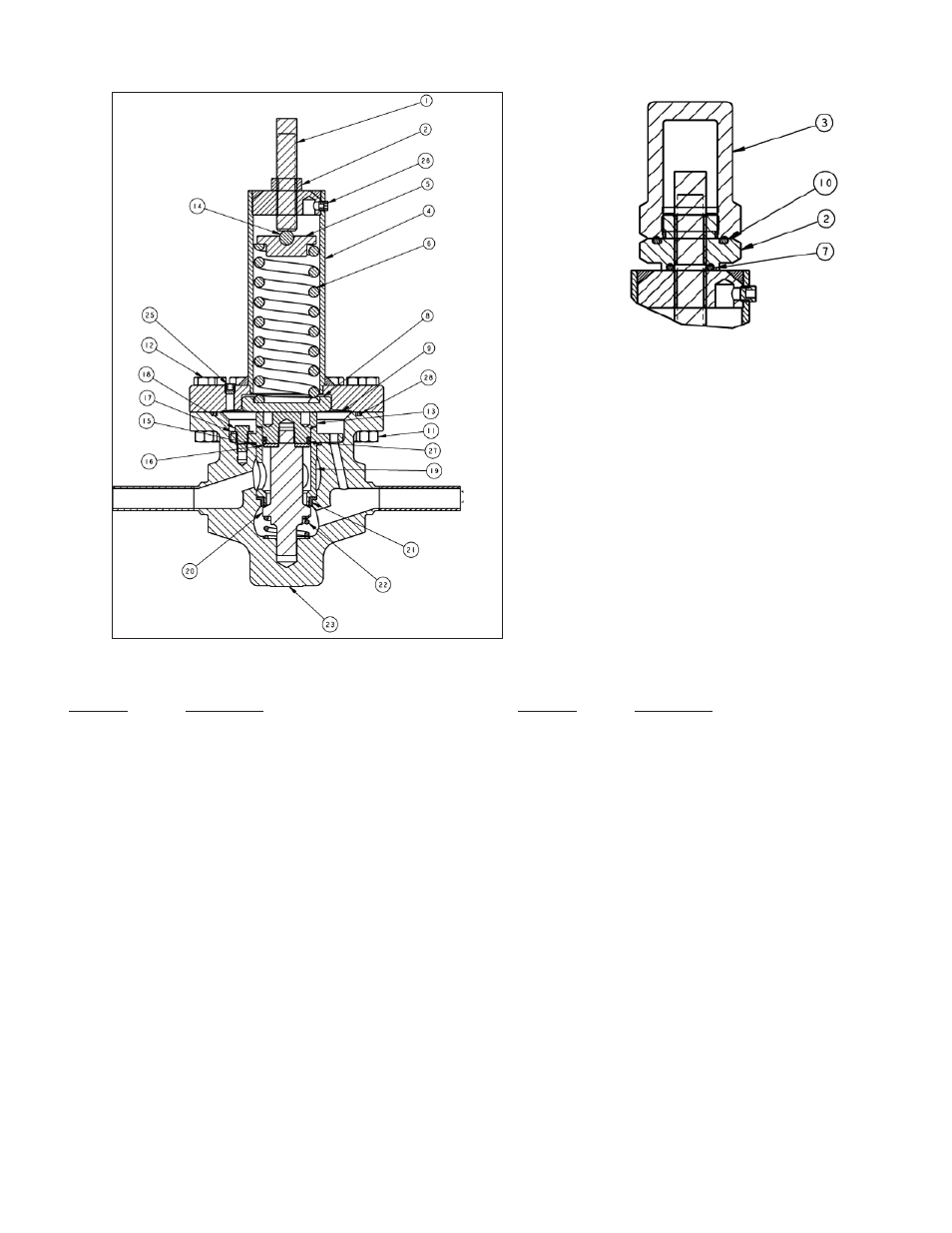

Figure 3:
Model CA1/SA1
Item No. Description
1 Adjusting Screw
2 Adjusting Screw Lock Nut
3 Closing Cap
4 Spring Chamber
5 Spring Follower
6 Range Spring
7 Nut Seal
8 Upper Diaphragm Plate
9 * Diaphragm
10 Closing Cap Seal
11 Flange Bolt Nuts
12 Flange Bolt
13 ‡ Piston-Guide Bearing
14 Ball
15
*
Cage O-ring Seal
16 Shim
17 Cage Washer
18 Cage Cap Screw
19 Cage
20 Valve Plug
21
* Seat
Ring
22 Return Spring
23 Body
27 * Dynamic Side Seal
27.1 * Cap Seal
27.2 * O-ring Energizer
27.3 * U-Cup Seal w/ Metal Energizer
28 * Diaphragm Seal
* Recommended Repair Parts
‡ It is recommended that a special double-posted spanner
wrench fi tting be ordered for use in the main te nance of
the ITA. To order, see NOTE in Section IX, Parts Order-
ing Information.
