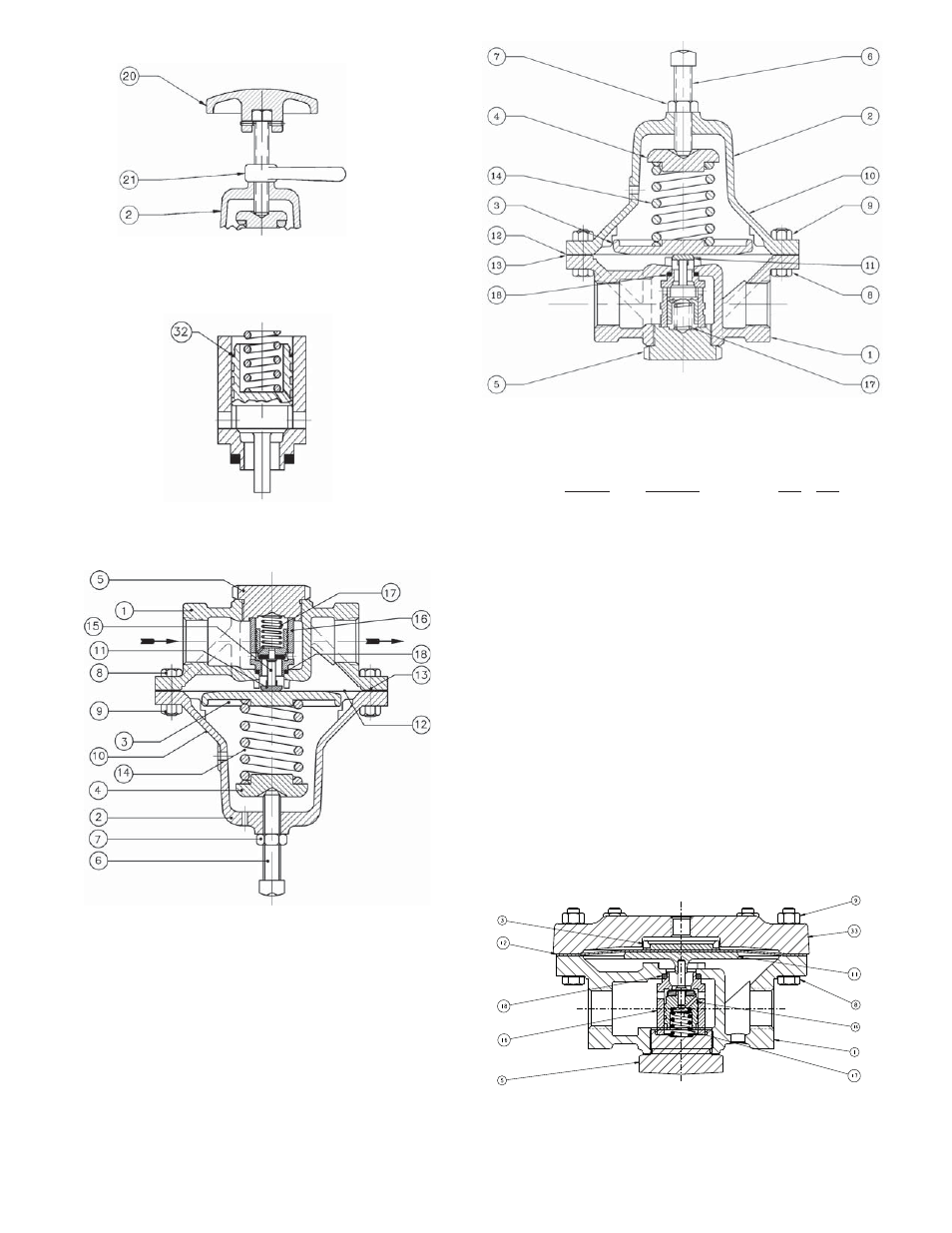

Figure 2: Basic Model D - Comp Diaphragm
Figure 1: Option D-3 or DL-3
Handwheel and Locking Lever
Figure 4: Option D-5 or D-36 Cryogenic Model D
Metal Diaphragm
NOTE: Mount in horizontal line
with adjusting screw down (as
shown).
Repair Parts
Item No.
Description
Kit A Kit B
1
Body
2
Spring
Chamber
3
Pressure
Plate
4
Spring
Button
5
Body
Cap
6
Adjusting
Screw
7
Nut (hex Jam)
8
Cap Screw (Flange Bolting)
9
Nut (Hex) (Flange Bolting)
10
Name
Plate
11
Pusher Plate
12
Diaphragm
13
Diaphragm Gasket
14
Range
Spring
15
Piston
16
Cylinder
17
Piston Spring
18
Cylinder Gasket
20
Handwheel
Assembly
21
Handwheel Locking Lever
32
Stabilizer
Seal
1
33
Loading
Chamber
Not Shown:
27
Gauge
28
Bushing
1
NOT included in kits - must order additionally.
**
* **
**
* **
**
**
**
**
*
*
Figure 3: Option-4 - Stabilizer
Figure 5: Option-20 - Pressure Loaded
