X 2
X 8

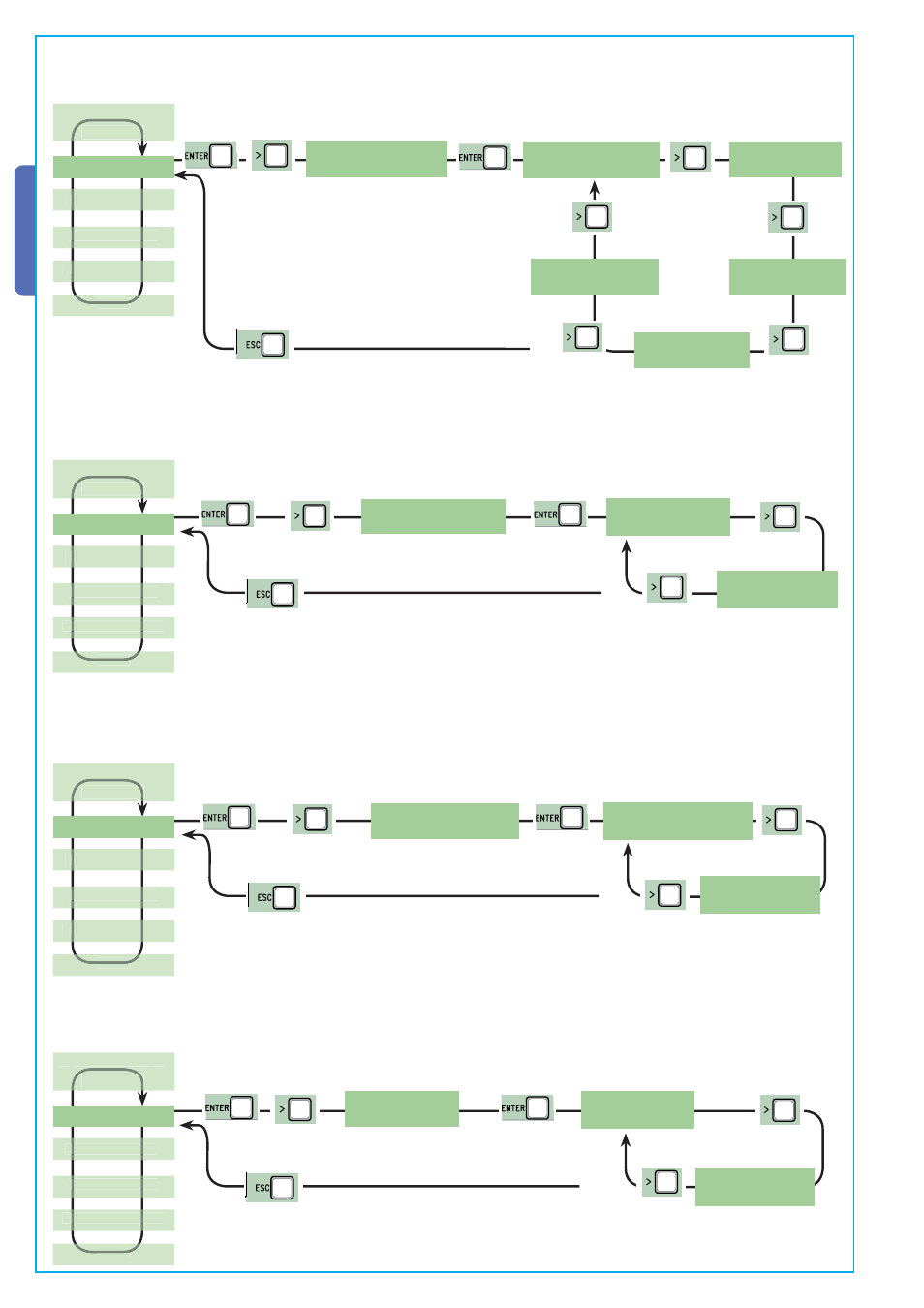

CY input: N.C. safety contact input, lets you pair up the following functions: C1 (re-opening during closing), C2 (re-closing during ope-
ning), C3 (partial stop), C4 (obstacle stall), or, deactivated
C7 input: N.C. safety contact input (re-opening when closing). This input is for EN 12978-compliant safety devices, like sensitive edges.
When the gate is closing, the open contact triggers an inversion in the gate’s movement until it is fully opened.
C8 input: N.C. safety contact input (re-closing during opening). This input is for EN 12978-compliant safety devices, like sensitive
edges. When the gate is opening, the open contact triggers an inversion in the gate’s movement until it is fully closed.
C8 Input
< OFF >
< C8 Input >
OFF
C8 Input
< ON >
STOP (1): this function stops the gate and consequently excludes any automatic closing cycle; for movement to resume, you need
to use the keypad or transmitter. Insert safety device on [1-2]; is unused, select “OFF” and confirm with ENTER.
X 2
X 6
< CY Input >
Disabled
CY Input
< Disabled >
CY Input
< C1 >
CY Input
< C2 >
CY Input
< C3 >
CY Input
< C4 >
X 2
X 7
C7 Input
< OFF >
< C7 Input >
OFF
C7 Input
< ON >
X 2
X 9
STOP (1)
< ON >
< STOP (1) >
OFF
STOP (1)
< OFF >
