12
ENGLISH
Th
e data and inf
o
rm
atio
n s
h
own in this dialogue ma
y be changed b
y C
ame C
ancelli A
utomatici S
.p
.A
. at an
y time w
itho
ut pr
io
r war
ning.

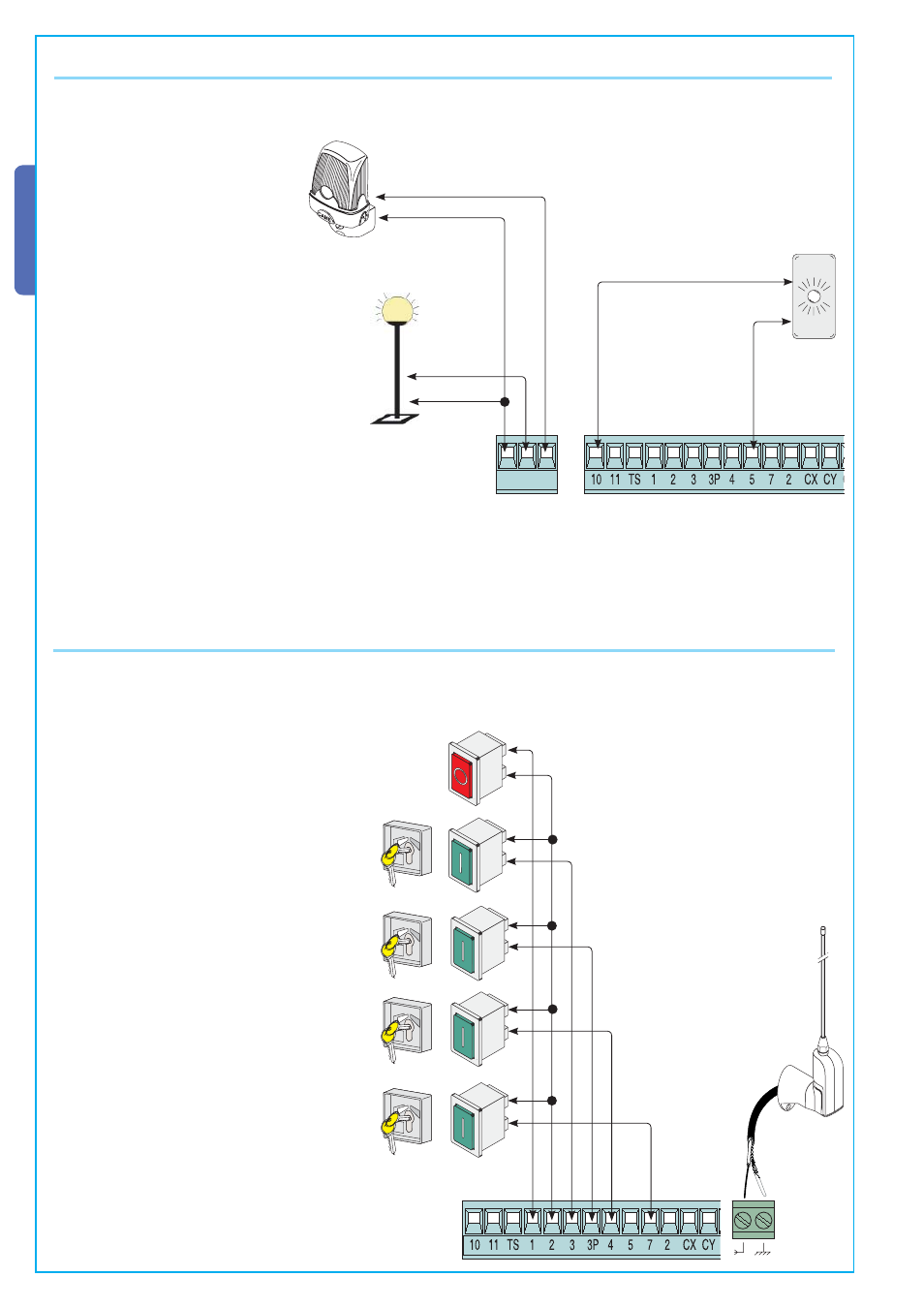

Open-gate status light
(contact range: 24V – 3W max)
- Signal that gate is open; turns off when
gate is closed.
Movement fl ashing light
(Contact range: 230V – 25W max)
- Flashes during the gate’s opening and
closing phases.
Command and control devices
Warning devices
%
Cycle lamp: (contact rating: 230V – 60W max.).
It lights up the driving area and stays on from the
moment the gate begins to open until it is fully
closed (including the automatic closing time). If au-
tomatic closing is not activated, the lamp stays on
only during movement or for a set time of 5 minutes
if used as a courtesy lamp.
Stop button (N.C. contact) - Gate stop button. Excludes automa-
tic closing. For motion to resume, press the command button or
the remote control button.
N.B.: if contact is unused, select OFF on the “FUNCTIONS” menu.
Key selector and/or opening button (N.O. contact)
- Gate opening command.
Key selector and/or commands button (N.O. con-
tact) Commands for opening and closing the gate
– pressing the button or turning the key-switch,
inverts the gate’s movement or stops it depending
on how it is set on the 2-7 command in the “FUNC-
TIONS” menu
Key selector and/or partial opening button (N.O.
contact) - Partial gate opening for pedestrian
access.
Key selector and/or closing button (N.O. contact)
- Gate closing command.
Antenna with RG58
cable for the remote
control.
