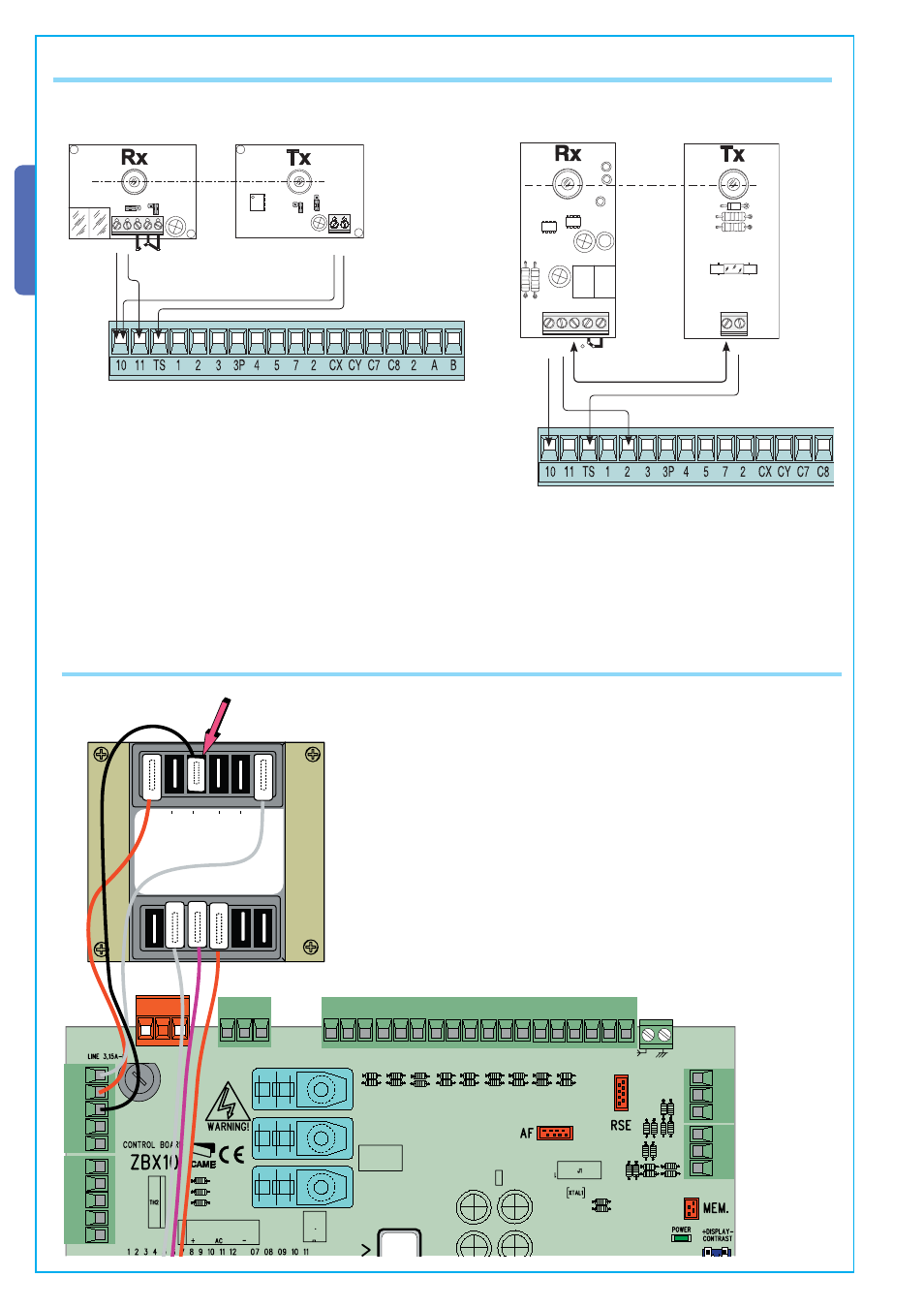

6.4 Electrical connection to operate the photocells’ safety test
4 3 2 1 ,4 ,4
,4
,4
#4
./ .# #
&53)"),%
48 48 48 # .#
(DOC) (DIR)
At each open/close command, the card check the photocells’ effi ciency.
Any problems with the photocells will cause the (PROG) Led to fl ash on the
electronic card, which cancels any commands from the radio transmitter or
push-button.
Electrical connection to operate the photocells’ safety test:
- The transmitter and receiver, must be connected as shown in the diagram;
- from the functions menu, select “safety tests” and select either CX or CY input/s to activate the test.
6.5 Motor torque limiter
To vary the motor torque, move the shown faston (the one
with the black wire) to one of the 4 positions: 1 min – 4 max.
