9
Technical data
Type 8045
Fluid pressure
• 8045 with flow sensor
in PVDF
• 8045 with flow sensor in
stainless steel
The fluid pressure may be restricted
by the fluid temperature, the material
the flow sensor is made of, the
material the S020 fitting used is made
of and the DN of the fitting used.
• PN10
• PN16
10
9
8
7
6
5
4
3
2
1
0
0 +20 +40 +60 +80
PVDF (PN10) /
PP (PN10)
P (bar)
PVC + PP
A
PVC (PN10)
T (°C)
Metal
A: range of use

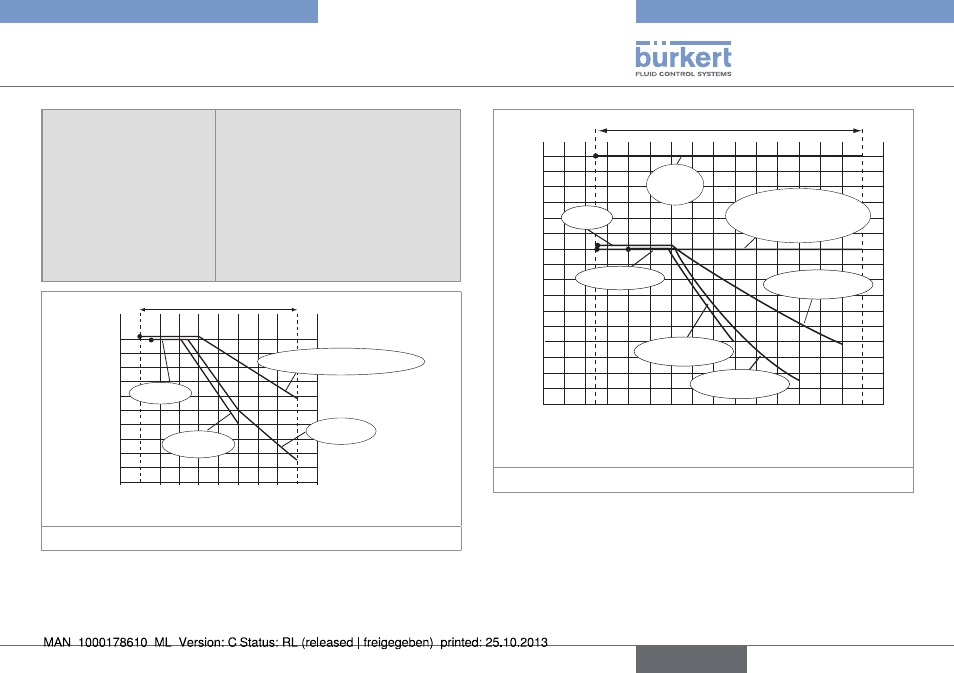

Fig. 2: Fluid pressure /temperature dependency for a 8045 with
PVDF flow sensor and a fitting S020 in metal, PVC, PVDF
or PP
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
-20 0 +20 +40 +60 +80 +100 +120
PVDF (PN10)
PVC (PN10)
PP (PN10)
T (°C)
P (bar)
PVC + PP
PVDF
A
DN100 for measuring
devices with a clamp con-
nection (PN10)
Metal
(PN16) 1)
1) Except DN100 for measuring devices with a clamp connection
A: range of use
Fig. 3: Fluid pressure /temperature dependency for a 8045 with
stainless steel flow sensor and a fitting S020 in metal,
PVC, PVDF or PP
English
